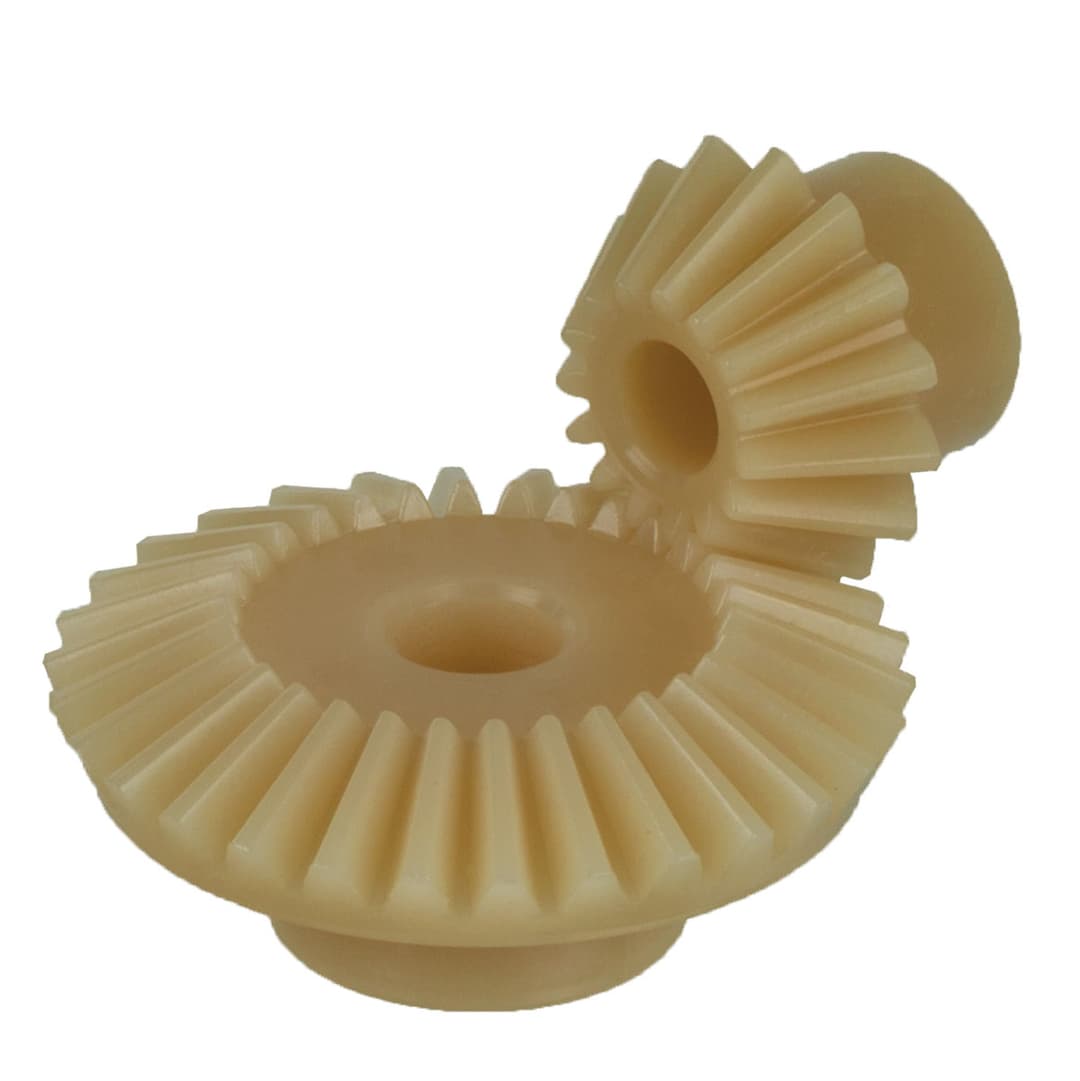

Bevel gear made of polyketone die-cast module 1.5 30 teeth i=2:1 bore 10mm
Manufacturer part no. 35575701
$6.46≈ 5.61 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €5.61 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.12 |
| Total delivered | €24.73 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

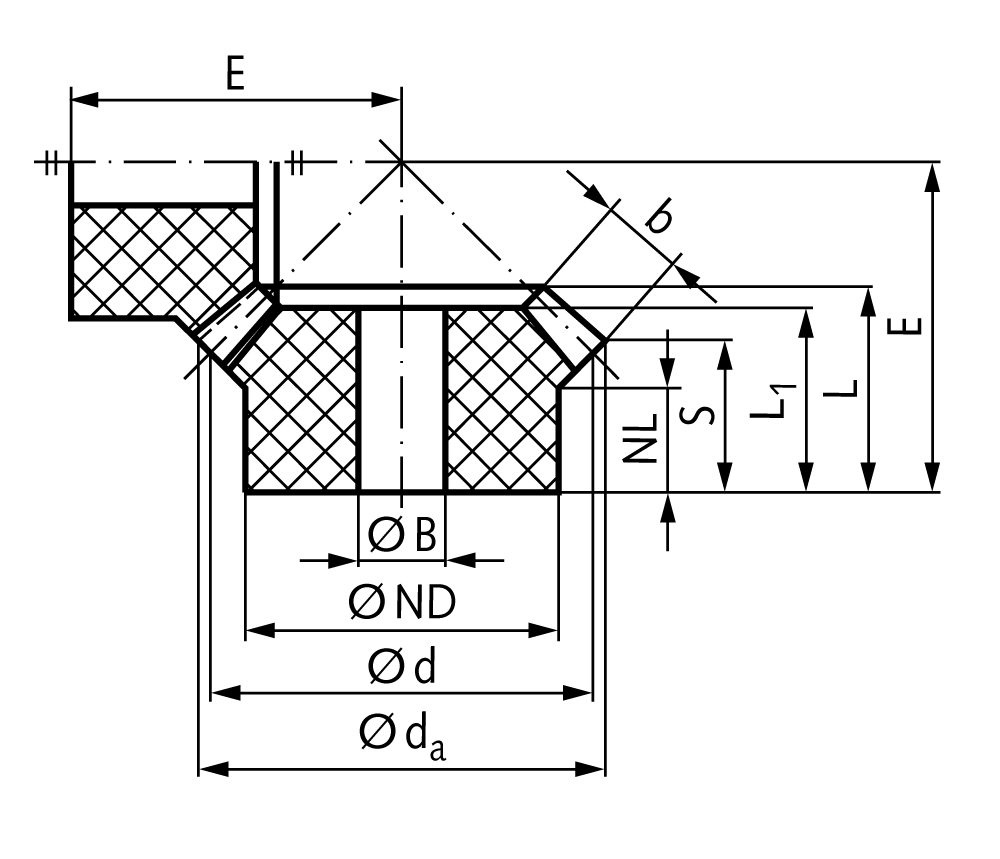

Specifications (automatically extracted)
Mechanical
| Weight | 16.2 g |
Other characteristics
| Max torque | 90 Ncm |
| Module | 1.5 |
| No of teeth | 30 |
| Optional counter wheel part no | 35 575 601 |
| Outer diameter | 46.4 mm |
| Material | Plastic die-cast (Polyacetal, up to 80°C) |
| Ratio | 2:1 (15/30) |
| Surface | Blank |
Description
Material: Polyketone resin, die-cast, ivory-colored. Shaft angle 90º. Version: injection-moulded. Bores from Module 1.5 machined. Lower friction leads to much larger lifespan, even without lubrication. Much higher safety against tooth breaking, specially at longterm usage. Temperature Range: -40°C to +140°C, due to the load. Note for ordering: The bevel gears only run as a pair at the stated ratio. These gears are sold singulary, not by pair. For a pair of bevel gears, you have to order two matching gears of the same module and ratio. At ratio 1:1, you need two pieces of the same number of teeth. At ratio uneven 1:1, you need two pieces with a different number of teeth of the same ratio.
