MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

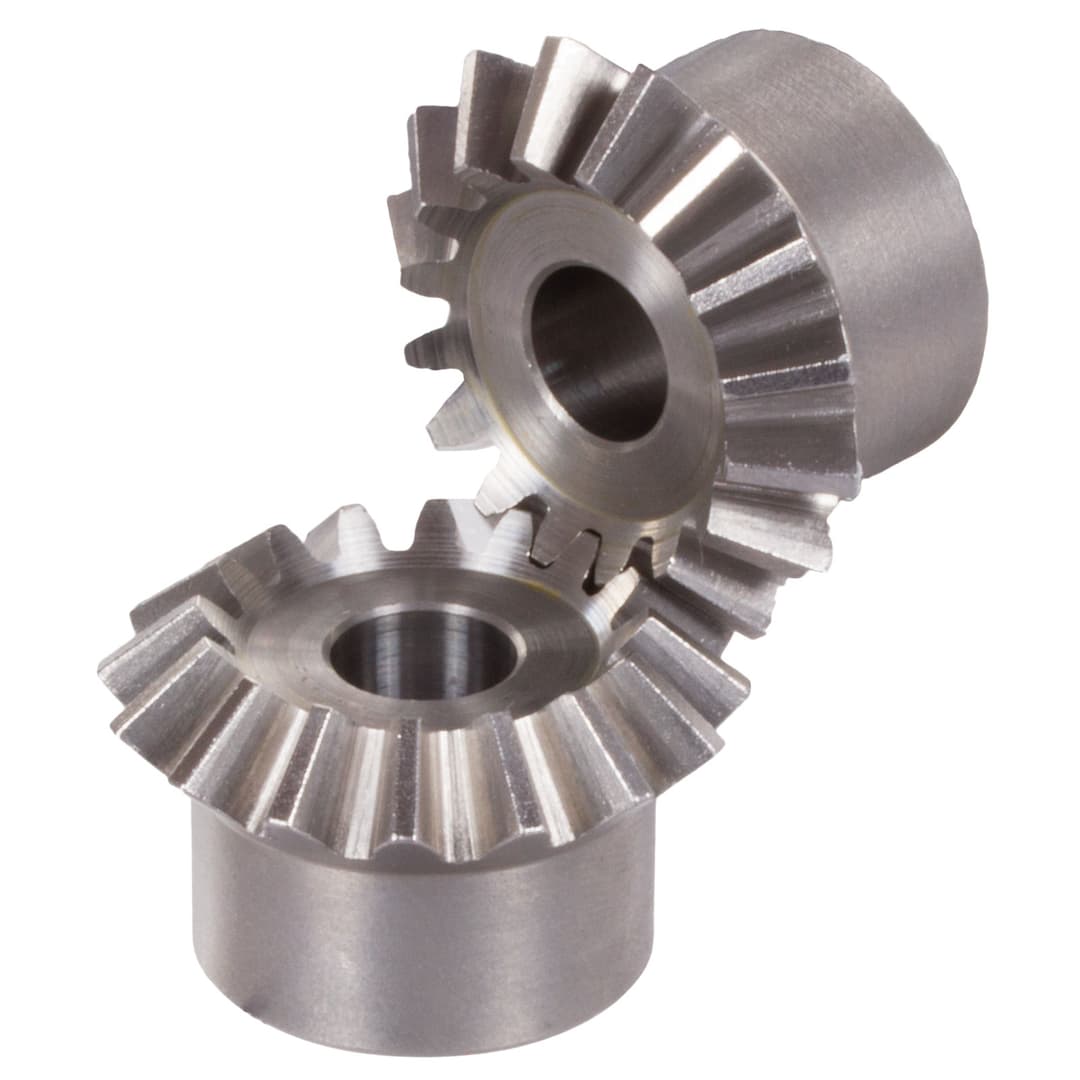

Bevel gear made of steel module 6 25 teeth i=1:1
Manufacturer part no. 36731600
$314.60≈ 273.21 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €273.21 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €57.64 |
| Total delivered | €345.85 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 3.79 kg |
Other characteristics
| Bore | 30 mm |
| Max torque | 153.4 Nm |
| Module | 6 |
| No of teeth | 25 |
| Optional counter wheel part no | 36 731 600 |
| Outer diameter | 158.5 mm |
| Tooth quality | 8 |
| Material | Steel (1045) |
| Ratio | 1:1 (25/25) |
| Surface | Blank |
Description
Material: up to module 2: 11SMn30+SH (1.0715). From module 2.5: C45. Tooth quality 8 modelled on DIN 3967 (from module 2). Up to module 5 with crowned, milled teeth. From module 6 with planed teeth. Not hardened – not lapped. Shaft angle = 90º. The bevel gears only run as a pair at the stated ratio and at the same module. Note for ordering: These gears are sold singulary, not by pair. For a pair of bevel gears, you have to order two matching gears, with the same module and the same number of teeth.
