Bevel gearbox KEK version B size 1 ratio 1:1 shaft diameter 6mm housing length 32mm
Manufacturer part no. 41000201
$245.78≈ 212.94 €
Price summary
Listed by MÄDLER at €212.94. Delivered to France, including shipping, VAT and any customs duty, it comes to about €273.53. Prices last checked on 2026-08-07.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €212.94 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €45.59 |
| Total delivered | €273.53 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 3.569 kg·cm |
| Weight | 60 g |

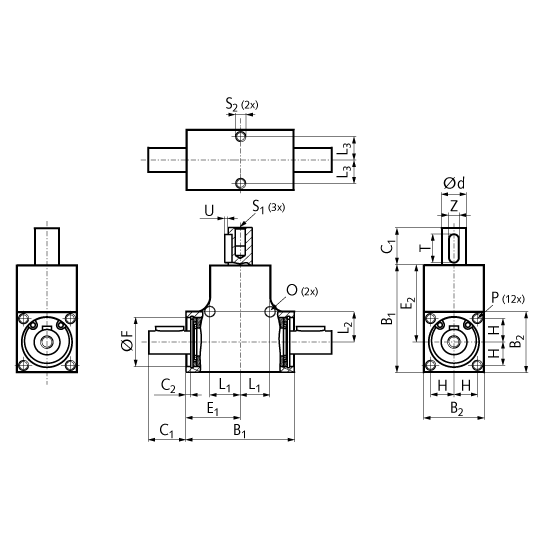

Other characteristics
| B1 | 32 mm |
| B2 | 18 mm |
| C1 | 12 mm |
| Drive power ati 100min 1 | 3.7 W |
| E1 | 16 mm |
| E2 | 23 mm |
| Shaft d | 6 mm |
| Size | 1 |
| Transmission | 1:1 |
| Z | 2* |
Description
Angular drives with high torques at very low dimensions. Suitable in a wide variety of applications 8 Sizes. Ratio 1:1. Housing: Aluminium, silver anodized. Sealed against lubricant leaks, protected against dust. Can be mounted in any position. Gearing: Bevel gears from steel, surface hardened. Bearing: Ball bearings with rubber seal RS. Lubrication: Maintenance free grease lubrication. Angular backlash: 3°+/-1°. Operating time: 20% at 5 min. Life time: 1,000 hours at max. performance at speed 500 min-1 and operating time 20%. Permiss. operating temperature: -20° to +60°C. * At shaft diameter 6 mm, 8 mm and 10 mm, the key size is not like DIN 6885.
