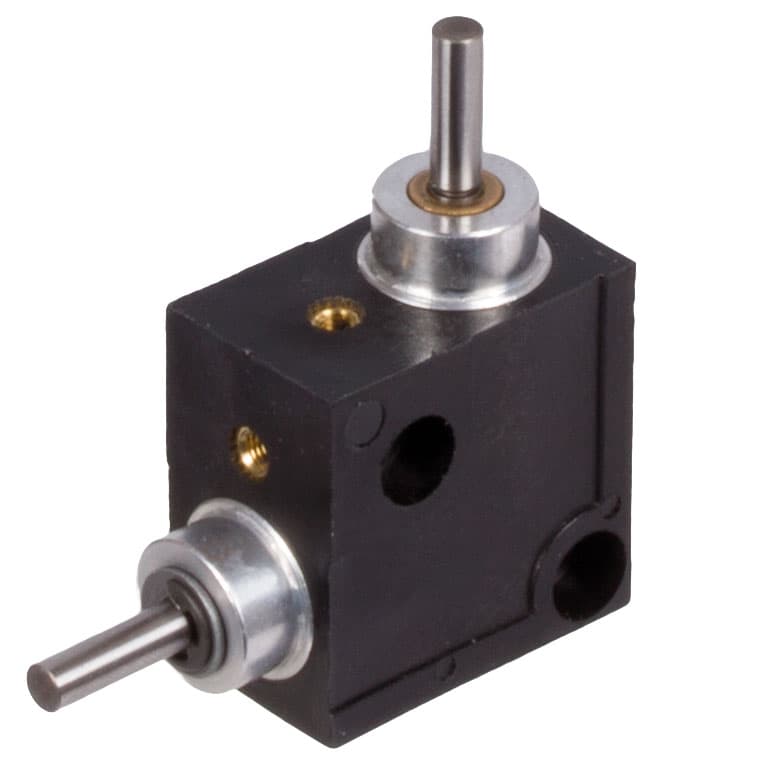

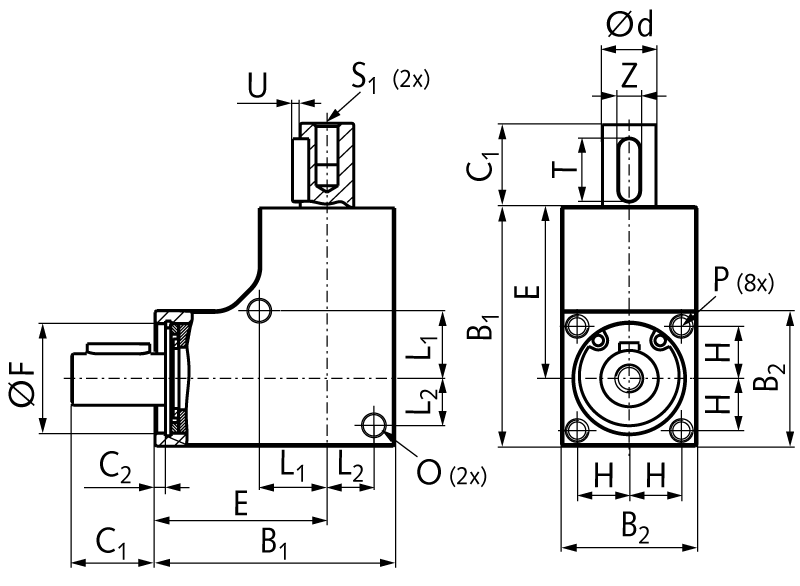

Bevel gearbox KEK version A size 1 ratio 1:1 shaft diameter 6mm housing length 32mm
Manufacturer part no. 41000101
$169.11≈ 150.65 €
Price summary
Listed by MÄDLER at €150.65. Delivered to France, including shipping, VAT and any customs duty, it comes to about €198.78. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 9 unitslead time 14 d
Estimated landed cost
| Item | €150.65 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €33.13 |
| Total delivered | €198.78 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Price history
3 price/stock records since 8/4/2026
Specifications (automatically extracted)
Mechanical
| Torque | 3.569 kg·cm |
| Weight | 52 g |
Other characteristics
| Drive power at 100min 1 | 3.7 W |
| Shaftdiameter | 6 mm |
| Size | 1 |
| Ratio | 1 : 1 |
| Width of key | 2* mm |
Description
Angular drives with high torques at very low dimensions. Suitable in a wide variety of applications 7 Sizes. Ratio 1:1. Housing: Aluminium, silver anodized. Sealed against lubricant leaks, protected against dust. Can be mounted in any position. Gearing: Bevel gears from steel, surface hardened. Bearing: Ball bearings with rubber seal RS. Lubrication: Maintenance free grease lubrication. Angular backlash: 3°+/-1°. Operating time: 20% at 5 min. Life time: 1,000 hours at max. performance at speed 500 min-1and operating time 20%. Permiss. operating temperature: -20° to +60°C. * At shaft diameter 6 mm and 10 mm, the key size is not like DIN 6885.
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
MÄDLERIn stock

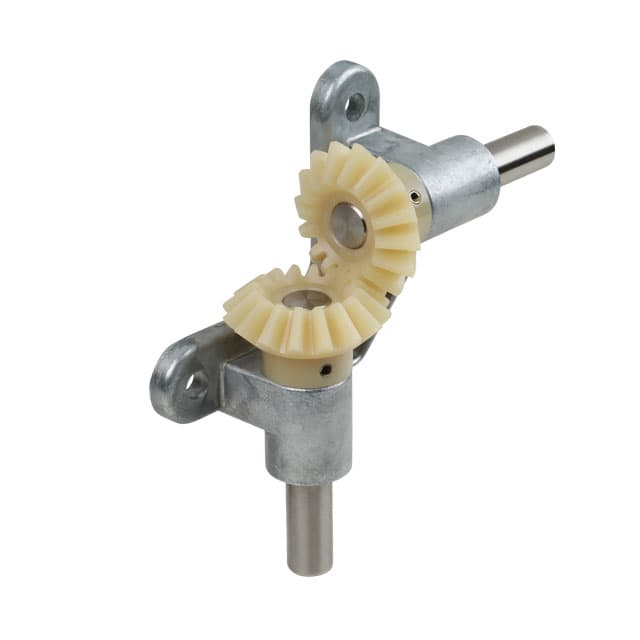

Open angular drive OW2 with polyketone bevel gears stainless steel shafts Ø 5mm module 1 16 teeth 1:1 version 10
