MÄDLERMÄDLER· Motors & actuators

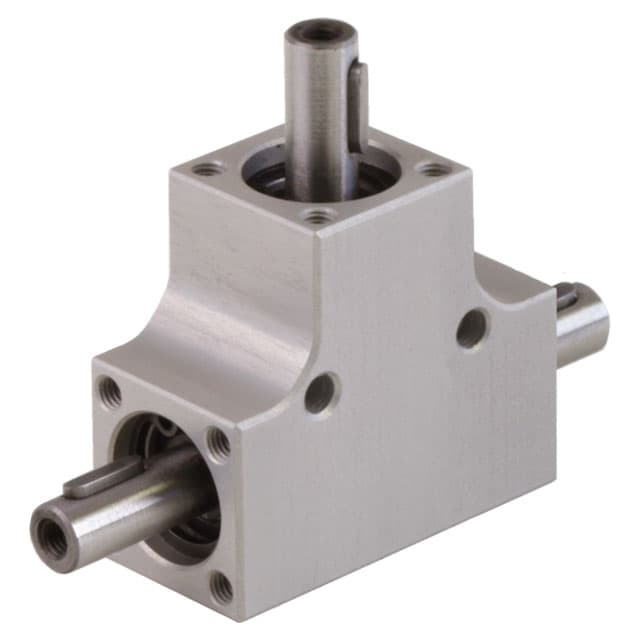

Bevel gearbox KEK version A size 0 ratio 1:1 shaft diameter 4mm housing length 26mm
Manufacturer part no.
Manufacturer part no.
Listed by MÄDLER at €144.52. Delivered to France, including shipping, VAT and any customs duty, it comes to about €191.42. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €144.52 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €31.90 |
| Total delivered | €191.42 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Torque | 2.855 kg·cm |
| Weight | 29 g |
| B1 | 26 mm |
| B2 | 15 mm |
| C1 | 10 mm |
| Drive power ati 100min 1 | 2.96 W |
| E | 18.5 mm |
| Shaft d | 4 mm |
| Size | 0 |
| Transmission | 1:1 |
| Z | – |
Angular drives with high torques at very low dimensions. Suitable in a wide variety of applications 7 Sizes. Ratio 1:1. Housing: Aluminium, silver anodized. Sealed against lubricant leaks, protected against dust. Can be mounted in any position. Gearing: Bevel gears from steel, surface hardened. Bearing: Ball bearings with rubber seal RS. Lubrication: Maintenance free grease lubrication. Angular backlash: 3°+/-1°. Operating time: 20% at 5 min. Life time: 1,000 hours at max. performance at speed 500 min-1and operating time 20%. Permiss. operating temperature: -20° to +60°C. * At shaft diameter 6 mm and 10 mm, the key size is not like DIN 6885.
