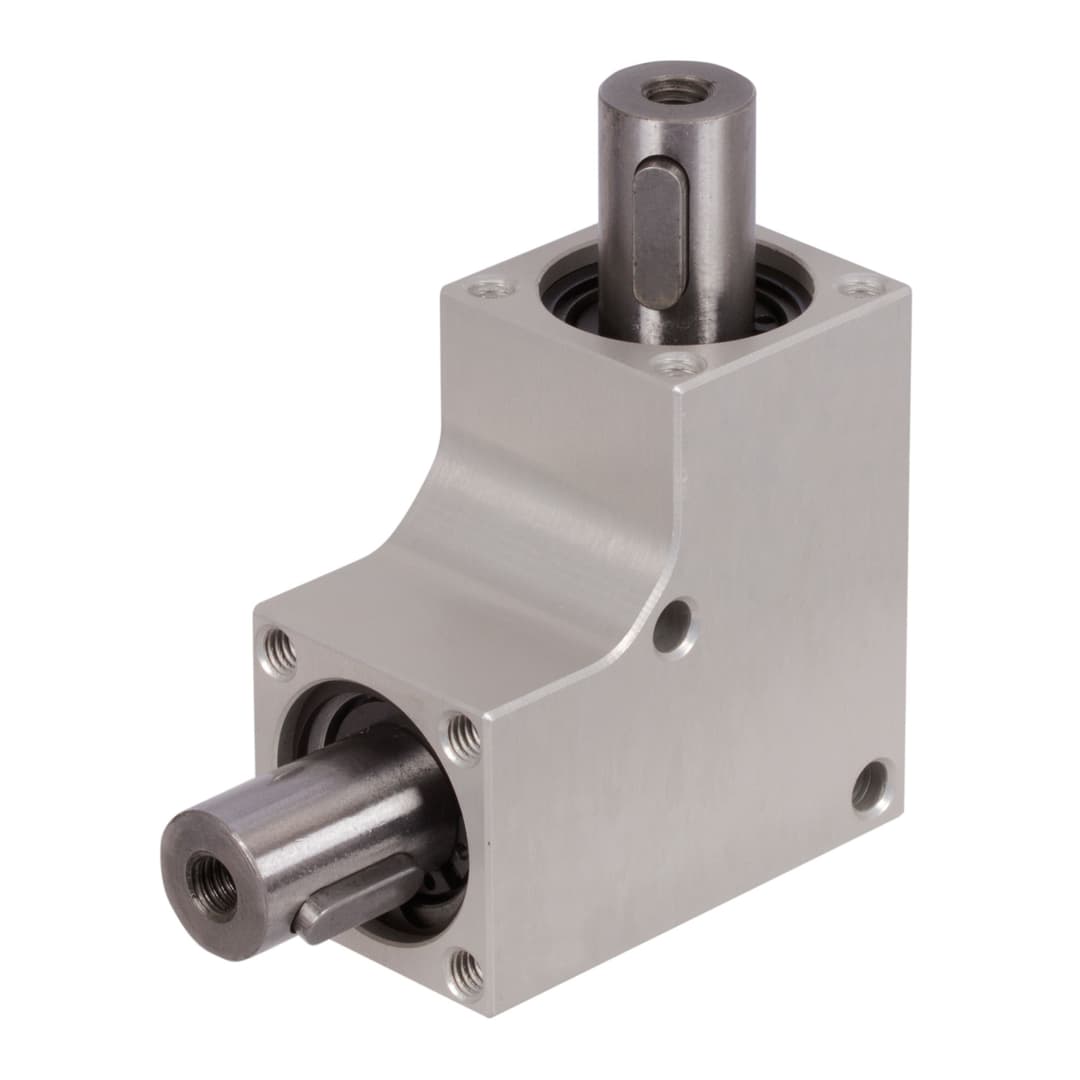

Bevel gearbox KEK version A size 4 ratio 1:1 shaft diameter 12mm housing length 46mm
Manufacturer part no. 41000104
$185.10≈ 164.90 €
Price summary
Listed by MÄDLER at €164.90. Delivered to France, including shipping, VAT and any customs duty, it comes to about €215.88. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 8 unitslead time 14 d
Estimated landed cost
| Item | €164.90 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €35.98 |
| Total delivered | €215.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 40.788 kg·cm |
| Weight | 149 g |
Other characteristics
| Drive power at 100min 1 | 41.9 W |
| Shaftdiameter | 12 mm |
| Size | 4 |
| Width of key | 4 mm |
| Ratio | 1 : 1 |
Description
Angular drives with high torques at very low dimensions. Suitable in a wide variety of applications 7 Sizes. Ratio 1:1. Housing: Aluminium, silver anodized. Sealed against lubricant leaks, protected against dust. Can be mounted in any position. Gearing: Bevel gears from steel, surface hardened. Bearing: Ball bearings with rubber seal RS. Lubrication: Maintenance free grease lubrication. Angular backlash: 3°+/-1°. Operating time: 20% at 5 min. Life time: 1,000 hours at max. performance at speed 500 min-1and operating time 20%. Permiss. operating temperature: -20° to +60°C. * At shaft diameter 6 mm and 10 mm, the key size is not like DIN 6885.
