MÄDLERMÄDLER· Mechanics & transmission
Manufacturer part no. 41035610
Listed by MÄDLER at €47.63. Delivered to France, including shipping, VAT and any customs duty, it comes to about €75.16. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €47.63 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.53 |
| Total delivered | €75.16 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 60 g |
| Max torque | 8.7 Ncm |
| Module | 1 |
| No of teeth | 16/16 |

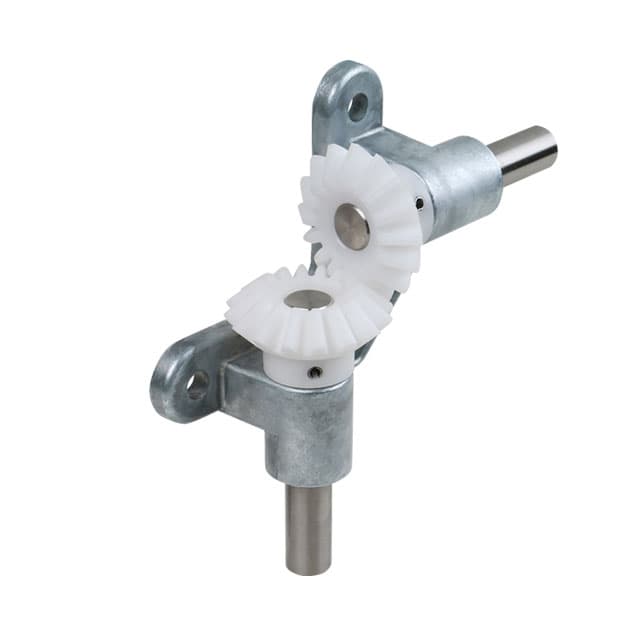

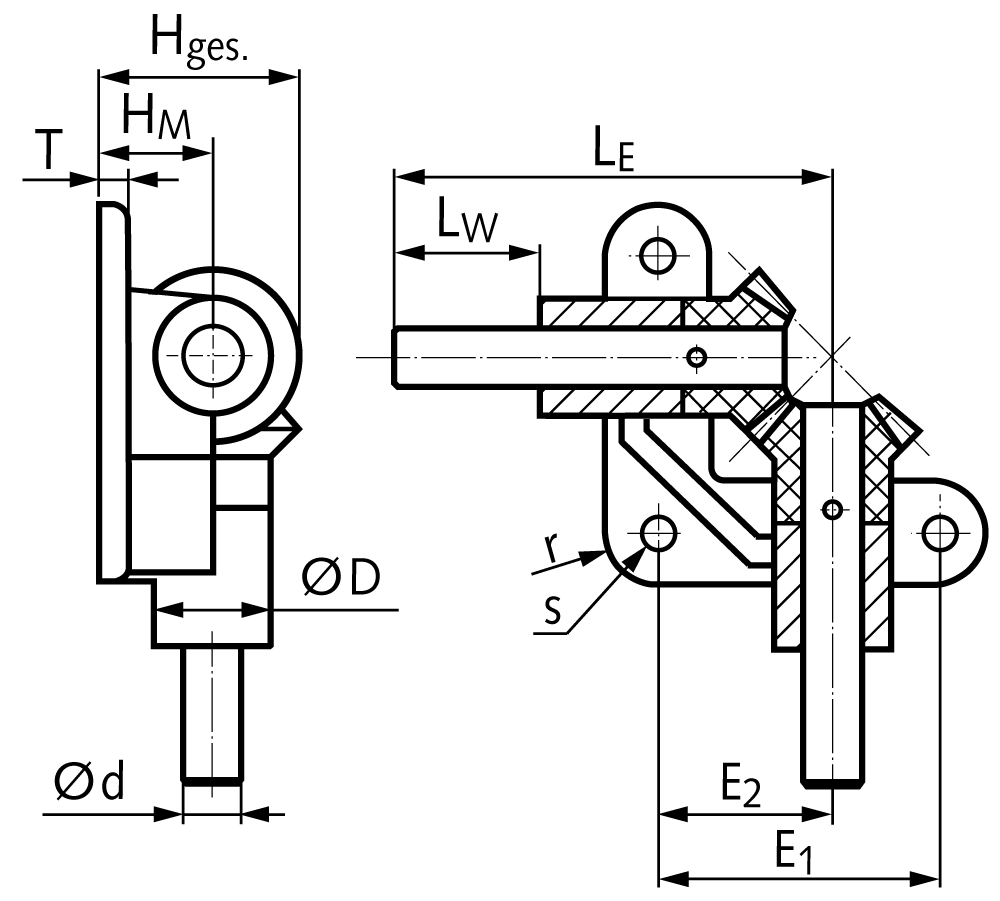

Material: Housing made from zinc die-cast ZnAI4Cu1. Shafts made from stainless steel 1.4301 (AISI 304), dismountable. Bevel gears from acetal or polyketone resin, injection-moulded. • Low cost angular gear drive, ratio 1:1, 6 sizes. • Suitable for lower torques and intermittend use. • Shafts running directly in the self-lubricating housing material. • Easy to mount and maintenance-free. Polyketone: Lower friction,much larger lifespan. Much higher safety against tooth breaking. Shaft angle = 90º. Temperature range – 20°C to +100º C.
