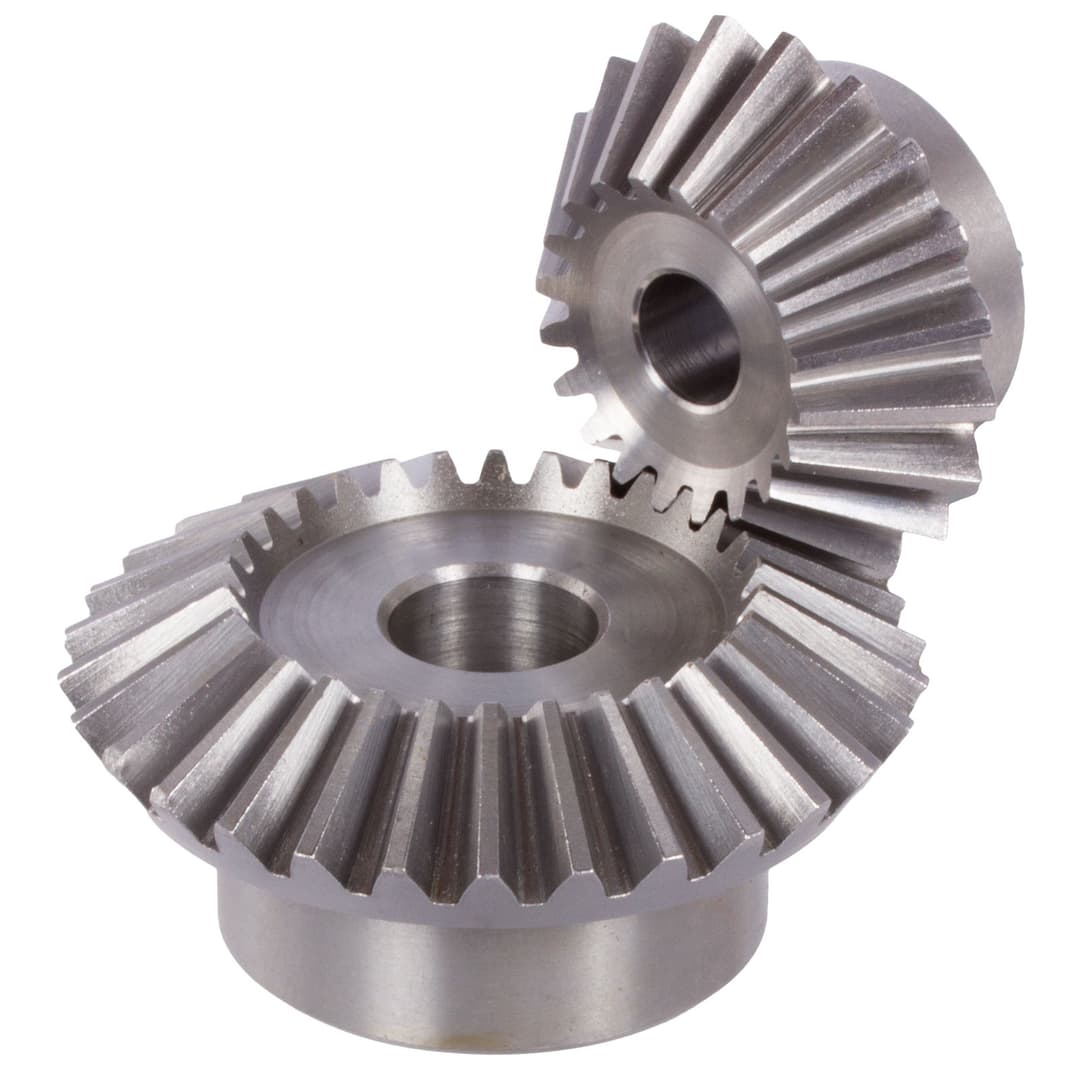

Bevel gear made of die-cast zinc ZnAl4Cu1 module 1.5 16 teeth i=1:1 bore 8mm

MÄDLERMÄDLER· Mechanics & transmission

Bevel gear made of die-cast zinc ZnAl4Cu1 module 1.5 16 teeth i=1:1 bore 8mm

Name: Bevel gear made of die-cast zinc ZnAl4Cu1 module 1.5 16 teeth i=1:1 bore 8mm
Brand: MÄDLER
Price: 5.93 USD
Availability: InStock

Manufacturer part no. 35870700

$5.93≈ 5.28 €

Price summary

Listed by MÄDLER at €5.28. Delivered to France, including shipping, VAT and any customs duty, it comes to about €24.34. Prices last checked on 2026-10-04.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

In stock — 3 unitslead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€5.28
Shipping	€15.00
VAT (20%)	€4.06
Total delivered	€24.34

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Mechanical

Weight

27 g

Other characteristics

Bore	8 mm
Max torque	46 Ncm
Module	1.5
No of teeth	16
Optional counter wheel part no	35 870 700
Outer diameter	26 mm
Material	Zinc die-cast
Ratio	1:1 (16/16)
Surface	Blank

Description

Material: Zinc die-cast ZnAI4Cu1. Shaft angle = 90°. Bores machined. The bevel gears only run as a pair at the stated ratio. In the torque calculation of zinc-die-cast bevel gears only the root strength was considered. Due to the material properties these gears are only to a limited extend suitable for continuous operation. Note for ordering: These gears are sold singulary, not by pair. For a pair of bevel gears, you have to order two matching gears of the same module and ratio. At ratio 1:1, you need two pieces of the same number of teeth. At ratio uneven 1:1, you need two pieces with a different number of teeth of the same ratio.
