MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

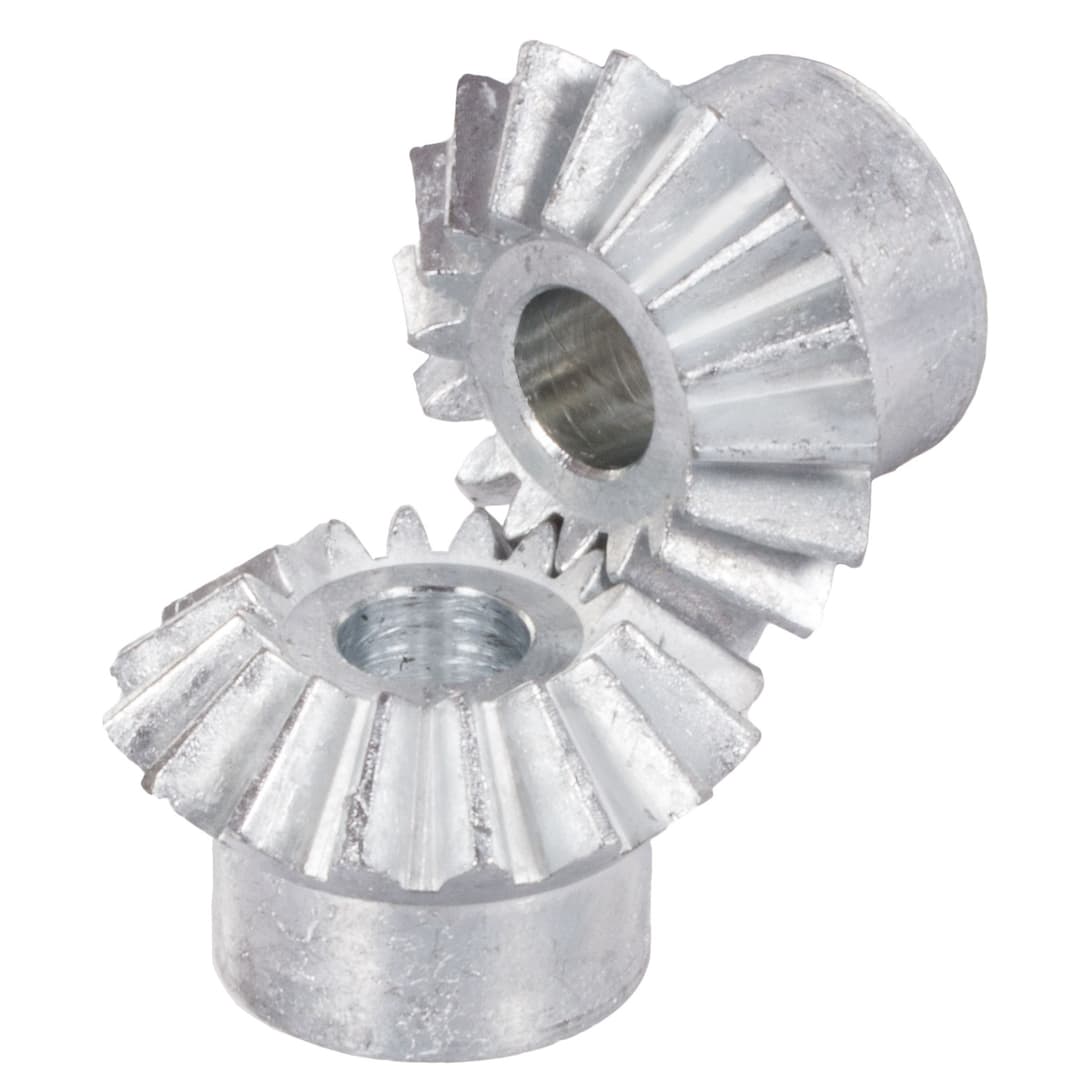

Bevel gear made of die-cast zinc ZnAl4Cu1 module 3.0 16 teeth bore 14mm
Manufacturer part no. 35940700
$13.95≈ 12.11 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €12.11 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.42 |
| Total delivered | €32.53 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

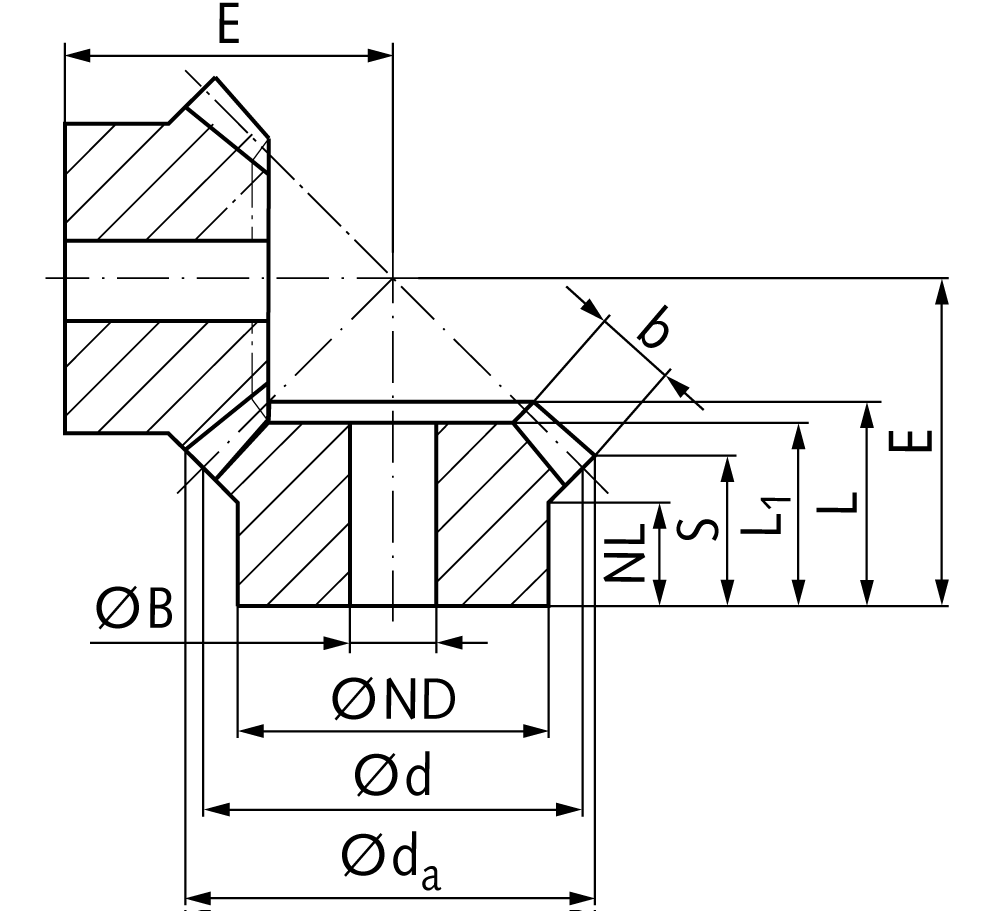

Specifications (automatically extracted)
Mechanical
| Weight | 146 g |
Other characteristics
| Bore | 14 mm |
| Max torque | 380 Ncm |
| Module | 3 |
| No of teeth | 16 |
| Optional counter wheel part no | 35 940 700 |
| Outer diameter | 52.3 mm |
| Material | Zinc die-cast |
| Ratio | 1:1 (16/16) |
| Surface | Blank |
Description
Material: Zinc die-cast ZnAI4Cu1. Shaft angle = 90°. Bores machined. The bevel gears only run as a pair at the stated ratio. In the torque calculation of zinc-die-cast bevel gears only the root strength was considered. Due to the material properties these gears are only to a limited extend suitable for continuous operation. Note for ordering: These gears are sold singulary, not by pair. For a pair of bevel gears, you have to order two matching gears of the same module and ratio. At ratio 1:1, you need two pieces of the same number of teeth. At ratio uneven 1:1, you need two pieces with a different number of teeth of the same ratio.
