MÄDLERMÄDLER· Bevel Gears, Worm Wheels, Worms

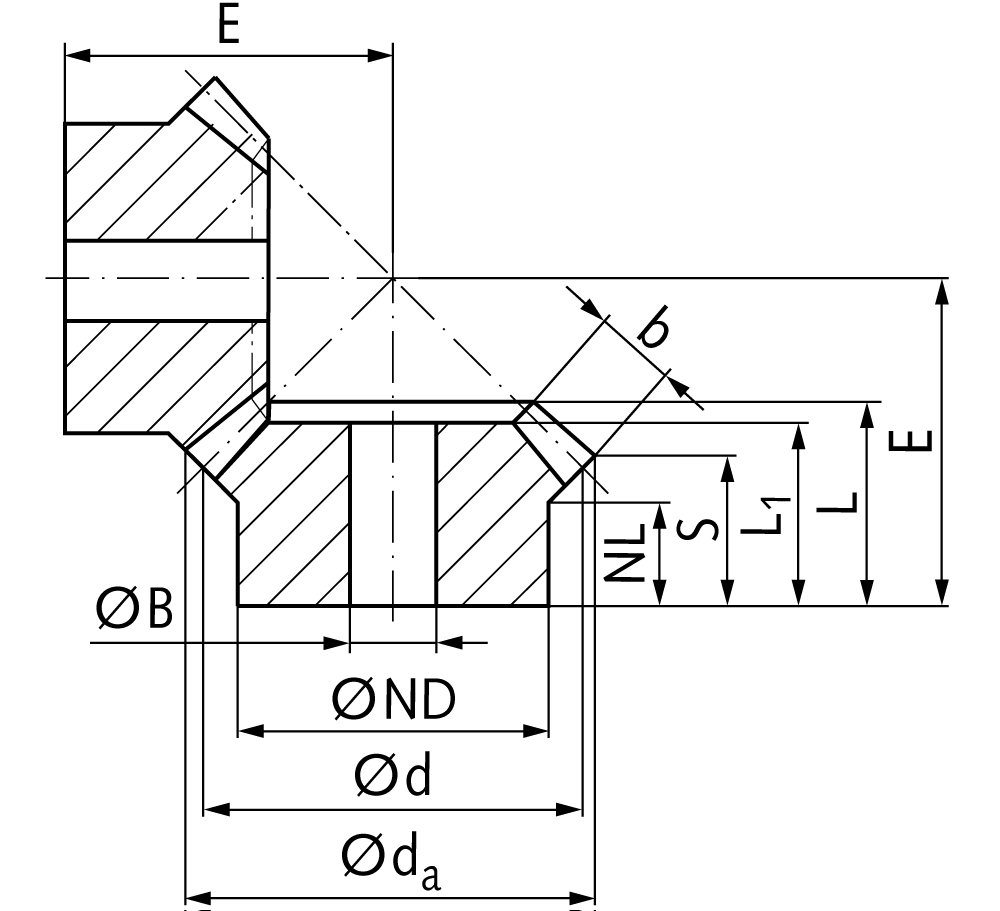

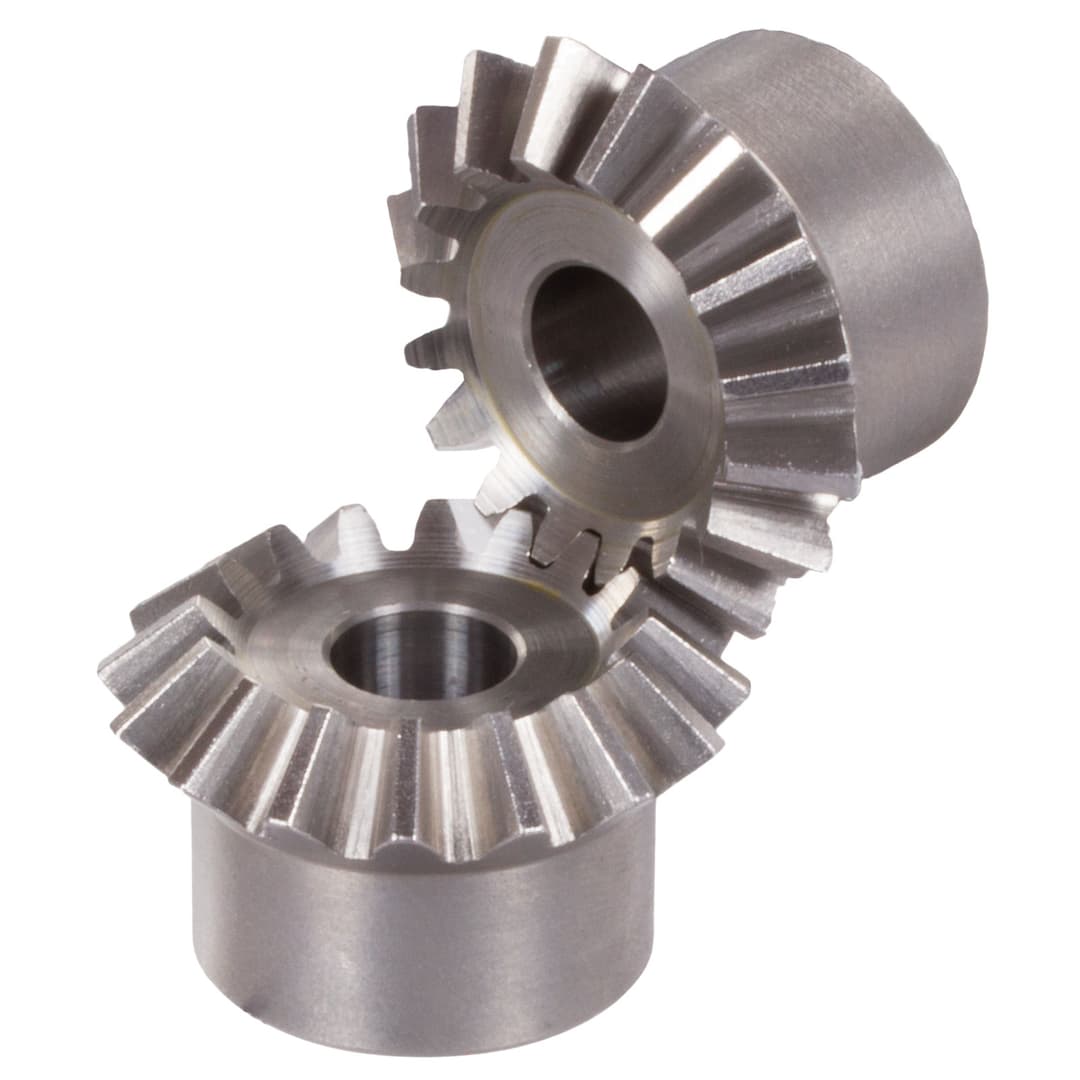

Bevel gear made of die-cast zinc ZnAl4Cu1 module 2.0 16 teeth bore 10mm
Manufacturer part no. 35900700
$6.90≈ 5.99 €
In stock — 7 unitslead time 14 d
Estimated landed cost
| Item | €5.99 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.20 |
| Total delivered | €25.19 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 52 g |
Other characteristics
| Bore | 10 mm |
| Max torque | 110 Ncm |
| Module | 2 |
| No of teeth | 16 |
| Optional counter wheel part no | 35 900 700 |
| Outer diameter | 34.6 mm |
| Material | Zinc die-cast |
| Ratio | 1:1 (16/16) |
| Surface | Blank |
Description
Material: Zinc die-cast ZnAI4Cu1. Shaft angle = 90°. Bores machined. The bevel gears only run as a pair at the stated ratio. In the torque calculation of zinc-die-cast bevel gears only the root strength was considered. Due to the material properties these gears are only to a limited extend suitable for continuous operation. Note for ordering: These gears are sold singulary, not by pair. For a pair of bevel gears, you have to order two matching gears of the same module and ratio. At ratio 1:1, you need two pieces of the same number of teeth. At ratio uneven 1:1, you need two pieces with a different number of teeth of the same ratio.
