MÄDLERMÄDLER· Gear Boxes and Geared Motors

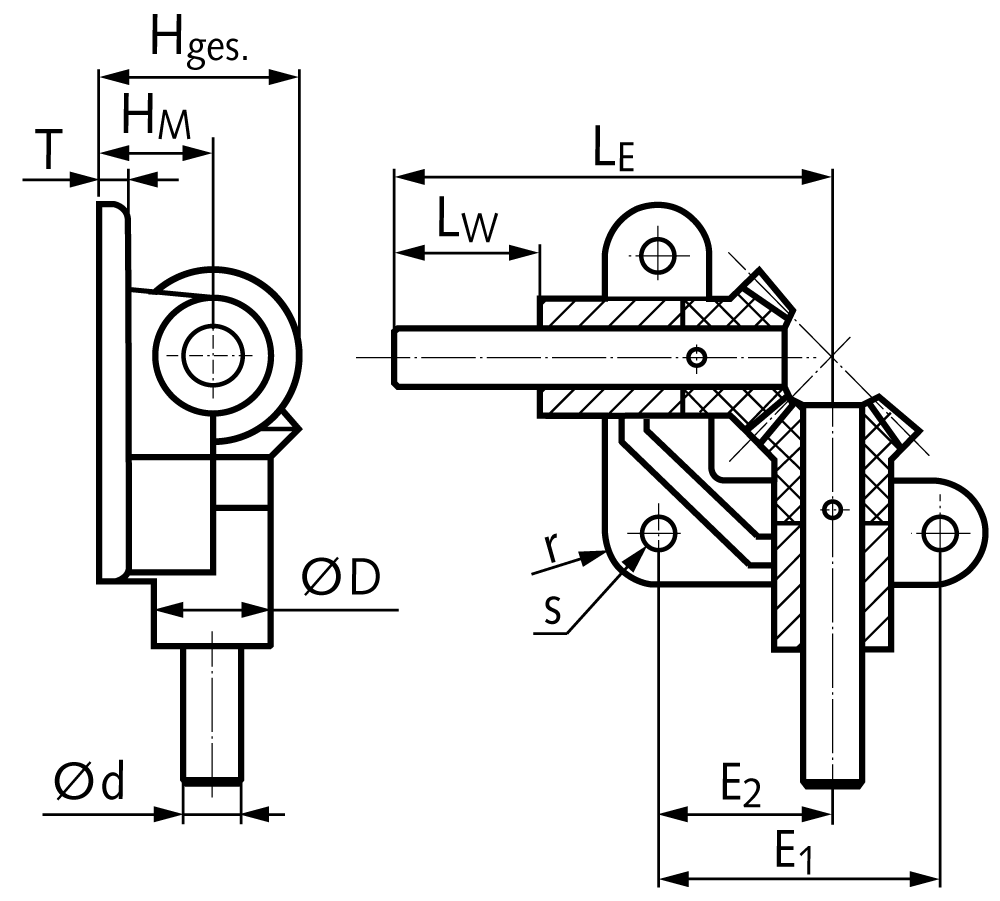

Open angular drive OW2 with polyketone bevel gears stainless steel shafts Ø 10mm module 2 16 teeth 1:1 version 10
Manufacturer part no. 41035620
$66.41≈ 57.67 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €57.67 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.53 |
| Total delivered | €87.20 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 320 g |
Other characteristics
| Max torque | 77 Ncm |
| Module | 2 |
| No of teeth | 16/16 |
Description
Material: Housing made from zinc die-cast ZnAI4Cu1. Shafts made from stainless steel 1.4301 (AISI 304), dismountable. Bevel gears from acetal or polyketone resin, injection-moulded. • Low cost angular gear drive, ratio 1:1, 6 sizes. • Suitable for lower torques and intermittend use. • Shafts running directly in the self-lubricating housing material. • Easy to mount and maintenance-free. Polyketone: Lower friction,much larger lifespan. Much higher safety against tooth breaking. Shaft angle = 90º. Temperature range – 20°C to +100º C.
