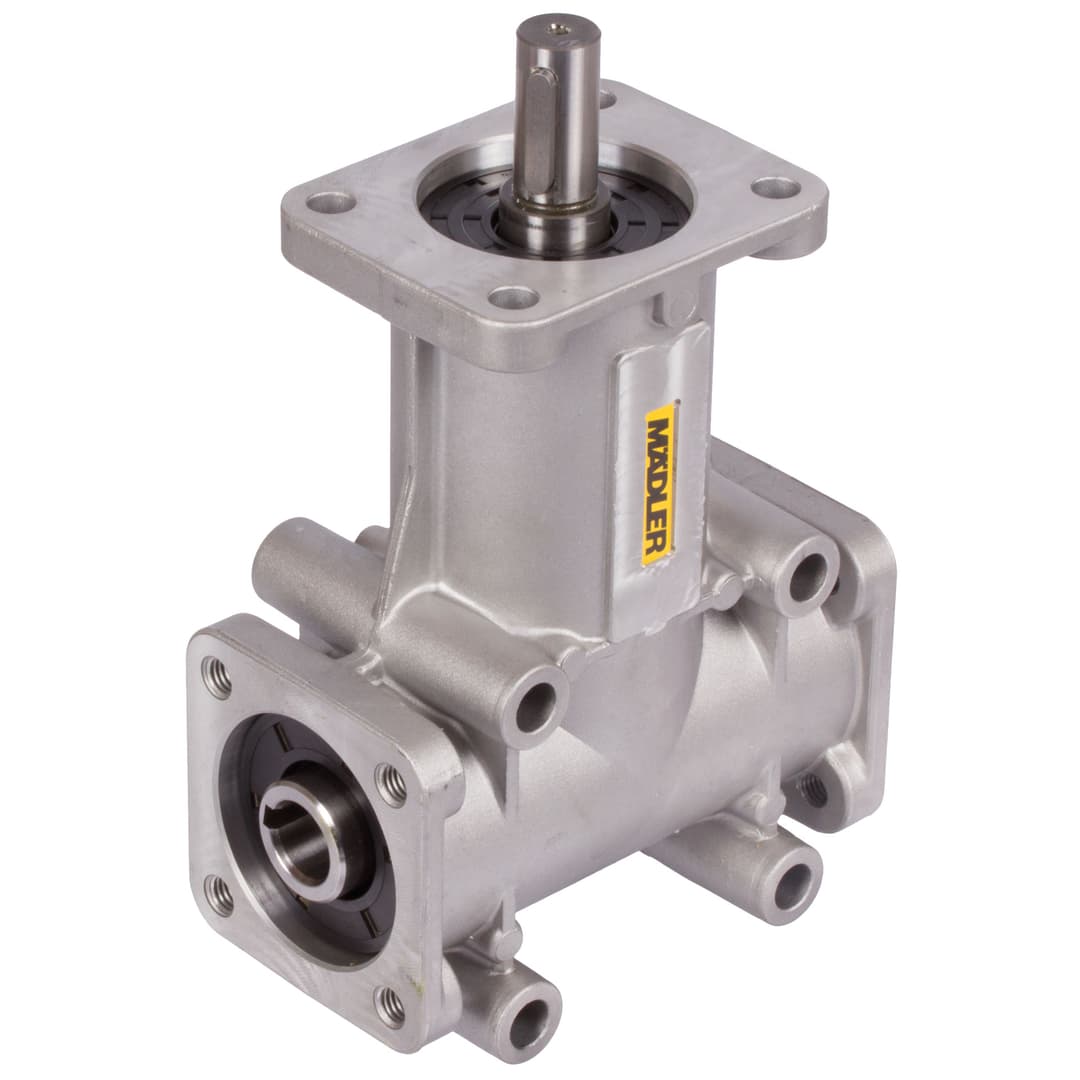

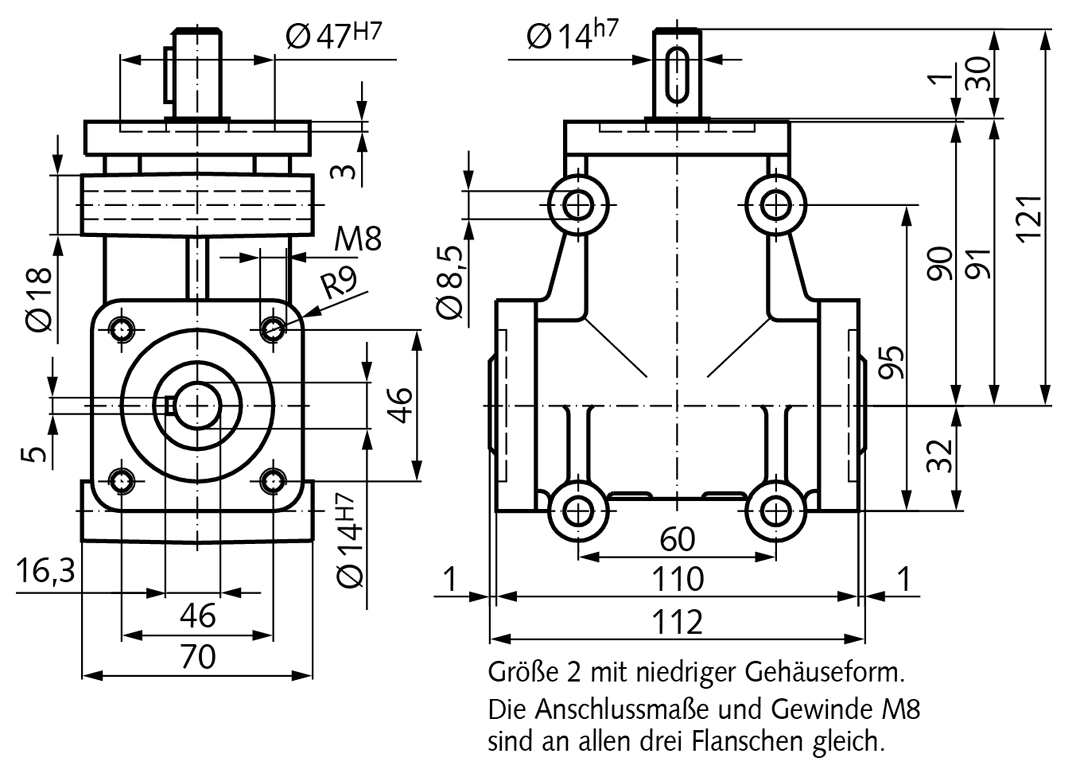

Bevel gearbox DZA, type H, size 2, i=1:1
Manufacturer part no. 41013200
$586.58≈ 522.57 €
Price summary
Listed by MÄDLER at €522.57. Delivered to France, including shipping, VAT and any customs duty, it comes to about €645.08. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €522.57 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €107.51 |
| Total delivered | €645.08 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2 kg |
Other characteristics
| Input power | 2.49 kW |
| Output torque | 17 Nm |
| Shaftdiameter | 14 mm |
| Oil volume | 0.095 dm³ |
| Ratio | 1 : 1 |
Description
General data: Gearbox with hollow shaft on the output side. Ratio either 1 : 1 or 2 : 1 or 3 : 1. Any mounting position possible. The maximum input speed (hollow shaft as input device) for gearing up is 750 rpm. Housing: Thick-walled, one-piece cast aluminium housing, fully oil-tight and dust-proof. Gearing: Spiral teeth, hardened. Shafts/bearing system: Input and output shaft are ground and mounted on ball bearings. Lubrication/maintenance: Lubricated for life, viscosity ISO VG 150. Gearboxes are maintenance free. Angular backlash: 15 to 30 angular minutes. Permiss. operating temperature: -18°C to +80°C.
