MÄDLERMÄDLER· Gear Boxes and Geared Motors

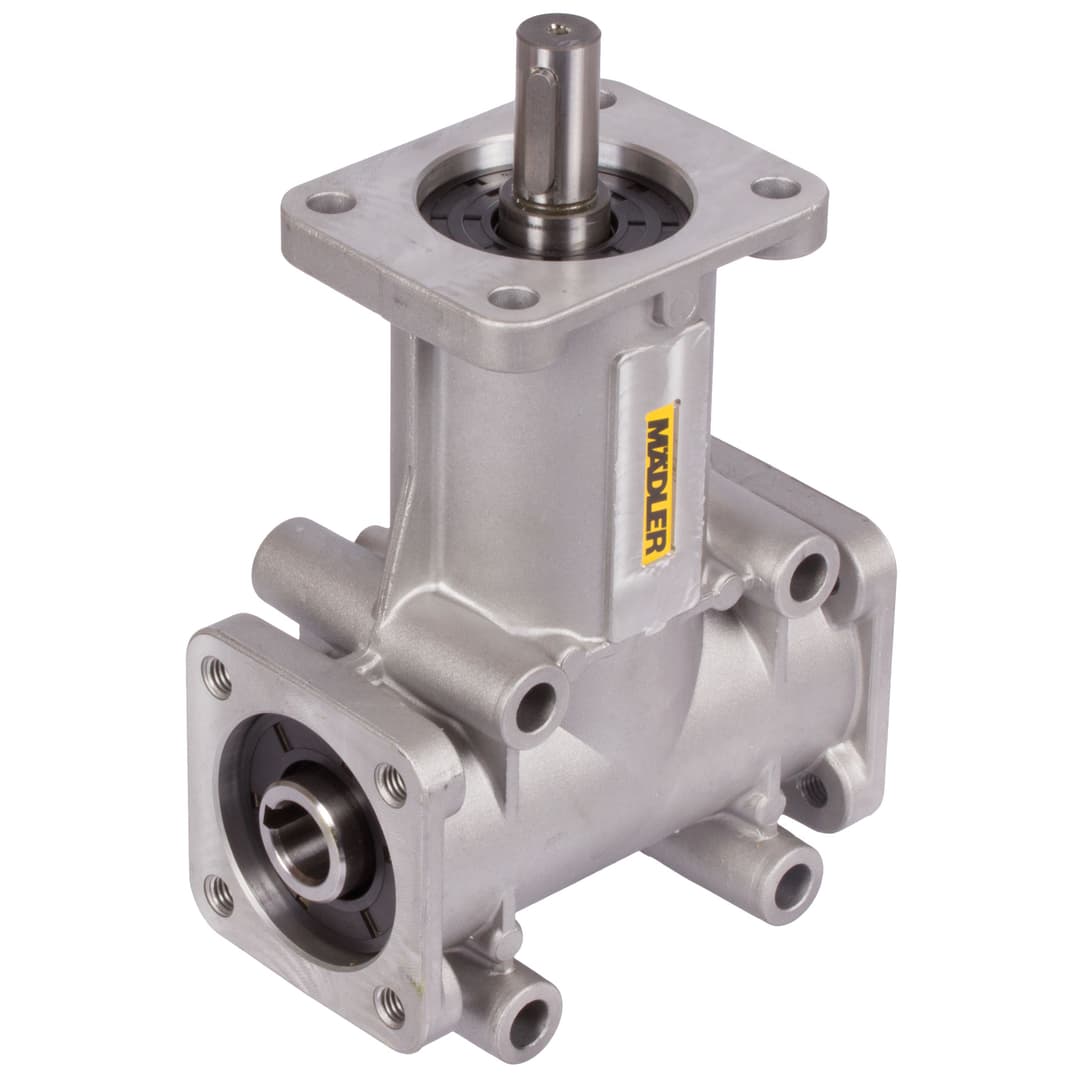

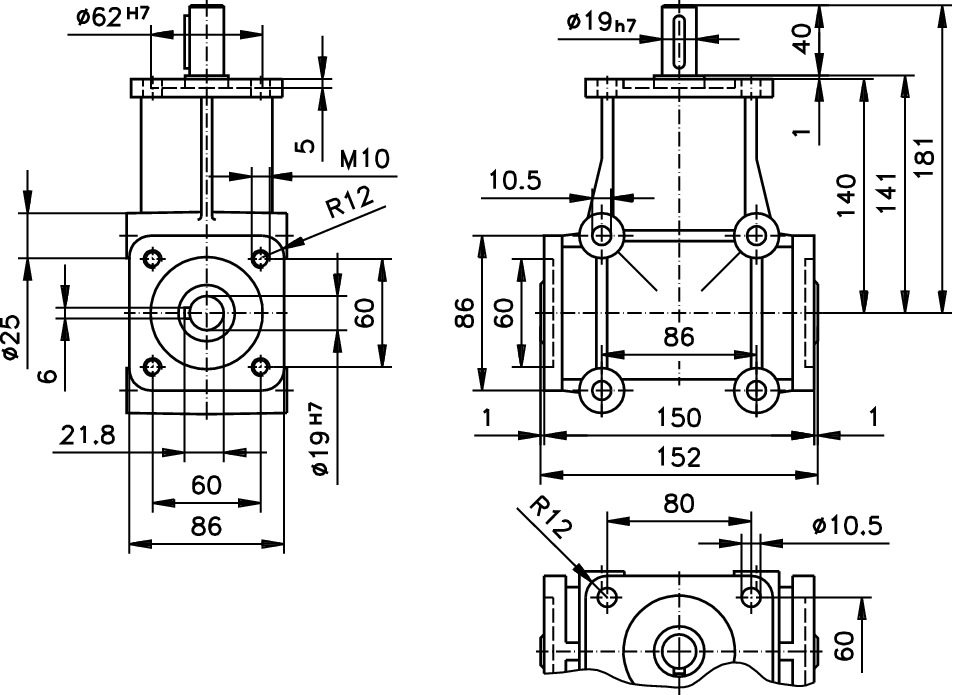

Bevel gearbox DZA, type H, size 3, i=1:1
Manufacturer part no. 41013400
$868.47≈ 754.21 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €754.21 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €153.84 |
| Total delivered | €923.05 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4.8 kg |
Other characteristics
| Input power | 5.57 kW |
| Output torque | 38 Nm |
| Shaftdiameter | 19 mm |
| Oil volume | 0.23 dm³ |
| Ratio | 1 : 1 |
Description
General data: Gearbox with hollow shaft on the output side. Ratio either 1 : 1 or 2 : 1 or 3 : 1. Any mounting position possible. The maximum input speed (hollow shaft as input device) for gearing up is 750 rpm. Housing: Thick-walled, one-piece cast aluminium housing, fully oil-tight and dust-proof. Gearing: Spiral teeth, hardened. Shafts/bearing system: Input and output shaft are ground and mounted on ball bearings. Lubrication/maintenance: Lubricated for life, viscosity ISO VG 150. Gearboxes are maintenance free. Angular backlash: 15 to 30 angular minutes. Permiss. operating temperature: -18°C to +80°C.
