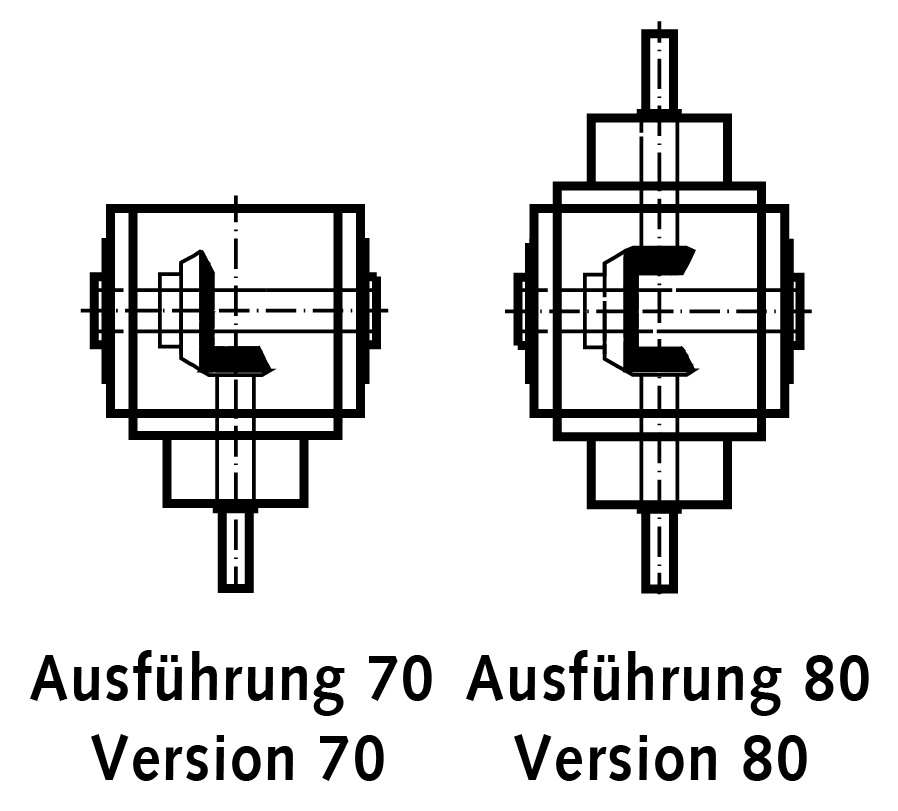

Name: Miniature Bevel gearbox MKU, type H, size 035, type 70, gear ratio 1:1
Brand: MÄDLER
Price: 432.37 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Weight

210 g

Other characteristics

Max input power at 1 000 min 1	0.39 kW
Max input power at 1 500 min 1	0.5 kW
Max input power at 2 400 min 1	0.63 kW
Max input power at 250 min 1	0.12 kW
Max input power at 3 000 min 1	0.66 kW
Max input power at 50 min 1	0.03 kW
Max input power at 500 min 1	0.22 kW
Max input power at 750 min 1	0.3 kW
Max torque at 1 000 min 1	3.5 Nm
Max torque at 1 500 min 1	3 Nm
Max torque at 2 400 min 1	2.4 Nm
Max torque at 250 min 1	4.5 Nm

Description

Miniature angular gear unit for particularly high loads and long service life. Very robust construction, as with the larger gearboxes KU/I. Gear unit size 035 with housing edge length 35mm is available in ratio i=1:1. The gearbox size 045 with a housing edge length of 45mm provides it in translation i=1:1 to 4:1. General data: 3 Designs, 6 standard version, and many further variations available as multi-shaft gearboxes, please enquire. Also Available in corrosion-proof, NO-TOX version for the food processing and pharmaceutic industry and with grease lubrication. Housing: Housing and flanges made of aluminium, fully sealed against oil leaks and protected against dust. Due to the cube shape, all 6 sides of the gear box can be used as mounting surfaces. The diameters c, l1 and l2 are provided for use as alignment studs. Gearing: Hardened bevel gears, lapped in pairs , Angular backlash max. 0,5°. Bearing: Life time min. 15,000h. Lubrication: The gearboxes are fully enclosed, lubricated for life and maintenance free. The gearboxes have no venting. Permiss. Ambient temperature -10°C bis +90°C. ** The values of the performance tables apply at an ambient temperature of 20°C
