MÄDLERMÄDLER· Gear Boxes and Geared Motors

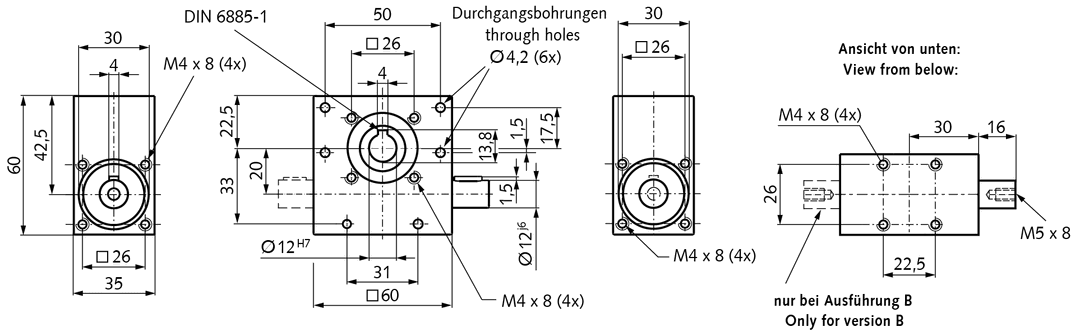

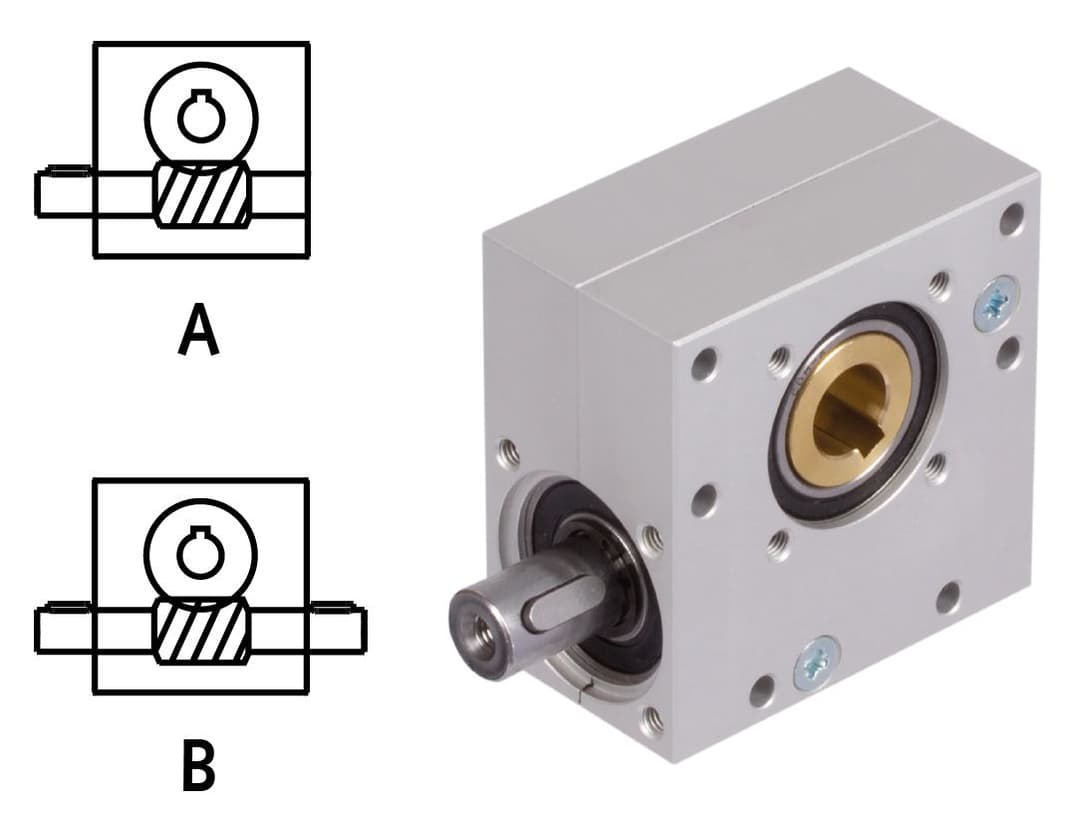

Worm gear unit KES 20 version B center distance 20mm ratio 30:1 output hollow shaft 12mm
Manufacturer part no. 42002030B
$301.86≈ 262.15 €
In stock — 7 unitslead time 14 d
Estimated landed cost
| Item | €262.15 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €55.43 |
| Total delivered | €332.58 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 438 g |
Other characteristics
| Drive power at 100min 1 | 6.6 W |
| Efficiency approx | 0.45 |
| Output torque at 100min 1 | 8.5 Nm |
| Selflocking | no |
| Transmission | 30 : 1 |
| Version | B |
Description
Angular drives with hollow output shaft for high torques at very low dimensions. Suitable in a wide variety of applications. One size with center distance 20mm, in 7 ratios. Housing: Aluminium, silver anodized. Sealed against lubricant leaks, protected against dust. Can be mounted in any position. Worm shaft in vertically position not recommended for continuous operation. Gearing: Worm from steel, wheel from special brass. Bearing: Ball bearings with rubber seal RS. Lubrication: Maintenance free grease lubrication. Angular backlash: 1°+/-0,5°. Operating time: 20% at 5 min. Life time: 1,000 hours at max. performance at speed 500 min-1 and operating time 20%. Permiss. operating temperature: -20° to +60°C.
