MÄDLERMÄDLER· Motors & actuators

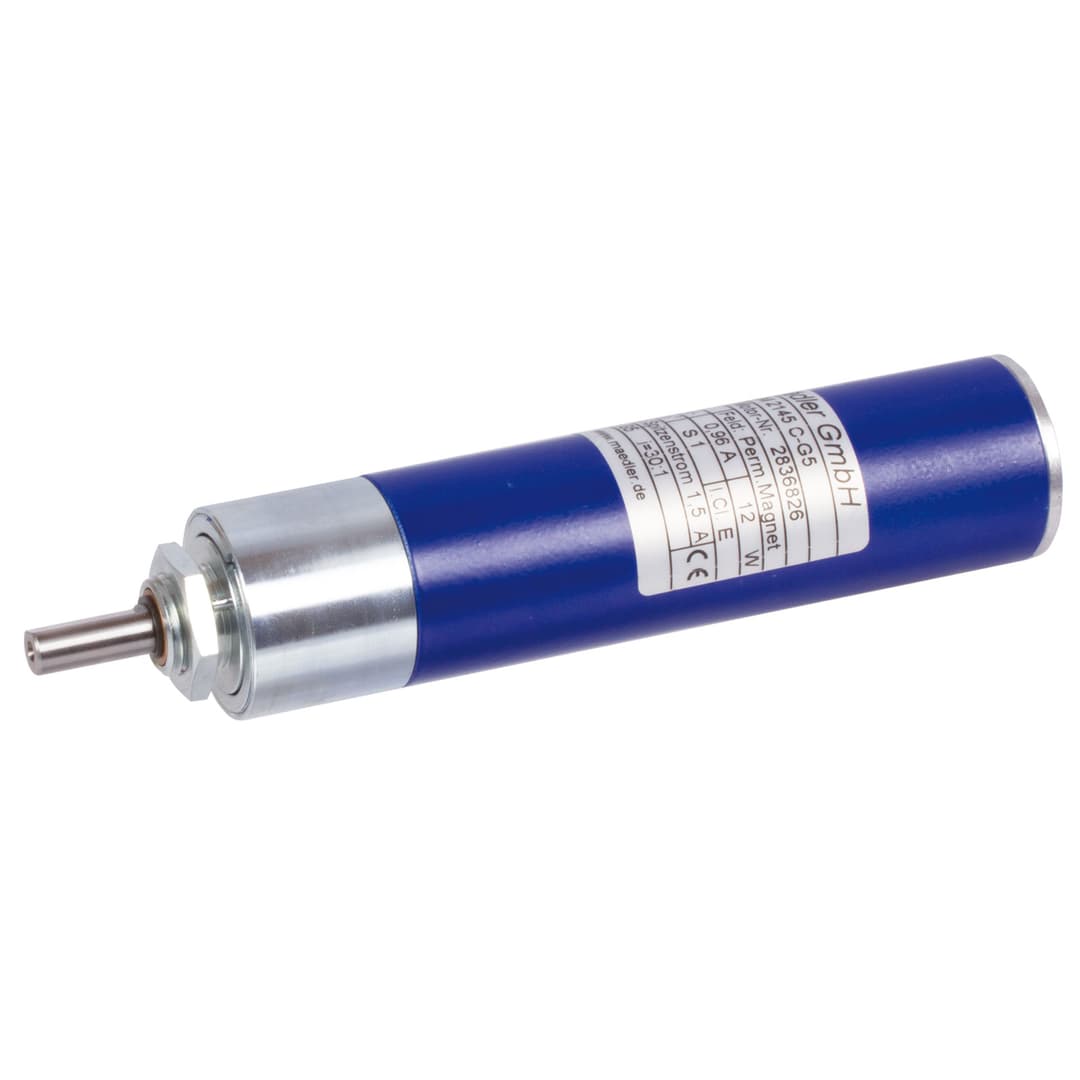

Planetary small geared motor PE with DC motor 24V size 1 n2=22 rpm i=270:1
Manufacturer part no. 43044424
$928.89≈ 806.68 €
Price summary
Listed by MÄDLER at €806.68. Delivered to France, including shipping, VAT and any customs duty, it comes to about €986.02. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €806.68 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €164.34 |
| Total delivered | €986.02 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 24 V |
Mechanical
| Speed | 22 rpm |
| Weight | 650 g |
Other characteristics
| Level of efficiency | 65 % |
| Max permanent torque | 2.9 Nm |
| Max starting torque | 3.3 Nm |
| Nominal power | 6.7 W |
| Nominal power motor | 10 W |
| Output speed | 22 min-1 |
| Ratio | 270 : 1 |
Description
Housing: Steel, zinc-plated, sealed against lubricant leaks and protected against dust, can be mounted in any position. Gearbox: 1st gearbox stage: plastic gears, other gears made from steel. Bearing: Motor roller bearing. Gearbox: sintered bronze plain bearing. Lubrication: Maintenance free grease lubrication. Motor: DC motor 24 V. Nominal motor speed 6000 rpm, Pinion milled into motor shaft. Free lead ends. Sense of rotation can be changed by swapping leads over. Protection class according to VDE 0530: IP 21 Insulation class according to VDE 0530: E Operating mode as per VDE 0530: S1
