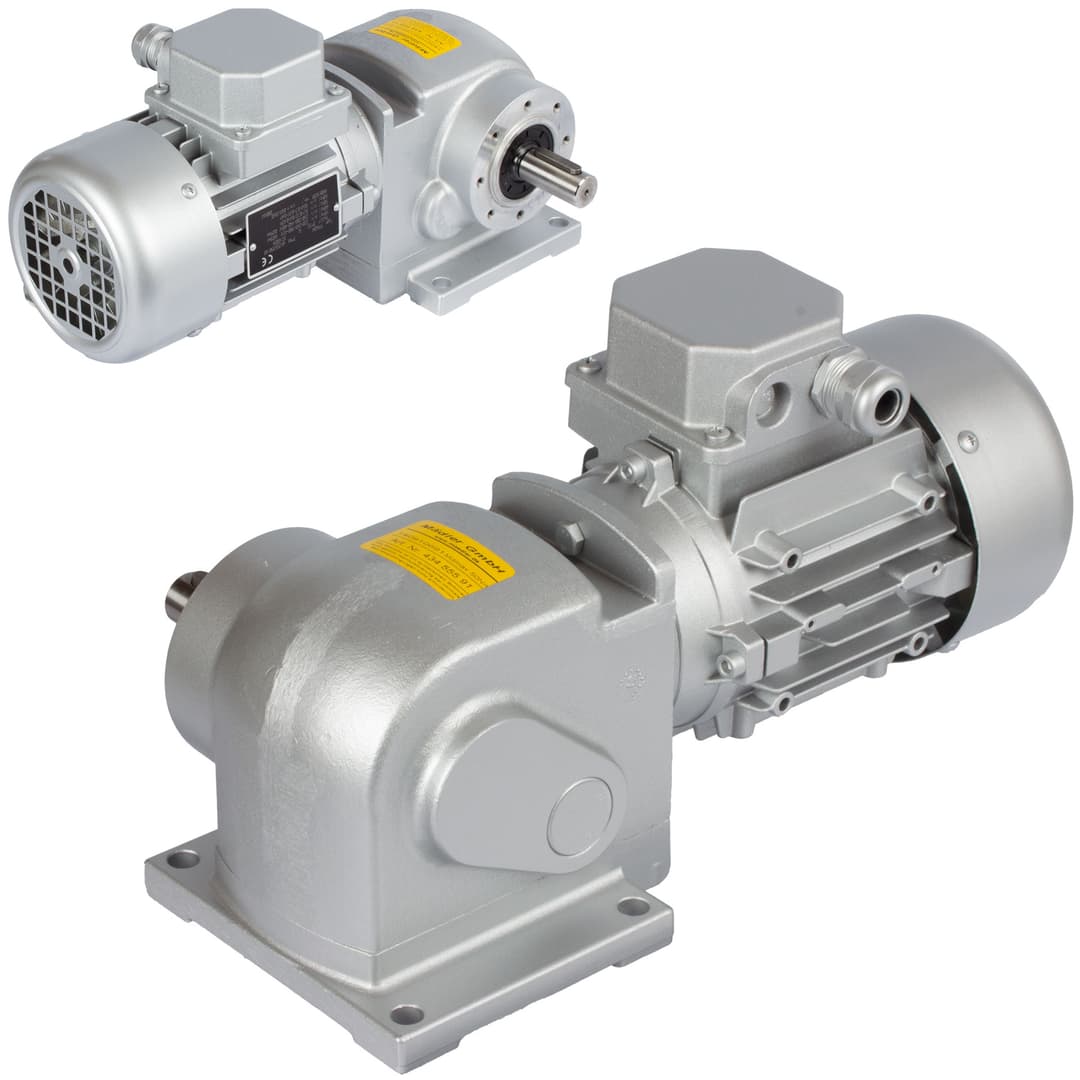

Helical worm geared motor SRS 120 Watt 230/400V 50Hz IE2 i=591:1 output speed approx. 4.7 rpm permitted Md2=50Nm (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 43456591
$986.26≈ 856.50 €
Price summary
Listed by MÄDLER at €856.50. Delivered to France, including shipping, VAT and any customs duty, it comes to about €1045.80. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €856.50 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €174.30 |
| Total delivered | €1045.80 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 400 V |
Mechanical
| Torque | 509.85 kg·cm |
| Weight | 6.6 kg |
Other characteristics
| Capacity | 16 µF |
| Max output torque | 50 * Nm |
| Motor power | 120 Watt W |
| Optional operating capacitor partno | 436 361 00 |
| Output speed | 4.7 min-1 |
| Ratio | 591 : 1 |
Description
230/400V, 50Hz, IP54, isolation class F. Efficiency class: 90W IE1, 120W IE2. Can also be connected to alternating current using an operating capacitor. Motor and gearbox with roller bearing. 1st stage: Worms hardened and ground, Worm gears special brass. 2nd stage: Helical gear set hardened and ground. Note: Torques marked with * are stability related maximum torques. Dimensions without stated tolerances are non-binding.
