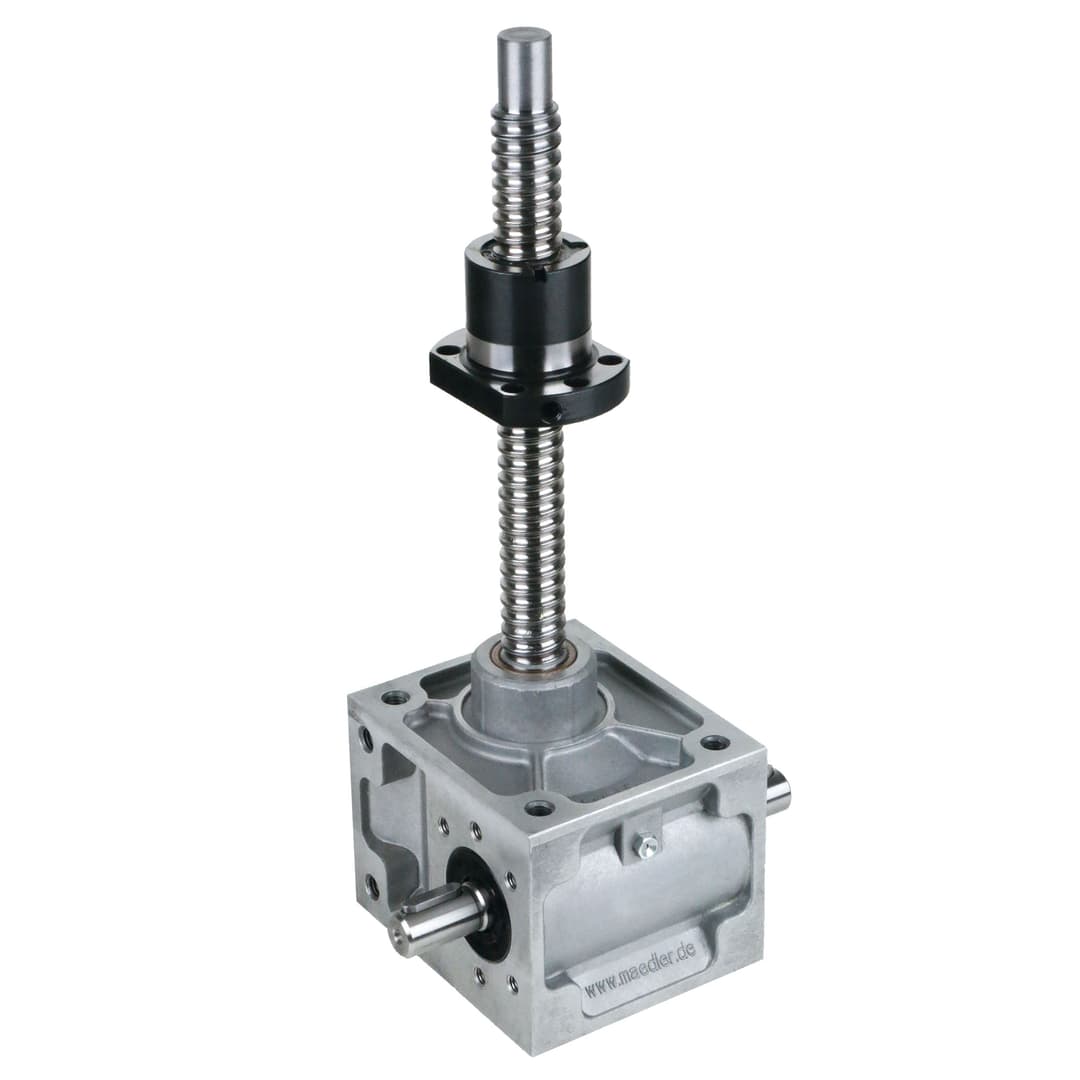

Travelling nut for worm gear screw jack NPK version C size 2 with ball thread KGT 20×5
Manufacturer part no. 475002LM1
$744.80≈ 663.52 €
Manufacturer part no. 475002LM1
Listed by MÄDLER at €663.52. Delivered to France, including shipping, VAT and any customs duty, it comes to about €814.22. Prices last checked on 2026-10-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €663.52 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €135.70 |
| Total delivered | €814.22 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 250 g |
| Axial clearance max. | 0.08 mm |

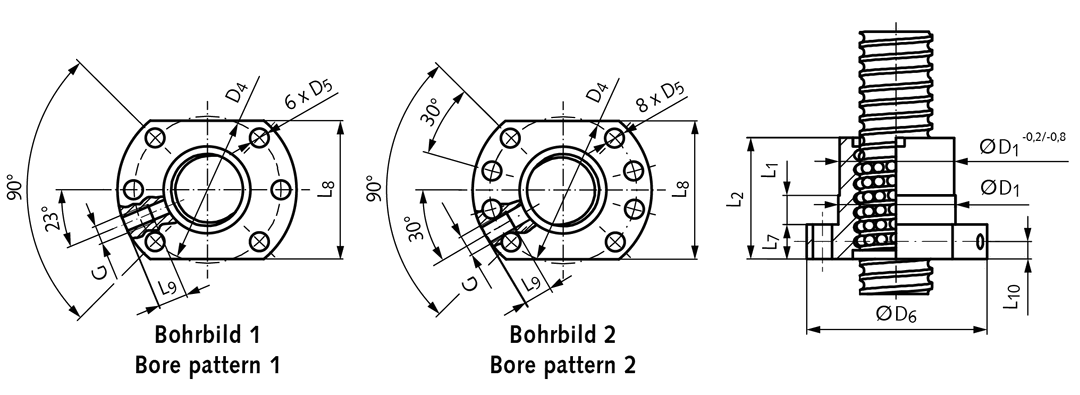

| Bore pattern | 1 |
| D1 g6 | 36 mm |
| D4 | 47 mm |
| D5 | 6.6 mm |
| D6 | 58 mm |
| L1 | 10 mm |
| L10 | 5 mm |
| L2 | 42 mm |
| L7 | 10 mm |
| L8 | 44 mm |
| L9 | 10 mm |
| Load rating dyn c | 10.5 |
| Load rating stat c | 16.6 |
| Size | 2 |
Note: For assembly / disassembly, a sleeve must be used as an assembly aid. Supplied with assembly tool, without spindle.
Semantically close products available for less — check the specs match your need.
| G | M6 |
| Kgt | 20 x 5 |
