MÄDLERMÄDLER· Mechanics & transmission
Mounting feet set including screws for worm gear screw jacks NPT and NPK size 1 length 120mm
Manufacturer part no. 47500111
$57.94≈ 50.15 €
Price summary
Listed by MÄDLER at €50.15. Delivered to France, including shipping, VAT and any customs duty, it comes to about €78.18. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €50.15 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.03 |
| Total delivered | €78.18 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 300 g |

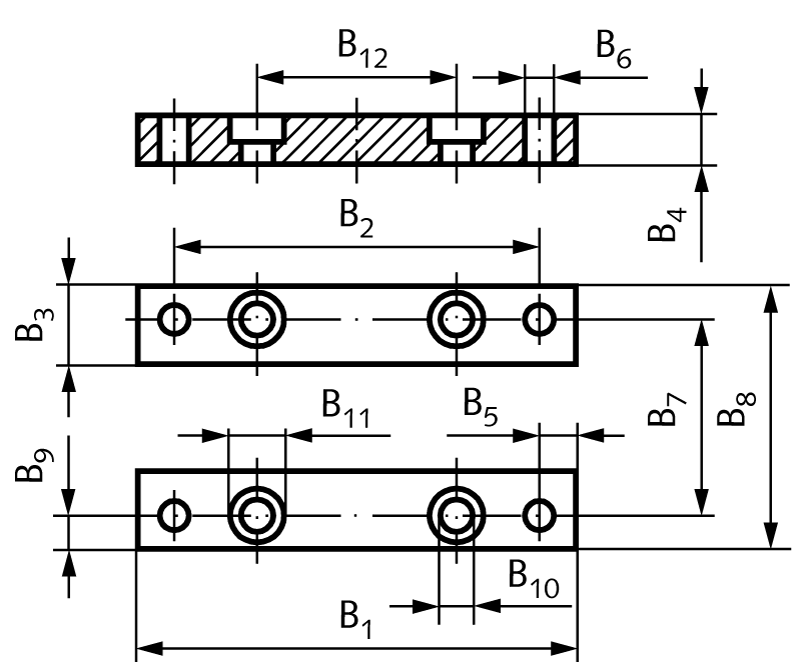

Other characteristics
| B1 | 120 mm |
| B10 | 9 mm |
| B11 | 15 mm |
| B12 | 60 mm |
| B2 | 100 mm |
| B3 | 20 mm |
| B4 | 10 mm |
| B5 | 10 mm |
| B6 | 8.5 mm |
| B7 | 52 mm |
| B8 | 72 mm |
| B9 | 10 mm |
| Size of screw head | 5 mm |
| Screw norm | DIN 7984 |
| Screw size | M8 x 16 |
Description
Material: Steel St52, zinc-plated. Fastening strip set incl. screws for fastening the gearbox to the top or bottom side. NPK version C requires longer screws (not included). 1) For worm gear screw jacks NPK version B, the mounting strips must be machined to fit the square tube.
