Worm gear screw jack NPK size 3 version A basic gearbox without spindle for spindle KGT 32×5 (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 4750033205
$2065.15≈ 1839.78 €
Price summary
Listed by MÄDLER at €1839.78. Delivered to France, including shipping, VAT and any customs duty, it comes to about €2225.74. Prices last checked on 2026-10-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €1839.78 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €370.96 |
| Total delivered | €2225.74 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| A1 | 130 mm |
| B2 | 105 mm |
| C2 | 82 mm |
| Hub 2 | 0.83 mm |
| Load rating dyn c | 8.9 |
| Load rating stat c0 | 24.3 |
| Md 3 | 16 Nm |
| Size | 3 |
| Weight gearbox only | 3.6 kg |
| 1 | 68,8 (49,4) |
| D4 kgt spindle | 32 x 5 |
Description

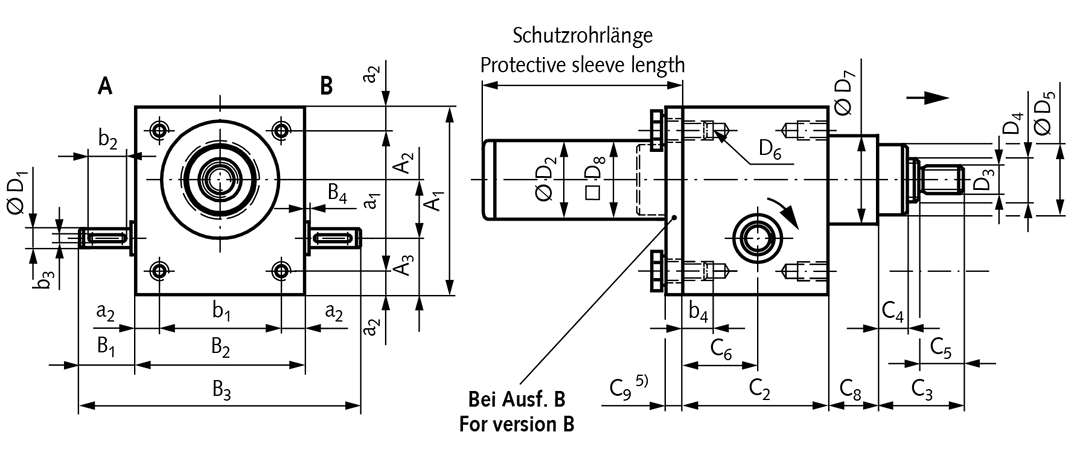

Version A: In this standard version, the ball screw spindle moves in the axial direction. The object to be moved must be secured against rotation. Housing: Made from aluminium alloy in die-cast version. All sides machined. As standard filled with lubricant. Protective tube steel, blank. Gearing: Worm made from ETG100, Gear made from Gbz12. Due to the high efficiency (low friction between spindle and nut), ball screws are not self-locking. To prevent runback, a brake motor should be fitted, for example. Spindle: Ball screw material Cf53 rolled, induction hardened 60 ±2 HRC and polished. Protective sleeve: The versions A and B are, unlessstated otherwise in the order, supplied with a protective sleeve. The product numbers only refer to the basic gear units without spindle and accessories. Please ask for the price of the complete unit including spindle and accessories as, e.g., flange plate/travelling nut, bellow or coil spring cover, fastening strips. You will find further dimensions on our catalogue page. 1) Efficiency. Values in brackets for version with higher transmission ratio (slow-running version). 2) Stroke pro full rotation of the input shaft. 3) Required torque at max. load (only under optimum conditions).
