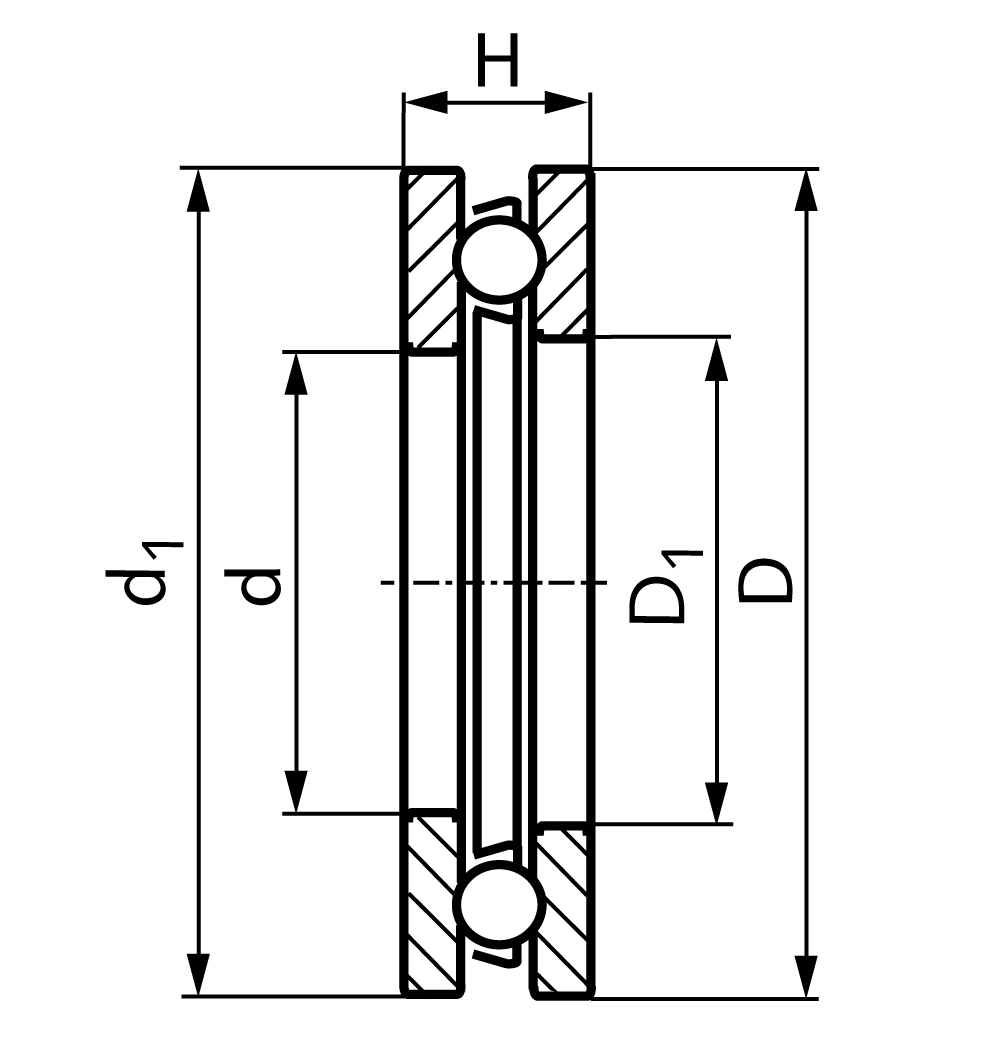

single direction thrust ball bearing 51103 inner Ø 17mm outer Ø 30mm height 9mm
Manufacturer part no. 51103-MAE
$3.21≈ 2.79 €
In stock — 51 unitslead time 14 d
Estimated landed cost
| Item | €2.79 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.56 |
| Total delivered | €21.35 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 25 g |
Other characteristics
| Inner diameter bottom part | 18 mm |
| Inner diameter upper part | 17 mm |
| Load rating dynamic | 9 kN |
| Outer diameter bottom part | 30 mm |
| Outer diameter upper part | 30 mm |
| Radiuses | 0.3 mm |
| Static load rating | 13.2 kN |
| Width | 9 mm |
| Material | Roller bearing steel |
| Speed limit | 8400 min-1 |
| Surface | Blank |
Description
Material: Bearing steel. Thrust Ball Bearings for single direction in brand quality from MAEDLER®. For axial load (no radial load permitted). Usable for high speed. These bearings exist from lose parts: Shaft ring (with ground bore), housing ring (with ground outer diameter and bigger bore) and ball cage with balls. The rings must not be confused with each other. Temperature range: -30°C to +125°C. Other versions or sizes on request.
