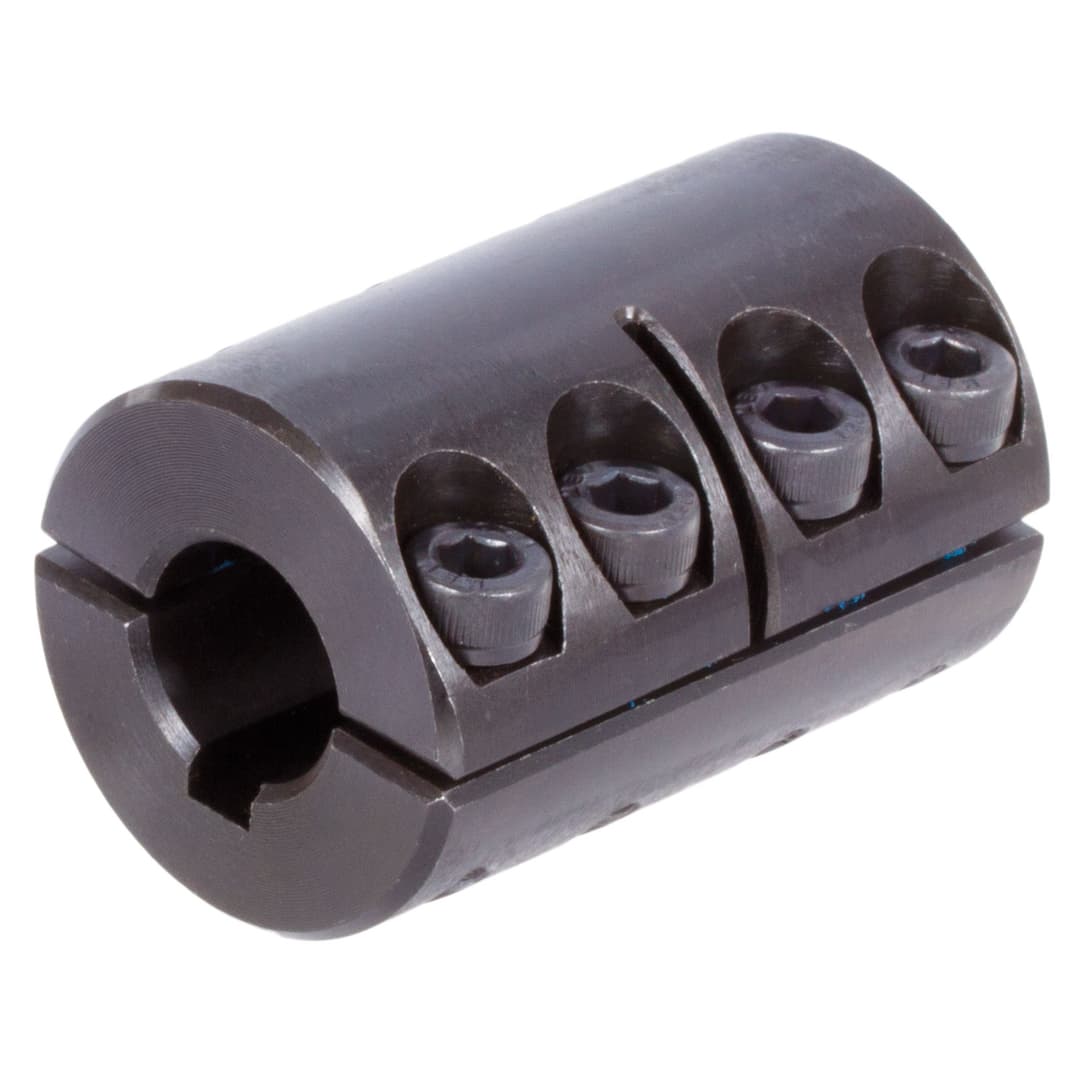

Clamp coupling (boc coupling) DIN 115 both sides bore 30mm with keyway material cast iron
Manufacturer part no. 60003000
$126.09≈ 109.50 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €109.50 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €24.90 |
| Total delivered | €149.40 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4.2 kg |
Other characteristics
| Bore diameter | 30 mm |
| Max misalignment angle | 0 ° |
| Max misalignment axial | 0 mm |
| Max misalignment radial | 0 mm |
| Max torque | 60 Nm |
| Number of allen bolts din 931 | 4 |
| Outer diameter | 100 mm |
| Temperature max. | 150 °C |
| Temperature min. | -40 °C |
| Total length | 130 mm |
| Coupling type | Rigid two-piece stlye |
| Electrically insulating | No |
| Material | Grey cast iron (A48) |
Description
Material: GG25. Without protective jacket. Up to 50 mm bore the couplings are manufactured according to bore tolerance zone V7. For larger bores the fit is U7. All bores have a feather key grove according to DIN 6885/1. Recommended shaft tolerance: f7. A bearing must be placed right beside both ends of the coupling. Box couplings can be assembled and dismantled in radial direction without moving the shaft in vertical direction. Standard: Form A for shafts of the same diameter. On request: Form B for shafts of different diameters.
