Manufacturer part no. 60070600
Listed by MÄDLER at €69.47. Delivered to France, including shipping, VAT and any customs duty, it comes to about €101.36. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €69.47 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.89 |
| Total delivered | €101.36 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 47 g |

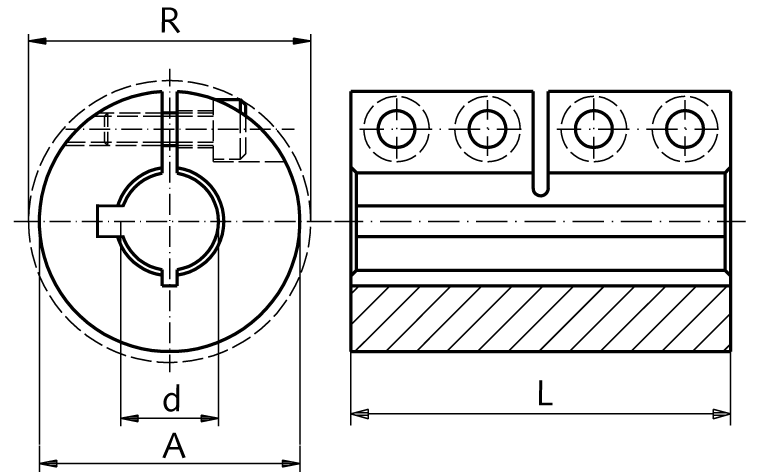

| Bore diameter | 6 mm |
| Max misalignment angle | 0 ° |
| Max misalignment axial | 0 mm |
| Max misalignment radial | 0 mm |
| Max outer diameter over screw head | 21.2 mm |
| Max speed | 4 U/min |
| Max torque | 34 Nm |
| Outer diameter | 18 mm |
| Temperature max. | 175 °C |
| Temperature min. | -40 °C |
| Tightening torque fastening screws | 2.1 Nm |
| Total length | 30 mm |

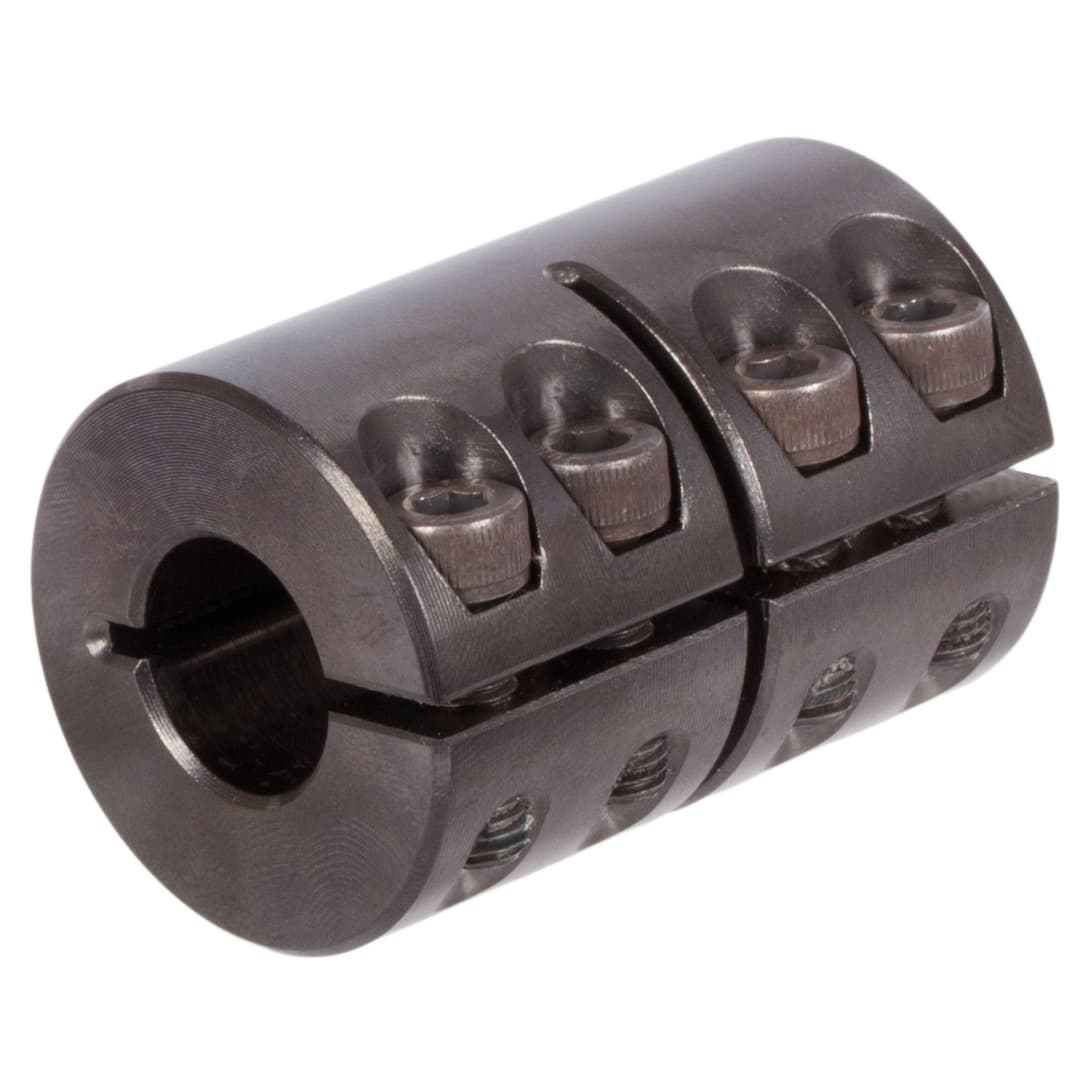

| Coupling type | Rigid one-piece stlye |
Material: Steel C45 burnished. Temperature range from -40°C to +175°C. Maximum speed 4000 rpm. The screws DIN 912 – 12.9 used in all couplings are covered with a layer of polyamide. Thus the bolts do not loosen with vibrations Bore tolerance: +0,051 mm. Feather Key Groove DIN 6885/1, Tolerance P9. The torques in the table are maximum values which can only be achieved with perfect mounting and dimensional accuracy of the shaft.
Semantically close products available for less — check the specs match your need.
| Electrically insulating | No |
| Material | Steel (1045) |
| Screw iso 4762 thread size x length | M 3 x 8 |
| Stainless | No |
| Surface | Black oxide finish |
| With keyway | Yes |
