Manufacturer part no. 60004000
Listed by MÄDLER at €164.13. Delivered to France, including shipping, VAT and any customs duty, it comes to about €214.96. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €164.13 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €35.83 |
| Total delivered | €214.96 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 6.2 kg |
| Bore diameter | 40 mm |
| Max misalignment angle | 0 ° |
| Max misalignment axial | 0 mm |
| Max misalignment radial | 0 mm |
| Max torque | 100 Nm |
| Number of allen bolts din 931 | 6 |
| Outer diameter | 110 mm |
| Temperature max. | 150 °C |
| Temperature min. | -40 °C |
| Total length | 160 mm |
| Coupling type | Rigid two-piece stlye |
| Electrically insulating | No |
| Material | Grey cast iron (A48) |

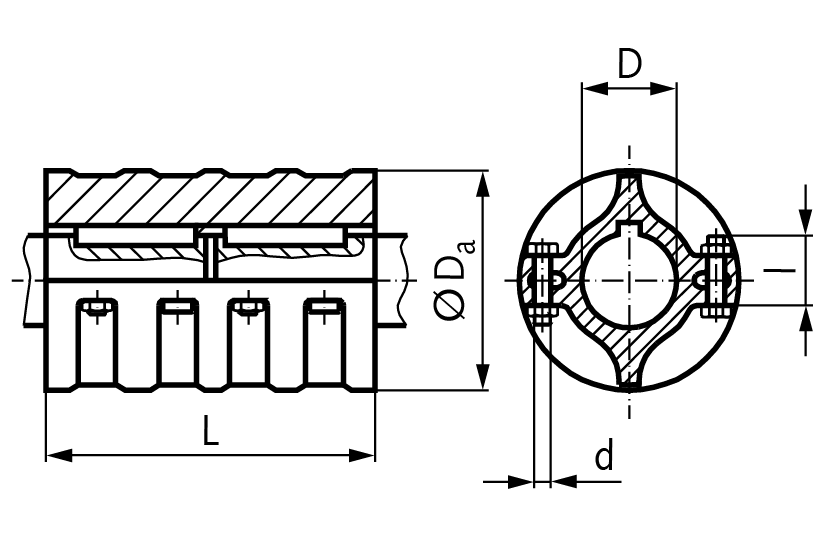

Material: GG25. Without protective jacket. Up to 50 mm bore the couplings are manufactured according to bore tolerance zone V7. For larger bores the fit is U7. All bores have a feather key grove according to DIN 6885/1. Recommended shaft tolerance: f7. A bearing must be placed right beside both ends of the coupling. Box couplings can be assembled and dismantled in radial direction without moving the shaft in vertical direction. Standard: Form A for shafts of the same diameter. On request: Form B for shafts of different diameters.
Semantically close products available for less — check the specs match your need.
| Max speed |
| 1420 min-1 |
| Stainless | No |
| Surface | Blank |
| With keyway | Yes |
