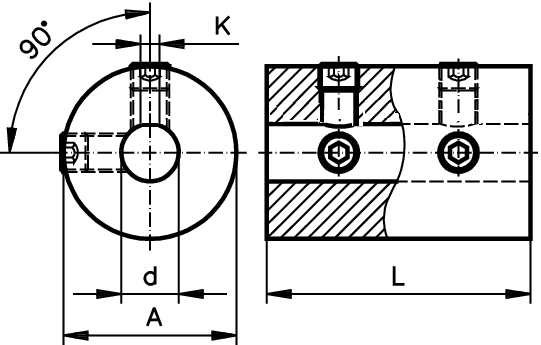

Set-screw coupling TR steel C45 black oxide finished bore 6mm without keyway
Manufacturer part no. 60010600
$36.28≈ 31.43 €
Price summary
Listed by MÄDLER at €31.43. Delivered to France, including shipping, VAT and any customs duty, it comes to about €55.72. Prices last checked on 2026-08-07.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €31.43 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.29 |
| Total delivered | €55.72 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 47 g |
Other characteristics
| Bore diameter | 6 mm |
| Max misalignment angle | 0 ° |
| Max misalignment axial | 0 mm |
| Max misalignment radial | 0 mm |
| Max speed | 4 U/min |
| Max torque | 4 Nm |
| Outer diameter | 18 mm |
| Temperature max. | 150 °C |
| Temperature min. | -40 °C |
| Tightening torque fastening screws | 2.2 Nm |
| Total length | 30 mm |
| Bolts din 916 | M 4 |
| Coupling type | Rigid one-piece stlye |
Description
Material: Steel C45, black oxide finish. These couplings do not allow any shaft displacement in axial or radial direction. They should therefore only be used with perfectly alligned shafts. Bore tolerance: +0,05 mm. The torques in the table are maximum values for couplings with keyway. The calculations based on feather-key connection. For couplings without keyway: The transmittable torque is lower and depends on how far the set screws penetrate the shaft.
