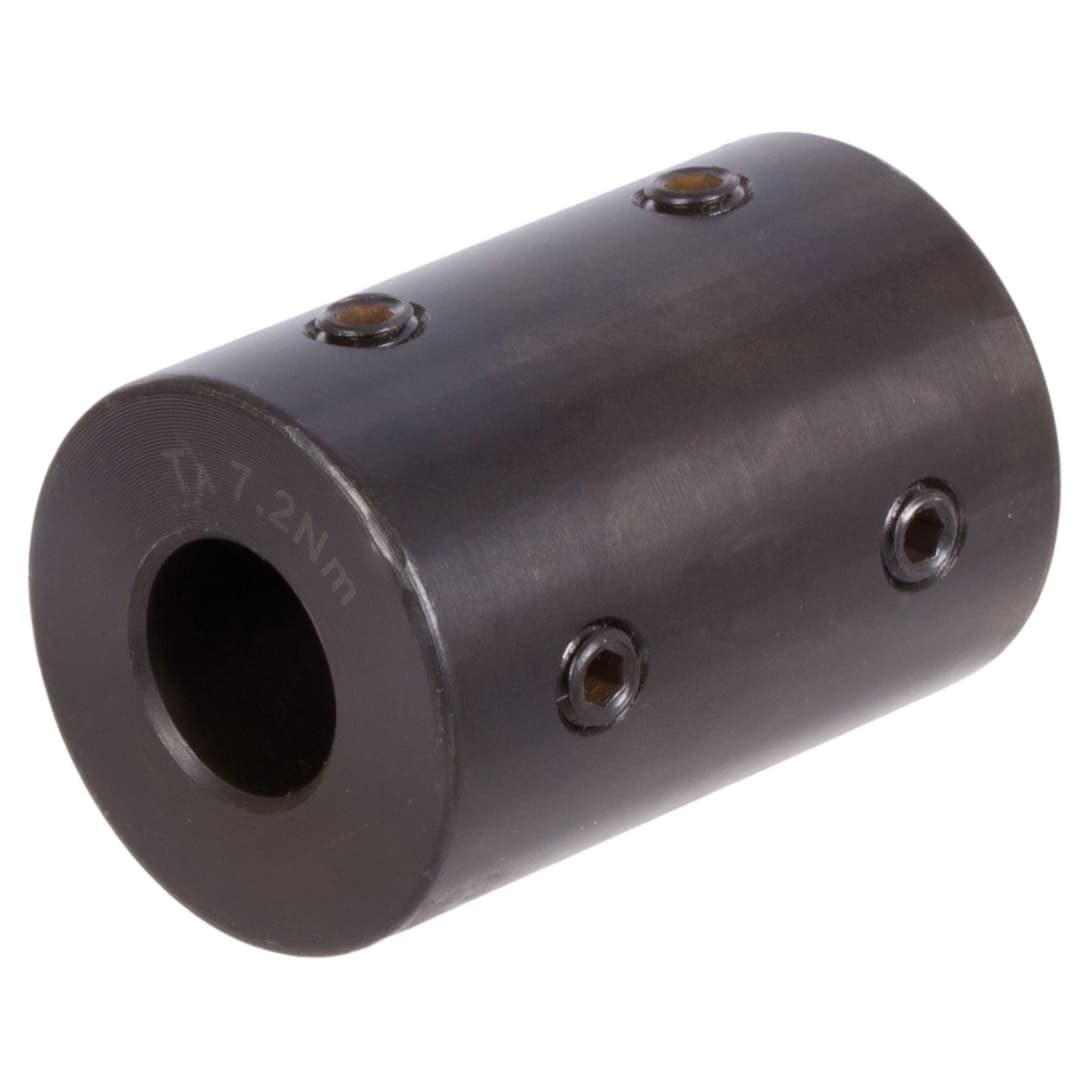

Set-screw coupling TR steel C45 black oxide finished bore 25mm without keyway
Manufacturer part no. 60012500
$68.77≈ 59.72 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €59.72 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.94 |
| Total delivered | €89.66 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 623 g |
Other characteristics
| Bore diameter | 25 mm |
| Max misalignment angle | 0 ° |
| Max misalignment axial | 0 mm |
| Max misalignment radial | 0 mm |
| Max speed | 4 U/min |
| Max torque | 135 Nm |
| Outer diameter | 45 mm |
| Temperature max. | 150 °C |
| Temperature min. | -40 °C |
| Tightening torque fastening screws | 17 Nm |
| Total length | 75 mm |
| Bolts din 916 | M 8 |
| Coupling type | Rigid one-piece stlye |
Description
Material: Steel C45, black oxide finish. These couplings do not allow any shaft displacement in axial or radial direction. They should therefore only be used with perfectly alligned shafts. Bore tolerance: +0,05 mm. The torques in the table are maximum values for couplings with keyway. The calculations based on feather-key connection. For couplings without keyway: The transmittable torque is lower and depends on how far the set screws penetrate the shaft.
