MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

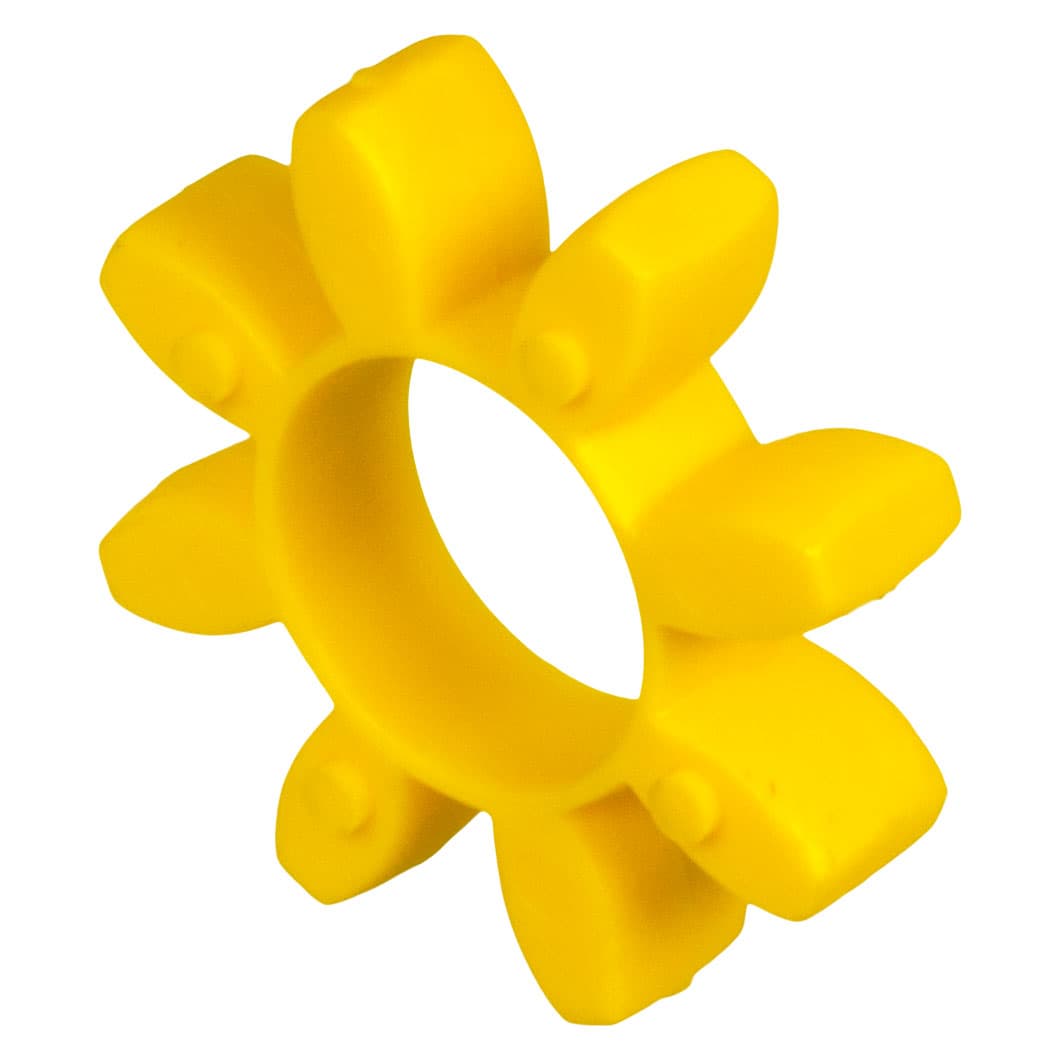

Spider (Coupling insert) standard 92 Shore A yellow size 55 outside diameter 120mm
Manufacturer part no. 60509255
$36.22≈ 31.45 €
In stock — 8 unitslead time 14 d
Estimated landed cost
| Item | €31.45 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.29 |
| Total delivered | €55.74 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 120 g |
Other characteristics
| Max alternating torque | 107 Nm |
| Max torque | 820 Nm |
| No of teeth | 8 |
| Nominal torque | 410 Nm |
| Outer diameter | 120 mm |
| Size | 55 |
| Torsional angle at max torque | 5 ° |
| Torsional angle at nominal torque | 3.2 ° |
| Material | Polyurethane (soft) |
| Surface | Blank |
Description
Material: Polyurethane, shore hardness 92° A (soft), yellow. Spiders (plastic inserts) for elastic couplings (jaw couplings) like RN, RNG, RNI, RNR, RNT and foreign parts of the same kind from other suppliers. Soft type, for common usage. Temperature range -40°C to +90°C. Sizes 7 and 9 fit to standard and backlash-free couplings and are delivered in yellow or white, depending on the producer.
