MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

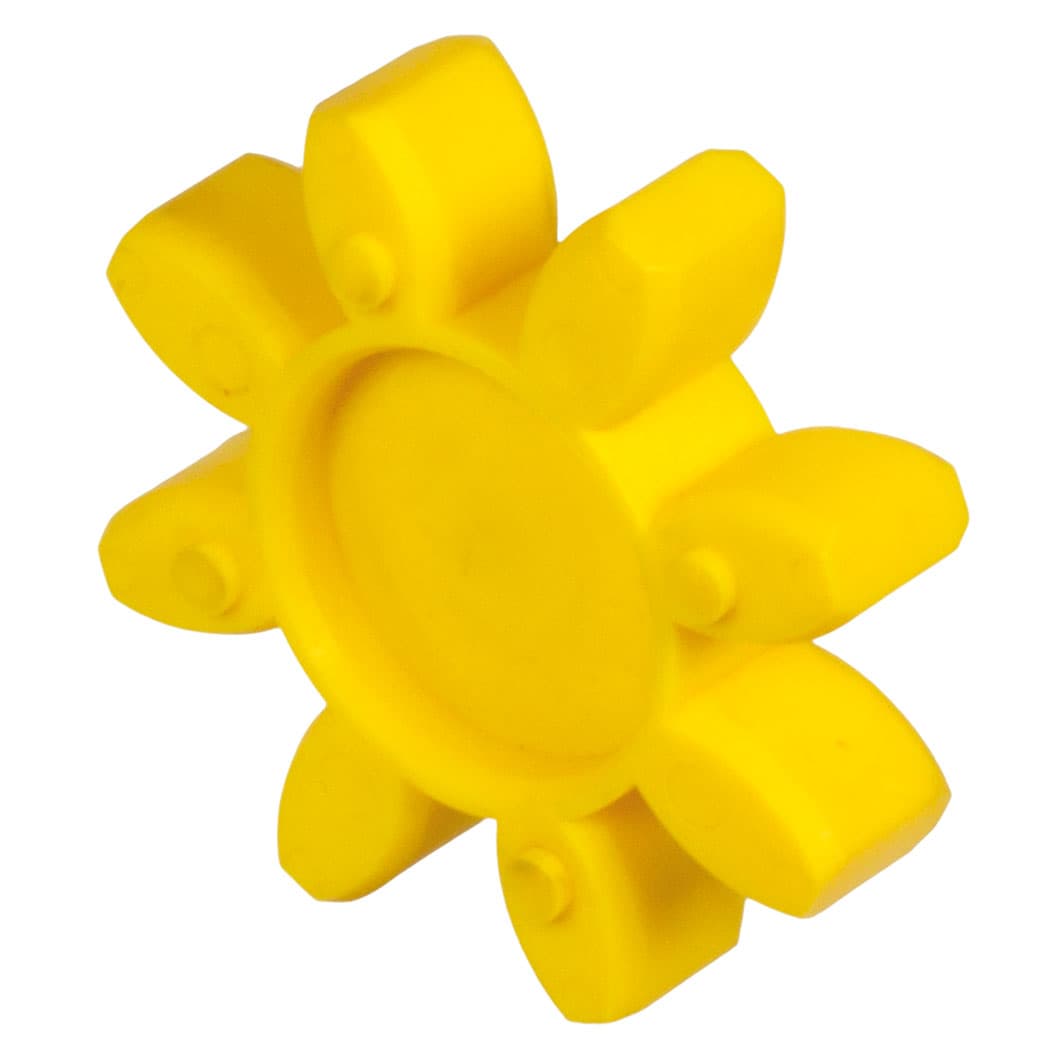

Spider (coupling insert) backlash-free 92 Shore A yellow size 55 outside diameter 120mm
Manufacturer part no. 60519255
$53.73≈ 46.66 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €46.66 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.33 |
| Total delivered | €73.99 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 115 g |
Other characteristics
| Max torque | 820 Nm |
| No of teeth | 8 |
| Nominal torque | 410 Nm |
| Outer diameter | 120 mm |
| Size | 55 |
| Stiffn radial | 2 982 N/mm |
| Tors spring stiffness dynam | 21 850 Nm/rad |
| Tors spring stiffness static | 9 500 Nm/rad |
| Material | Polyurethane (soft) |
| Surface | Blank |
Description
Material: Polyurethane, shore hardness 92° A (soft), yellow. Spiders (plastic inserts) for backlash-free elastic couplings (jaw couplings) like RNH, RNK, RNKC and foreign parts of the same kind from other suppliers. Soft type, for common usage. Temperature range -40°C to +90°C. Sizes 7 and 9 fit to standard and backlash-free couplings and are delivered in yellow or white, depending on the producer.
