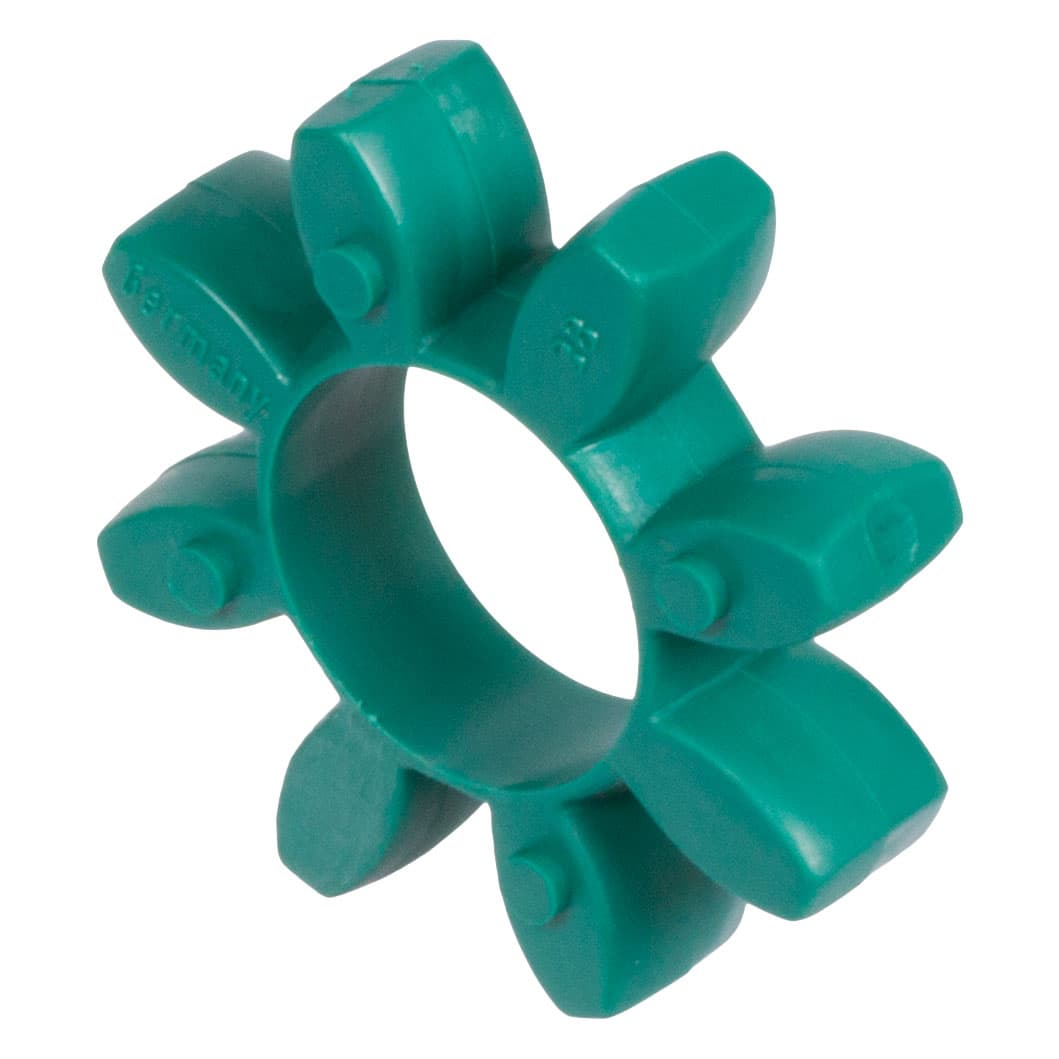

Spider (coupling insert) backlash-free 64 Shore D green size 14 outside diameter 30mm
Manufacturer part no. 60516414
$5.40≈ 4.81 €
Price summary
Listed by MÄDLER at €4.81. Delivered to France, including shipping, VAT and any customs duty, it comes to about €23.77. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €4.81 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.96 |
| Total delivered | €23.77 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4.6 g |
Other characteristics
| Max torque | 32 Nm |
| No of teeth | 4 |
| Nominal torque | 16 Nm |
| Outer diameter | 30 mm |
| Size | 14 |
| Stiffn radial | 856 N/mm |
| Tors spring stiffness dynam | 702 Nm/rad |
| Tors spring stiffness static | 234 Nm/rad |
| Material | Polyurethane (hard) |
| Surface | Blank |
Description
Material: Polyurethane, shore hardness 64° D (hard), green. Spiders (plastic inserts) for backlash-free elastic couplings (jaw couplings) like RNH, RNK, RNKC, connecting shafts RNW and foreign parts of the same kind from other suppliers. Hard type, for very high torques at small torsion angle. Temperature range -20°C to +100°C.
