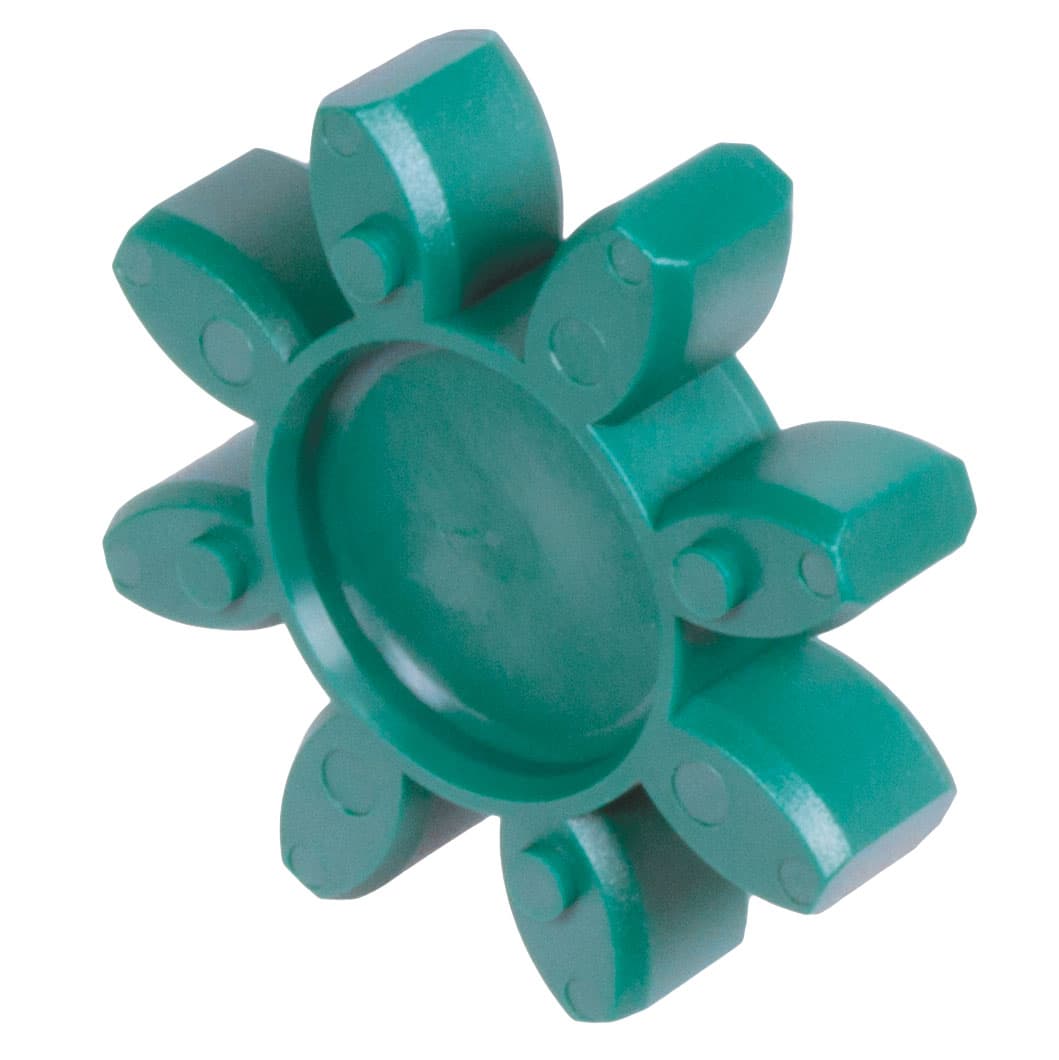

Spider (coupling insert) backlash-free 64 Shore D green size 28 outside diameter 65mm
Manufacturer part no. 60516428
$12.72≈ 11.05 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €11.05 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.21 |
| Total delivered | €31.26 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 29 g |
Other characteristics
| Max torque | 400 Nm |
| No of teeth | 8 |
| Nominal torque | 200 Nm |
| Outer diameter | 65 mm |
| Size | 28 |
| Stiffn radial | 4 348 N/mm |
| Tors spring stiffness dynam | 13 050 Nm/rad |
| Tors spring stiffness static | 4 350 Nm/rad |
| Material | Polyurethane (hard) |
| Surface | Blank |
Description
Material: Polyurethane, shore hardness 64° D (hard), green. Spiders (plastic inserts) for backlash-free elastic couplings (jaw couplings) like RNH, RNK, RNKC, connecting shafts RNW and foreign parts of the same kind from other suppliers. Hard type, for very high torques at small torsion angle. Temperature range -20°C to +100°C.
