Manufacturer part no. 60519900
Listed by MÄDLER at €25.26. Delivered to France, including shipping, VAT and any customs duty, it comes to about €48.31. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €25.26 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.05 |
| Total delivered | €48.31 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Torque | 152.955 kg·cm |
| Weight | 50 g |
| Bore length | 11 mm |
| Distance between hub and spider | 1.5 mm |
| Distance between the hubs | 13 mm |
| Hub diameter | 30 mm |
| Inner diameter spider | 10 mm |
| Max bore | 15 mm |
| Max misalignment angle | 1.2 ° |
| Max misalignment axial | 0.5 mm |
| Max misalignment radial | 0.17 mm |
| Max torque | 15 Nm |
| Min distance for dismantling | 11 mm |
| Nominal torque | 7.5 Nm |

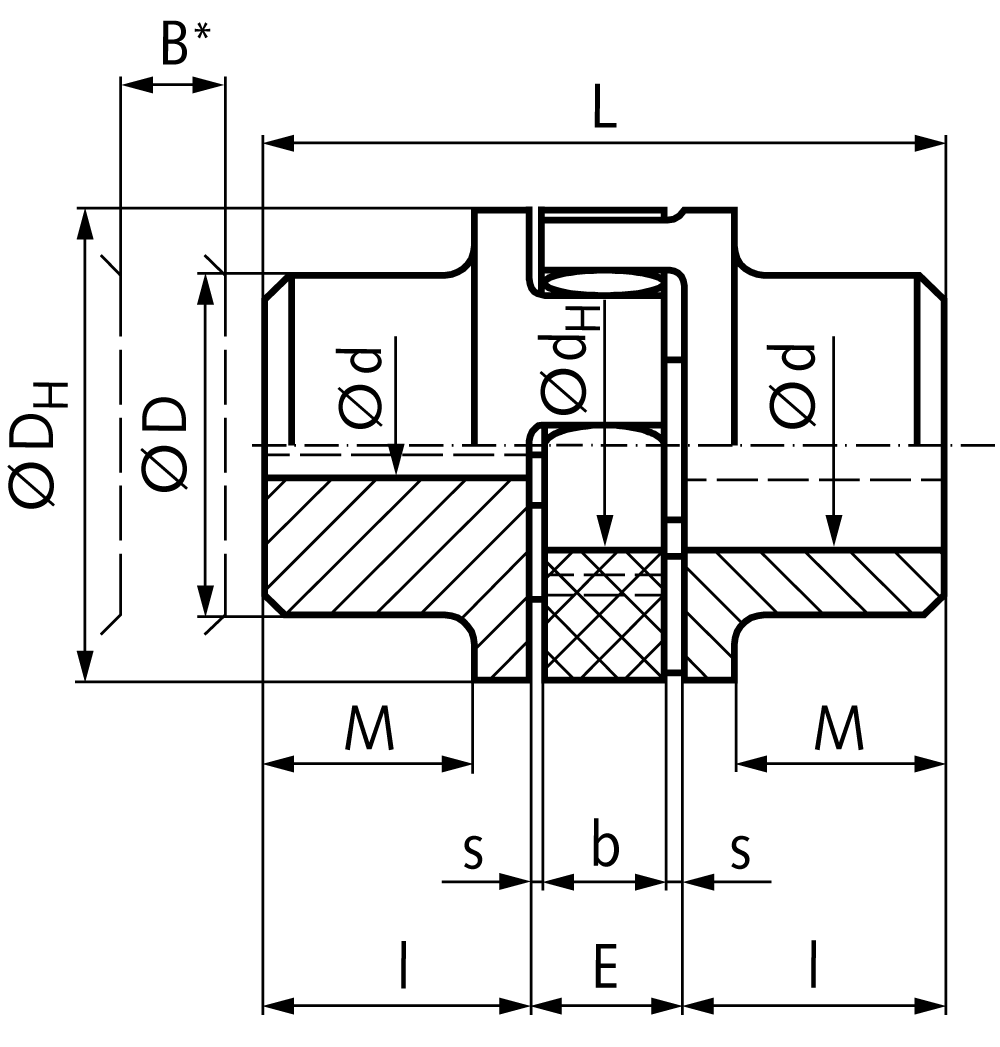

Material: Hubs made from aluminium, spider (elastic insert) made from polyurethane, Shore hardness 92°A, yellow. Spare part spiders available in Shore hardness 92°A, 98°A and 64°D. Couplings are available undrilled or pre-drilled ex stock. Customized bores and feather-key grooves available at extra charge. Temperature range: -40°C to +90°C. * B is the avarage dimension by which, e.g., a driven or driving machine has to be moved in order to demount one of the coupled units in vertical direction. 1) Weights refer to max. customized bore without keyways.
Semantically close products available for less — check the specs match your need.
| Outer diameter | 30 mm |
| Replacement spider 92 shore part no | 60 509 214 |
| Replacement spider 98 shore part no | 60 509 814 |
| Size | 14 |
| Spider width | 10 mm |
| Temperature max. | 90 °C |
| Temperature min. | -40 °C |
| Torsional angle at max nm | 10 |
| Total lenght | 35 mm |
| Bore pilot hole | Without bore mm |
| Coupling type | Elastic. angular/transv./long flexible |
| Electrically insulating | No |
| Material | Aluminum/Polyurethane |
| Max speed at 30 m s | 19000 min-1 |
| Stainless | Yes |
| Surface | Blank |
| With keyway | No |
