MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

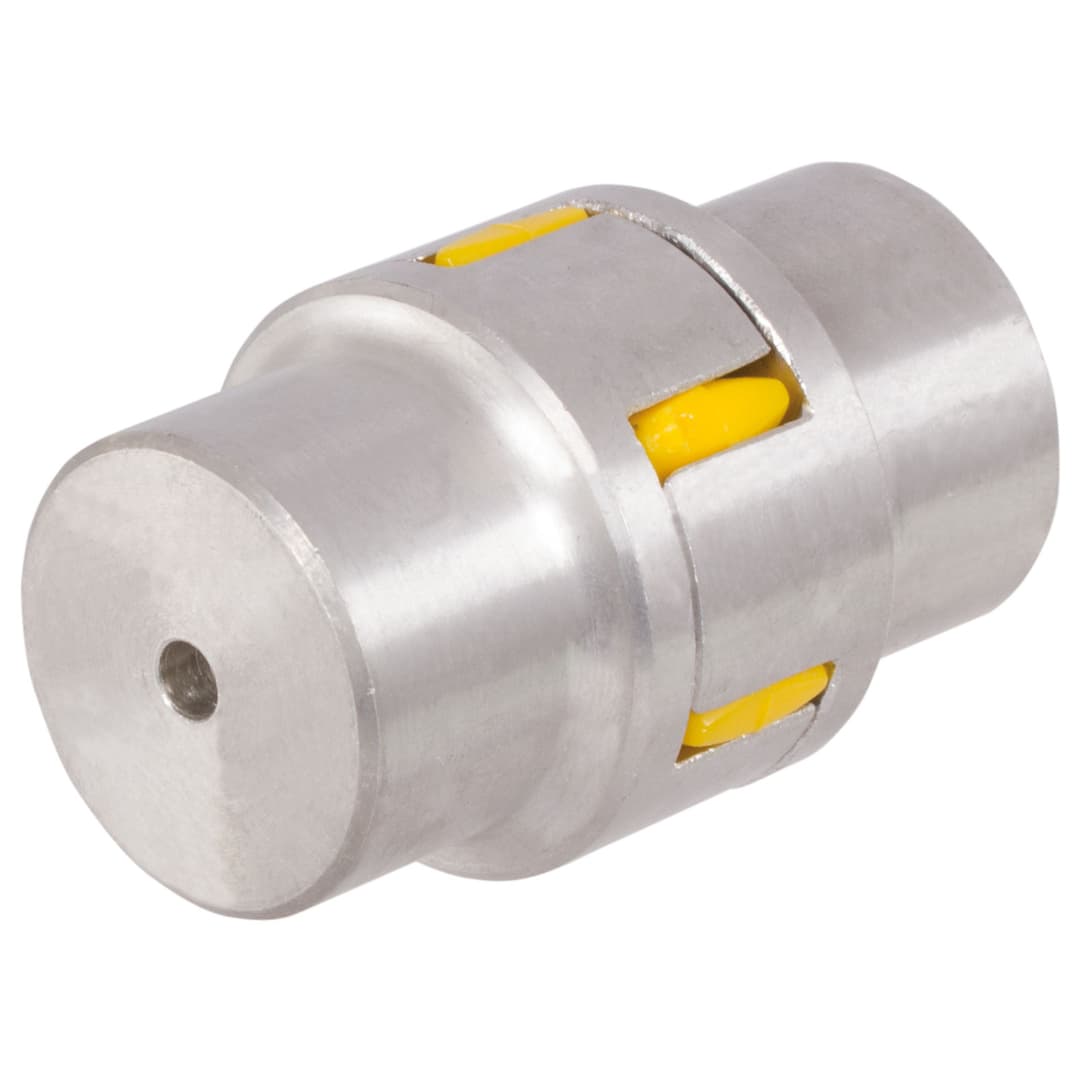

Elastic coupling RN size 28 max. torque 190Nm nominal torque 95Nm outer diameter 65mm overall length 90 mm with pilot bore insert 92° shore yellow
Manufacturer part no. 60520200
$41.76≈ 36.27 €
In stock — 24 unitslead time 14 d
Estimated landed cost
| Item | €36.27 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.25 |
| Total delivered | €61.52 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 1 937,4 kg·cm |
| Weight | 460 g |
Other characteristics
| Bore length | 35 mm |
| Bore pilot hole | 9 mm |
| Distance between hub and spider | 2.5 mm |
| Distance between the hubs | 20 mm |
| Hub diameter | 48 mm |
| Hub length up to flange | 28 mm |
| Inner diameter spider | 30 mm |
| Max bore | 28 mm |
| Max misalignment angle | 0.9 ° |
| Max misalignment axial | 1.5 mm |
| Max misalignment radial | 0.25 mm |
| Max torque | 190 Nm |
Description
Material: Hubs made from aluminium, spider (elastic insert) made from polyurethane, Shore hardness 92°A, yellow. Spare part spiders available in Shore hardness 92°A, 98°A and 64°D. Couplings are available undrilled or pre-drilled ex stock. Customized bores and feather-key grooves available at extra charge. Temperature range: -40°C to +90°C. * B is the avarage dimension by which, e.g., a driven or driving machine has to be moved in order to demount one of the coupled units in vertical direction. 1) Weights refer to max. customized bore without keyways.
