MÄDLERMÄDLER· Mechanics & transmission

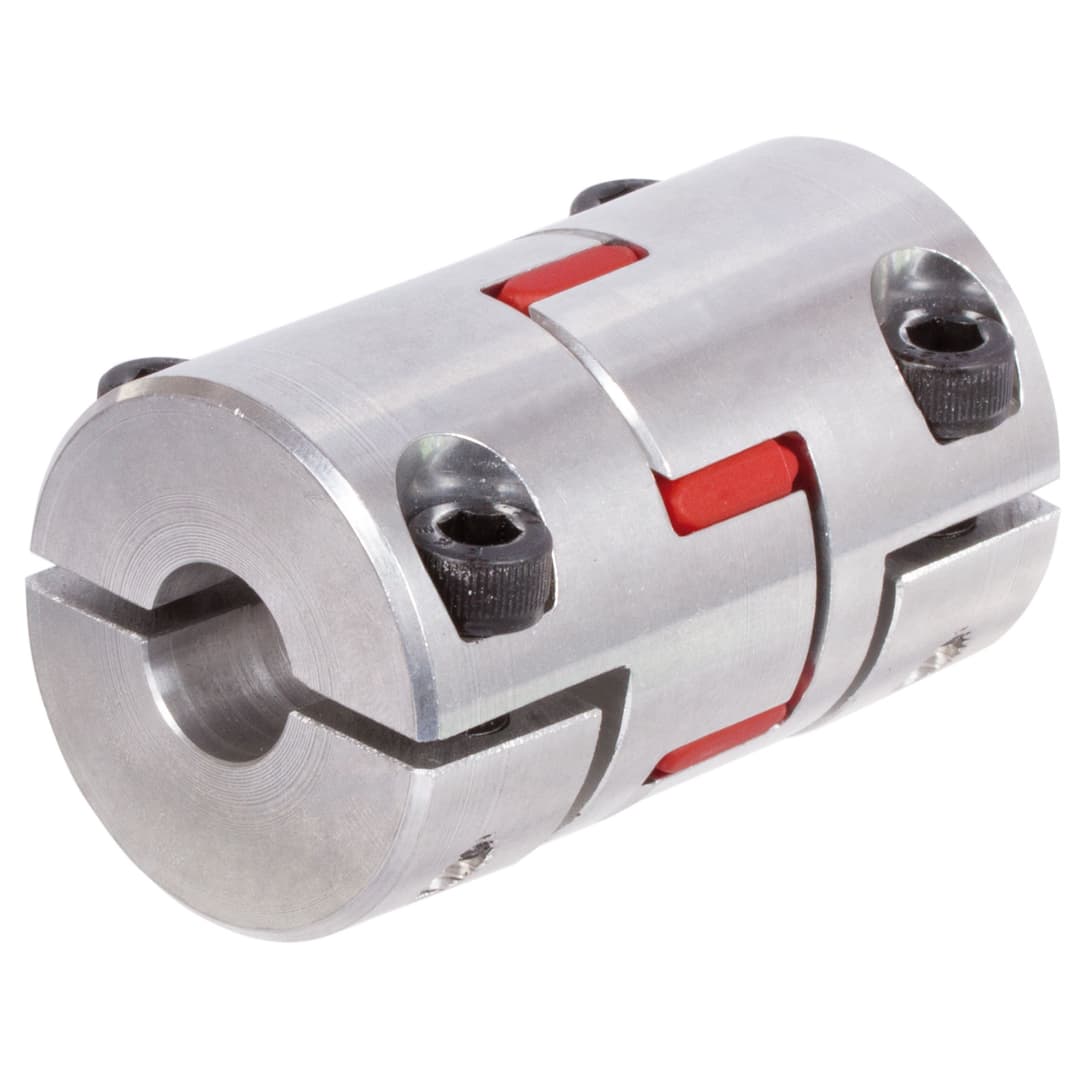

Elastic coupling RNK with clamp hubs backlash-free size 42 prebore 20mm (no H7) outer diameter 95mm overall length 126mm insert 98° shore red
Manufacturer part no. 60544220
$364.70≈ 315.98 €
Price summary
Listed by MÄDLER at €315.98. Delivered to France, including shipping, VAT and any customs duty, it comes to about €397.18. Prices last checked on 2026-08-07.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €315.98 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €66.20 |
| Total delivered | €397.18 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.7 kg |
Other characteristics
| Bore length | 50 mm |
| Distance between the hubs | 26 mm |
| Max bore | 50 mm |
| Max misalignment angular | 0.9 |
| Outer diameter | 95 mm |
| Replacement spider | 60 519 842 |
| Size | 42 |
| Temperature max. | 90 °C |
| Temperature min. | -30 °C |
| Total length | 126 mm |
| Bore | 20* mm |
| Coupling type | Elastic. angular/transv./long flexible |
| Electrically insulating | No |
| Material |
Description
Material: Hubs made from Aluminium. Spider made from Polyurethane. Size 5 – 9: Shore hardness 92°A (gelb oder weiß). From size 14: Shore hardness 98°A (red). – Zero backlash, insertable elastic coupling. – With clamps, ready-to-install for rapid mounting. – Many different sizes and diameters available. – From size 14 can be exchanged with couplings RN, RNH and couplings from many other suppliers. On request with soft spiders 92°A. Temperature range: -30°C to +90°C. Note: Bores with * are pilot bores (not H7). The torque depends on the size of the finished bore.
