MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

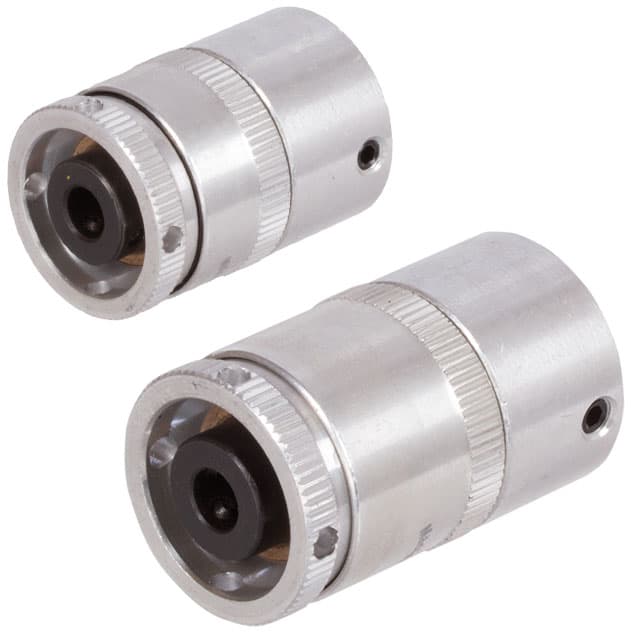

Friction clutch R2 with 2 friction lamellas type B bore 6mm
Manufacturer part no. 61042300
$109.30≈ 94.92 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €94.92 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €21.98 |
| Total delivered | €131.90 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 50 g |
Other characteristics
| Bore side 1 b1 0 03 0 | 6 mm |
| Bore side 2 b1 0 03 0 | 6 mm |
| No of clutch disks pcs | 2 |
| Outer diameter | 25.8 mm |
| Total length | 36 mm |
| Adjustment screw side 2 | M 4×4. 2×90° |
| Adjustment screw size side 1 | M 3×3. 2×90º |
| Material | Aluminum / Steel |
| Surface | Iridite NCP finish |
| Type | B |
Description
Material: Housing made of aluminium alloy with iridite NCP finish. Inner hub made of steel. For connecting to shafts. The construction is simple and basically consists of 4 or 6 clutch plates which are connected to the inner hub and held by the outer housing. Max. slip-speed 1000 rpm. Torsional backlash of the coupling below 2°. Torque range with 2 friction plates 2.4 Ncm to 53.8 Ncm. Torque range with 6 friction plates 7.8 Ncm to 132.4 Ncm. Maximum operating temperature 80°C. An adjusting ring – screwed to the outer body – serves to adjust the torque. Two sintered bearing sleeves serve as bearing housing to inner component. An O-ring seals the hub off against dirt.
