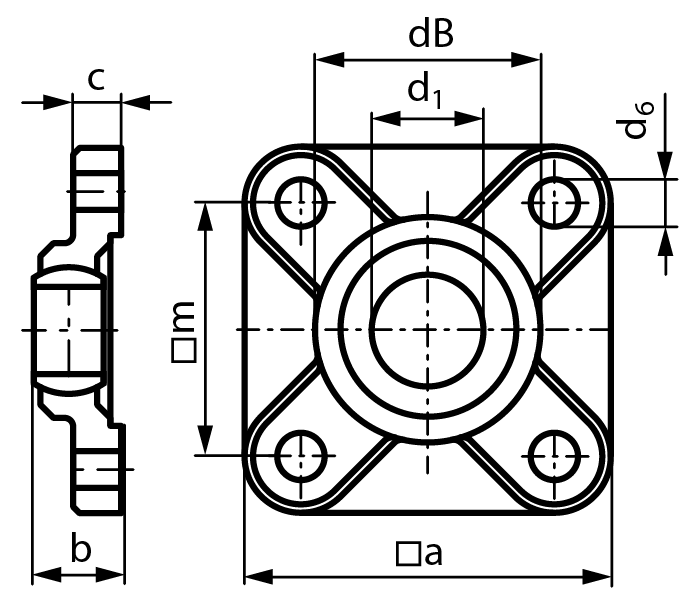

Flange block bearing igus igubal EFSM-05 4 mounting holes bore 5mm

MÄDLERMÄDLER· Mechanics & transmission

Flange block bearing igus igubal EFSM-05 4 mounting holes bore 5mm

Name: Flange block bearing igus igubal EFSM-05 4 mounting holes bore 5mm
Brand: MÄDLER
Price: 8.35 USD
Availability: InStock

Manufacturer part no. 62155005

$8.35≈ 7.44 €

Price summary

Listed by MÄDLER at €7.44. Delivered to France, including shipping, VAT and any customs duty, it comes to about €26.93. Prices last checked on 2026-10-04.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

In stock — 2 unitslead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€7.44
Shipping	€15.00
VAT (20%)	€4.49
Total delivered	€26.93

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Mechanical

Weight

2.7 g

Other characteristics

Bore diameter	5 mm
Load rating axial static	150 N
Load rating radial static	500 N
Tilt angel	29 °
Material	Plastic
Surface	Blank

Description

Material spherical ball: iglidur® W300, yellowish. Material housing: igumid® G, black. Maintenance-free, silent running and anti-vibrating. High strength at very low weight. Resistant against corrosion and many chemicals. Electrical and thermal isolating. The shaft must rotate inside the bore of the spherical ball. With a metal shaft, a sliding speed up to 30 m/min. may be possible. The spherical ball may only compensate shaft misalignement. Temperature range: -30º to +80ºC.
