MÄDLERMÄDLER· Fastening Elements

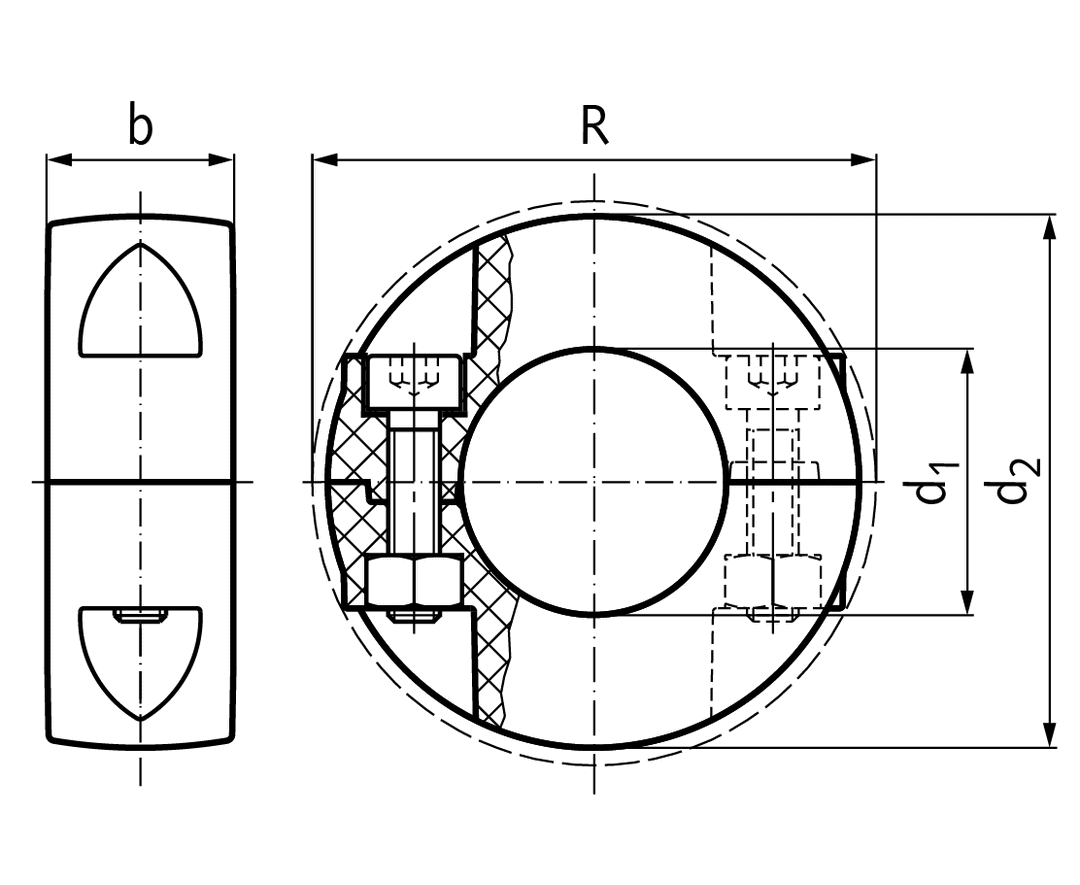

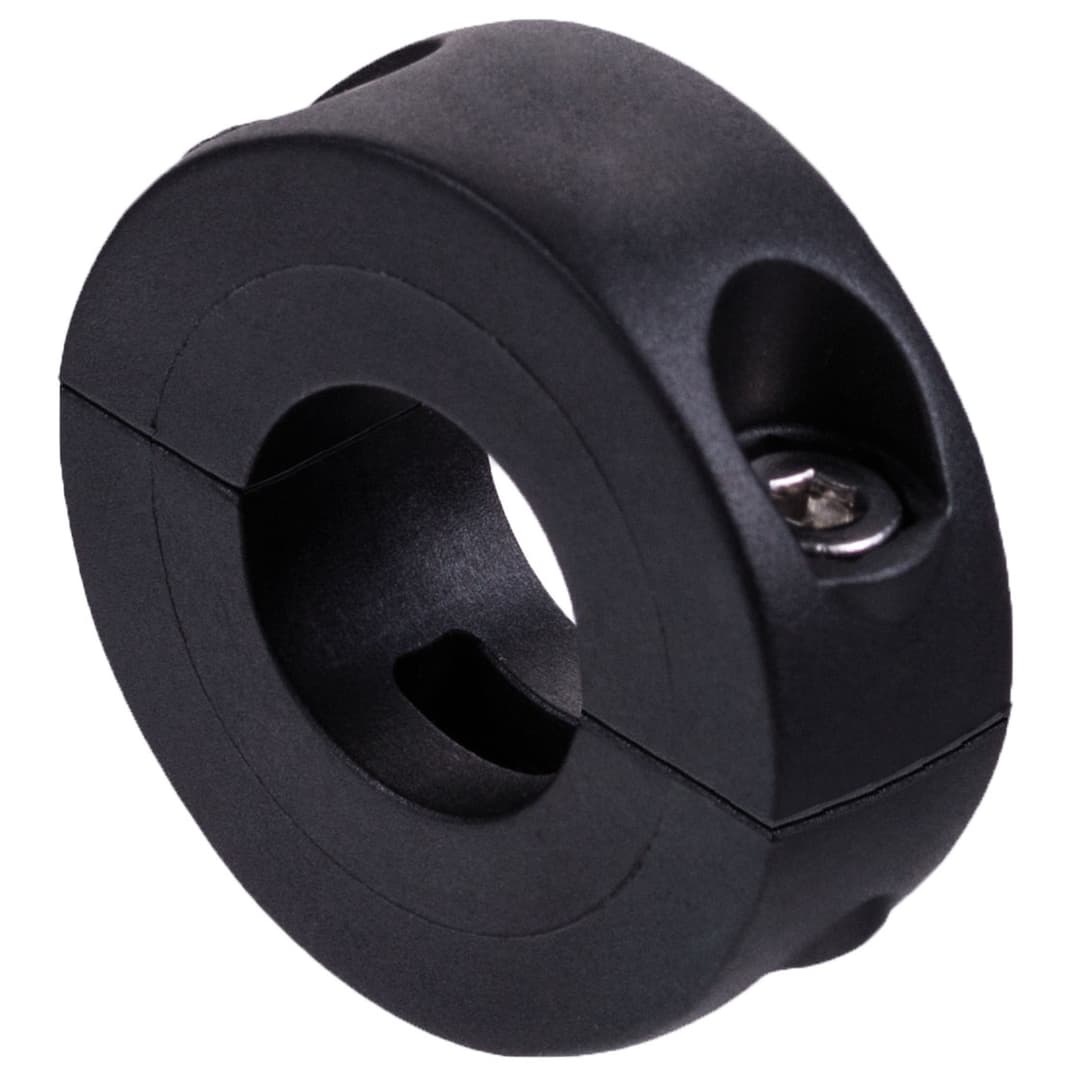

Clamp collar double-split plastic PA reinforced black-grey bore 20mm
Manufacturer part no. 62355020
$11.04≈ 9.59 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €9.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.92 |
| Total delivered | €29.51 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 19 g |
Other characteristics
| Inner diameter | 20 mm |
| Outer diameter | 40 mm |
| Tightening torque | 2 Nm |
| Width | 14 mm |
| Bolts din 912 | M 4 |
| Material | Polyamide (PA) |
| Surface | Matt finish |
Description
Material: Technopolymer (Polyamide PA), glas fibre reinforced, black-grey, mat. Screws and nuts stainless steel 1.4404. Features: Strong version with metal nuts. Easy to mount and quickly to adjust. Does not damage the shaft. Even distribution of clamping force. Low mass inertia. Suitable for use in corrosive atmospheres. Temperature range: up to +80ºC.
