Clamp collar double-split plastic PA reinforced black-grey bore 30mm

MÄDLERMÄDLER· Mechanics & transmission

Clamp collar double-split plastic PA reinforced black-grey bore 30mm

Name: Clamp collar double-split plastic PA reinforced black-grey bore 30mm
Brand: MÄDLER
Price: 12.54 USD
Availability: InStock

Manufacturer part no. 62355030

$12.54≈ 11.17 €

Price summary

Listed by MÄDLER at €11.17. Delivered to France, including shipping, VAT and any customs duty, it comes to about €31.40. Prices last checked on 2026-10-05.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

In stock — 13 unitslead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€11.17
Shipping	€15.00
VAT (20%)	€5.23
Total delivered	€31.40

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

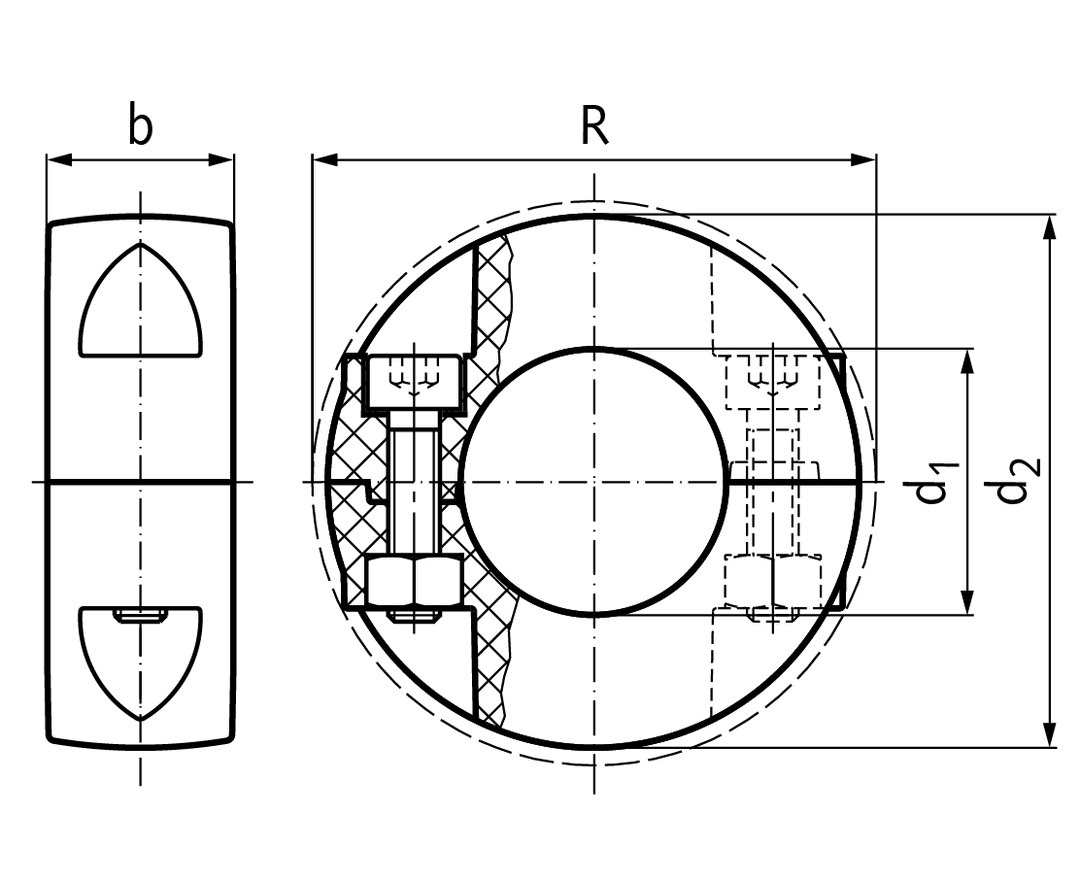

Mechanical

Weight

29 g

Other characteristics

Inner diameter	30 mm
Outer diameter	50 mm
Tightening torque	3 Nm
Width	14 mm
Bolts din 912	M 5
Material	Polyamide (PA)
Surface	Matt finish

Description

Material: Technopolymer (Polyamide PA), glas fibre reinforced, black-grey, mat. Screws and nuts stainless steel 1.4404. Features: Strong version with metal nuts. Easy to mount and quickly to adjust. Does not damage the shaft. Even distribution of clamping force. Low mass inertia. Suitable for use in corrosive atmospheres. Temperature range: up to +80ºC.
