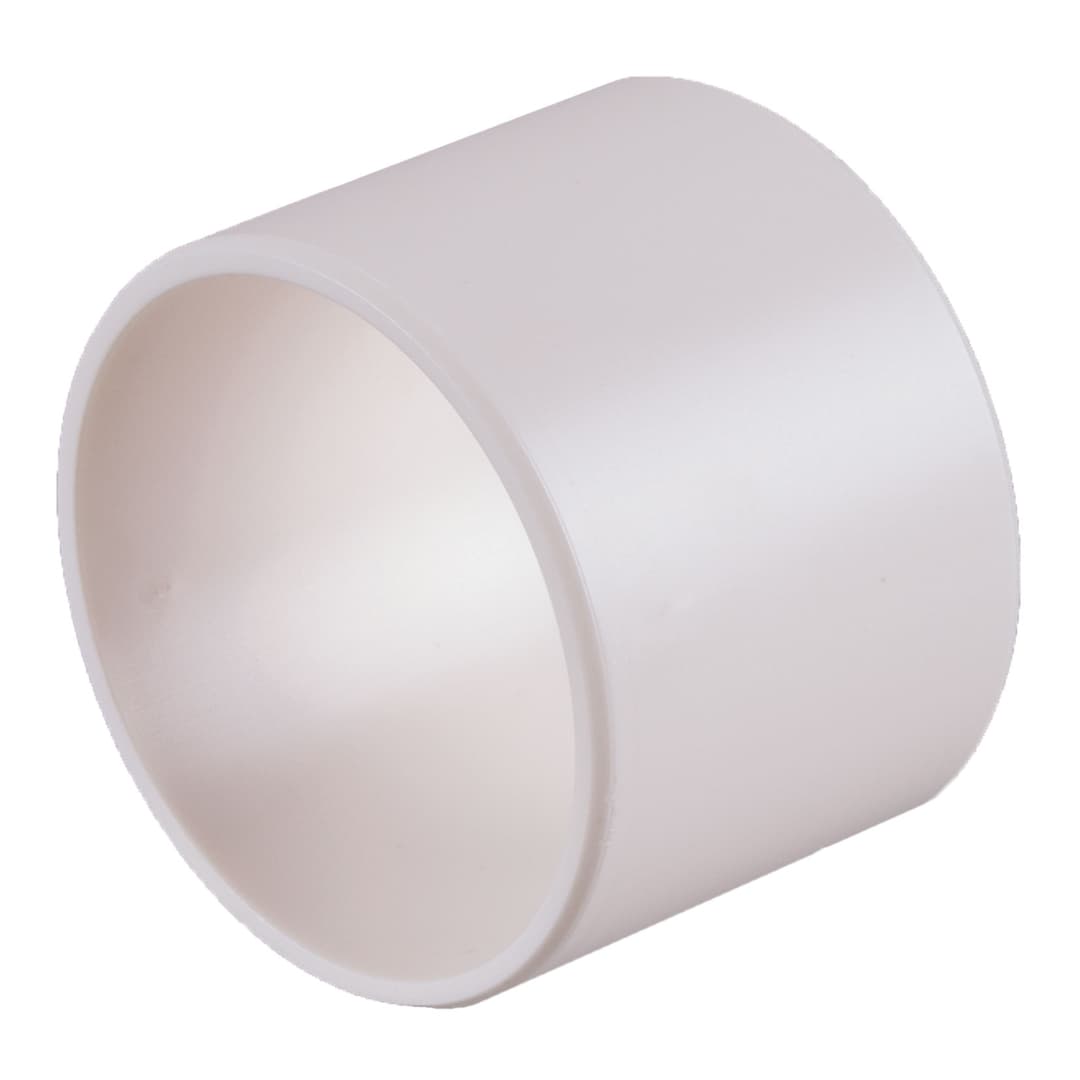

Bush EP22 bore 16mm outer diameter 18mm length 25mm colour: white

MÄDLERMÄDLER· Mechanics & transmission

Bush EP22 bore 16mm outer diameter 18mm length 25mm colour: white

Name: Bush EP22 bore 16mm outer diameter 18mm length 25mm colour: white
Brand: MÄDLER
Price: 3.33 USD
Availability: InStock

Manufacturer part no.

Price summary

Listed by MÄDLER at €2.97. Delivered to France, including shipping, VAT and any customs duty, it comes to about €21.56. Prices last checked on 2026-10-05.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

Estimated landed cost

Landed cost breakdown
Item	€2.97
Shipping	€15.00
VAT (20%)	€3.59
Total delivered	€21.56

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Specifications (automatically extracted)

Mechanical

Weight

1.8 g

Other characteristics

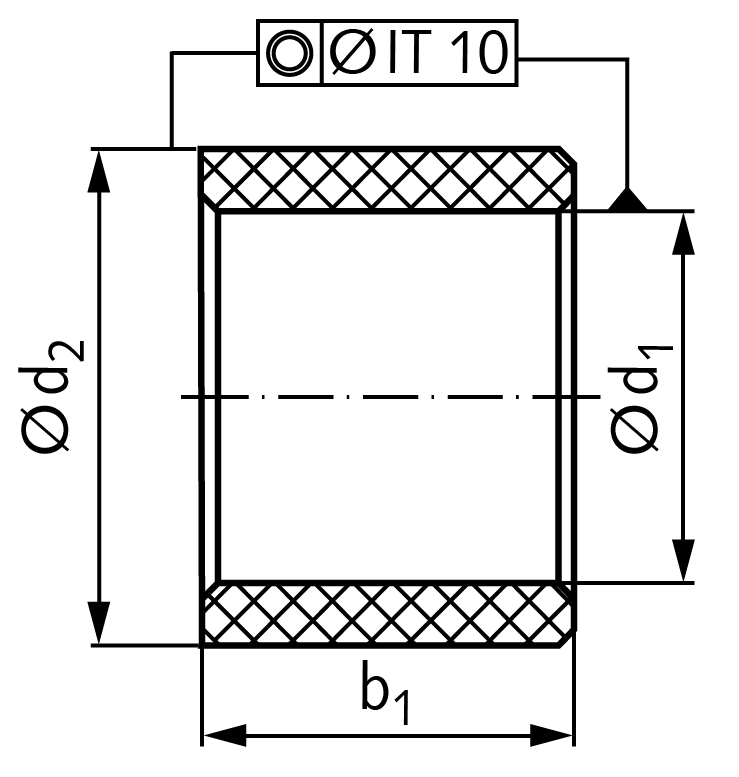

Inner diameter	16 mm
Length	25 mm
Minus allowance d1	0.032 mm
Outer diameter	18 mm
Plus allowance d1	0.102 mm
Material	Plastic (up to 170°C, surface pressure 50 N/mm²)
Surface	Blank

Description

Material: Thermoplast polybutylenterephthalat, modified (PBT + PTFE), white. Plain bearing bush made from thermoplastic with high dimension accuracy. Low friction. Specially suited for dry-running and for use at very low up to middle high temperatures. Good price/perfomance ratio with high dimension accuracy. Low friction, suitable also for lubrication-free running. Temperature range -50ºC bis + 170ºC. Operating Conditions: dry : very good. oiled: good. water: very good. field of aplication:Domestic appliances, chemical equipment, office equipment, sports equipment, automotive (pedals, steering, axes) and many more.
