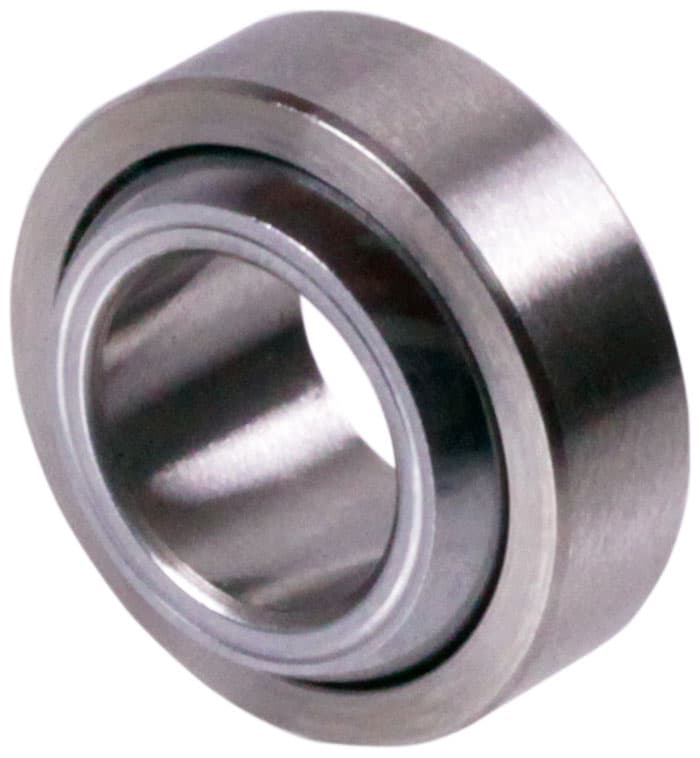

Radial spherical bearing DIN ISO 12240-1-E type GE…UK maintenance-free bore 10mm outer diameter 19mm stainless
Manufacturer part no. 63399710
$43.39≈ 37.68 €
Price summary
Listed by MÄDLER at €37.68. Delivered to France, including shipping, VAT and any customs duty, it comes to about €63.22. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €37.68 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.54 |
| Total delivered | €63.22 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 11 g |
Other characteristics
| Bearing shell width | 6 mm |
| Inner diameter | 10 mm |
| Outer diameter | 19 mm |
| Outer diameter from inner ring | 16 mm |
| Tilt angel | 12 ° |
| Total width | 9 mm |
| Material | Stainless steel (440C) |
| Surface | Blank |
Description
Material: Inner ring stainless steel 1.4125, AISI 440 C (from size 45 stainless steel 1.4112), hardened, ground and polished. Bearing shell stainless steel 1.4571 (AISI 316 Ti), with PTFE-lining. DIN ISO 12240-1 (DIN 648) series E (small version). Maintenance-free. Suitable for high unidirectional load. Sliding speed up to 10 m/min.
