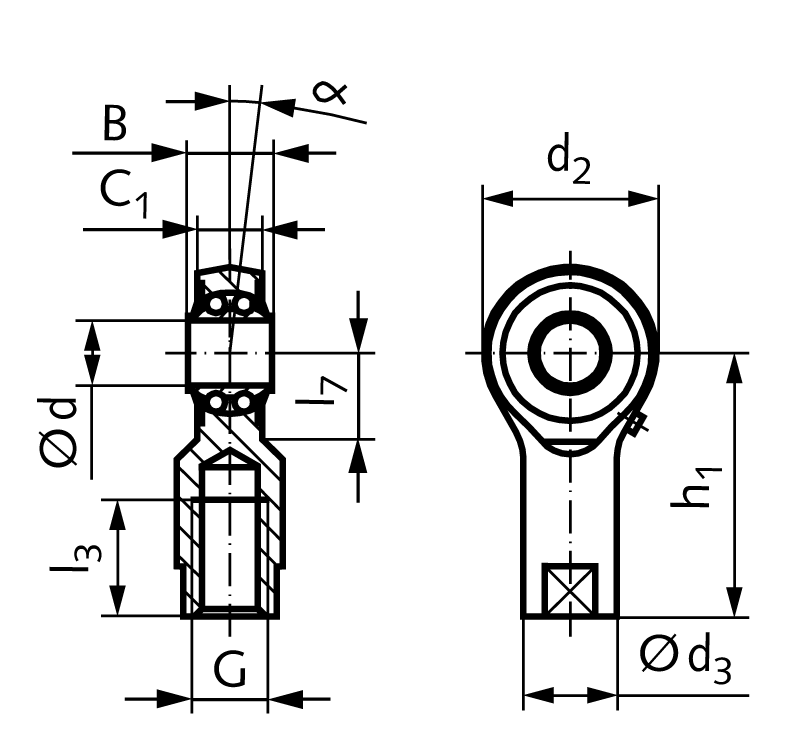

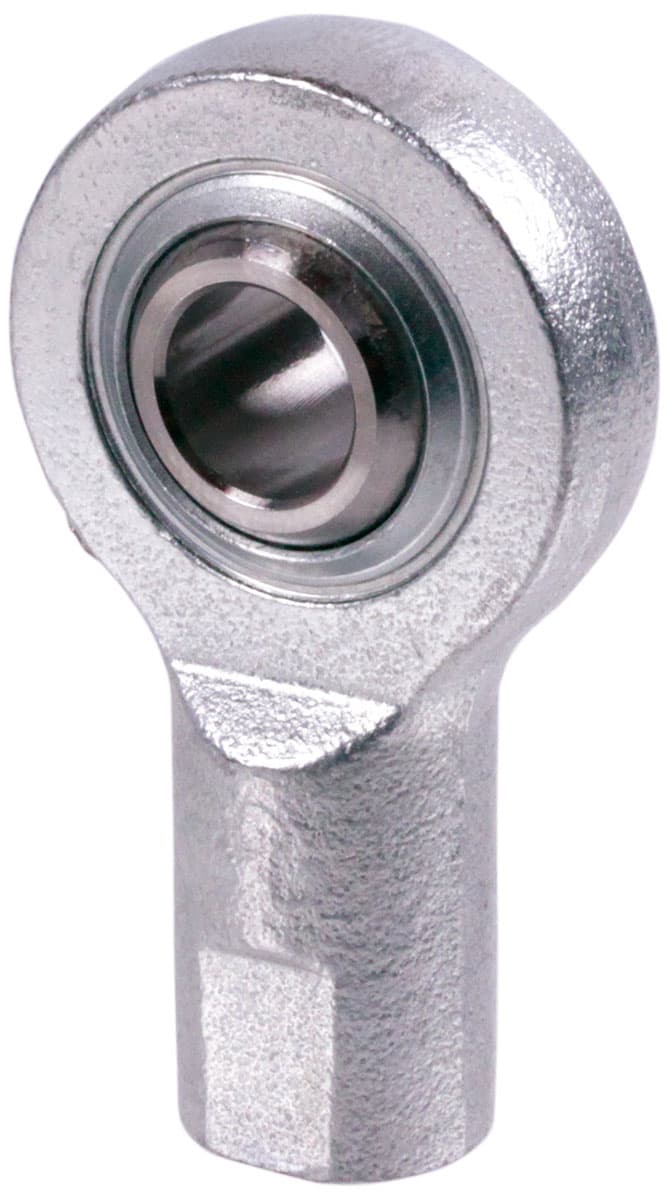

Rod end PF short version bore 10mm internal thread M8 left relubricateable
Manufacturer part no. 63446000
$95.80≈ 82.92 €
Price summary
Listed by MÄDLER at €82.92. Delivered to France, including shipping, VAT and any customs duty, it comes to about €117.50. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €82.92 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €19.58 |
| Total delivered | €117.50 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 63 g |
Other characteristics
| Bore | 10 mm |
| Calculation factor | 1.9 |
| Center distance to mounting surface | 38 mm |
| Load rating dyn | 2.6 kN |
| Outer diameter | 30 mm |
| Static load rating | 1 kN |
| Thread pitch | 1.25 mm |
| Tilt angel | 7 ° |
| Material | Steel |
| Max speed | 1225 min-1 |
| Surface | Zinc-plated |
| Thread size | M 8 mm |
| Thread type | left |
Description
Material: Outer part: Alloyed steel, forged, quenched and tempered. Bearing race hardened, ground and lapped. Surface zinc-plated and chromatised. Inner ring: Roller bearing steel, hardened, ground and polished. Lubrication: Aluminium-complex-soap-grease, approval according to NSF H1, -45ºC to +120ºC. Short version. Available only with internal thread. Thread either right-handed or left-handed. Heavy-duty rod ends with roller bearing. very light running (basically without friction). Long-term lubricated and sealed with cover plates.
