Manufacturer part no. 64602506VL
Listed by MÄDLER at €53.25. Delivered to France, including shipping, VAT and any customs duty, it comes to about €81.90. Prices last checked on 2026-10-01.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €53.25 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.65 |
| Total delivered | €81.90 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 540 g |
| Flange diameter | 62 mm |
| Flange width | 8 mm |
| For shaft diameter | 25 mm |
| Hole circle diameter of mounting holes | 51 mm |
| Length | 112 mm |
| Load rating dynamic | 1 570 N |
| Outer diameter | 40 mm |
| Static load rating | 3 140 N |
| Wrench size of square | 50 mm |
| Diameter of mounting holes d1 x d2 x h | 5.5 x 9 x 5.1 mm |
| Material | Steel / Plastic |
| Surface | Blank |

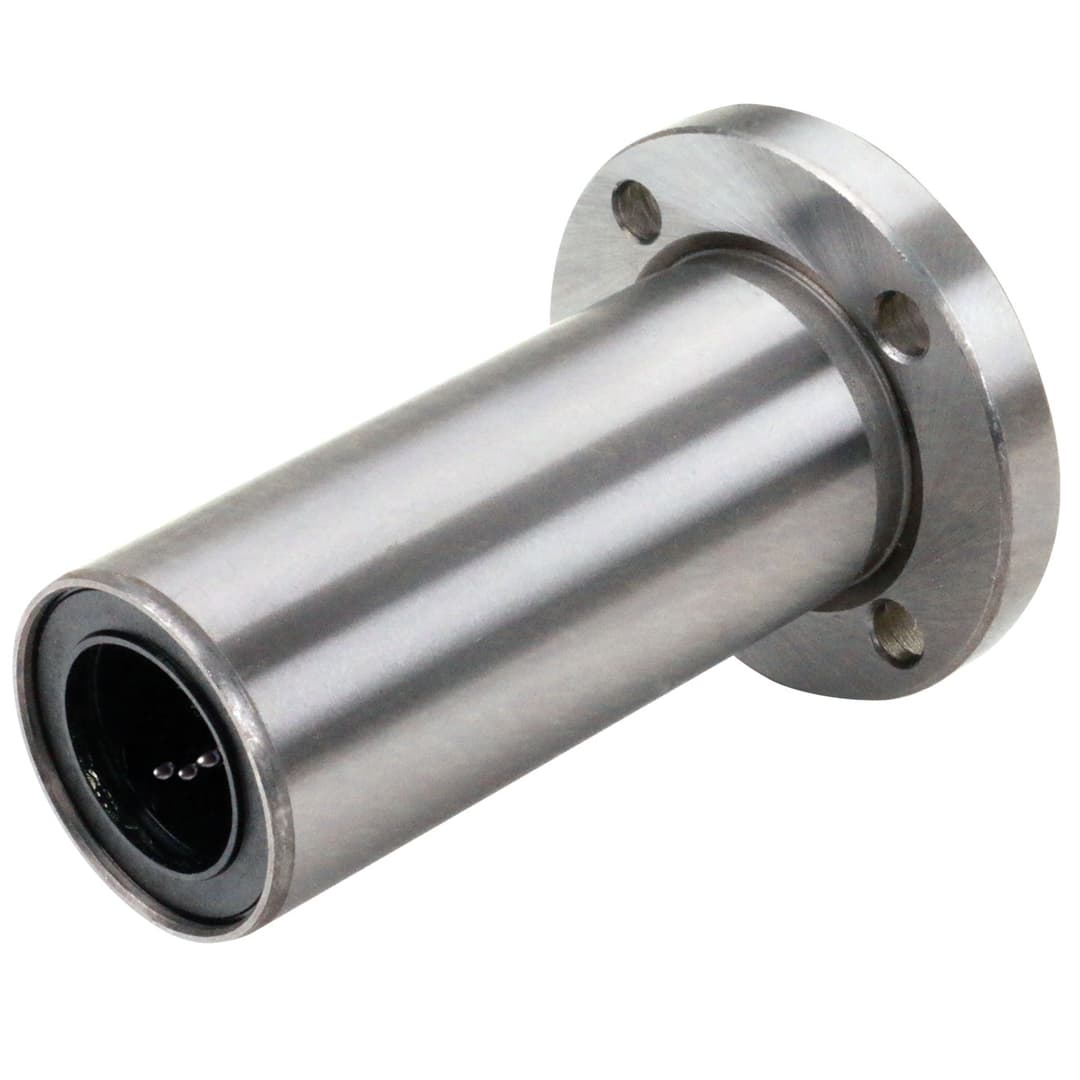

Material: With Steel jacket. Ball cage from plastic. The linear ball bearings are suitable for screwing onto components. Via the four mounting holes, the linear bearings can be mounted directly e. g. in machines.This ensures easy mounting and interchangeability. The bearings are greased at the factory. In order to prevent the ingress of dirt and the leakage of lubricant, the linear ball bearings are sealed on both sides. Recommended shaft tolerance h6, housing tolerance H7.
