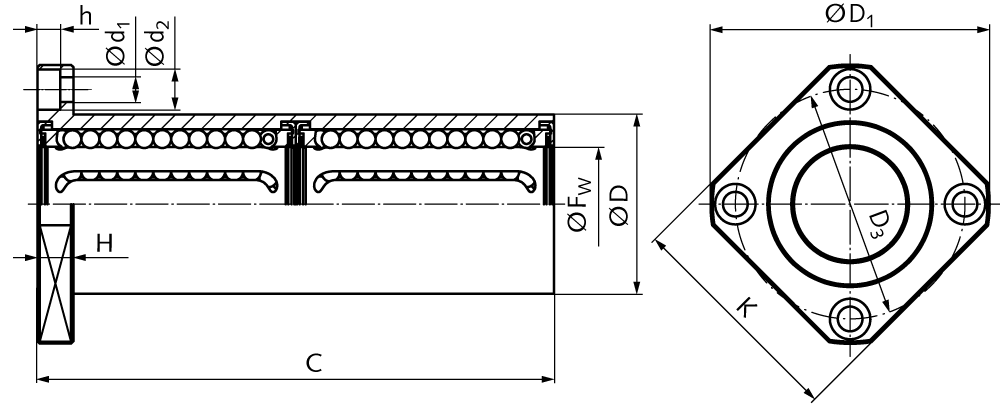

Tandem linear ball bearing KB-ST-VL with square flange sealed on both sides for shaft Ø 50mm long version
Manufacturer part no. 64605006VL
$240.47≈ 208.83 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €208.83 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €44.77 |
| Total delivered | €268.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.82 kg |
Other characteristics
| Flange diameter | 112 mm |
| Flange width | 13 mm |
| For shaft diameter | 50 mm |
| Hole circle diameter of mounting holes | 94 mm |
| Length | 192 mm |
| Load rating dynamic | 6 080 N |
| Outer diameter | 75 mm |
| Static load rating | 15 900 N |
| Wrench size of square | 88 mm |
| Diameter of mounting holes d1 x d2 x h | 9 x 14 x 8.1 mm |
| Material | Steel / Plastic |
| Surface | Blank |
Description

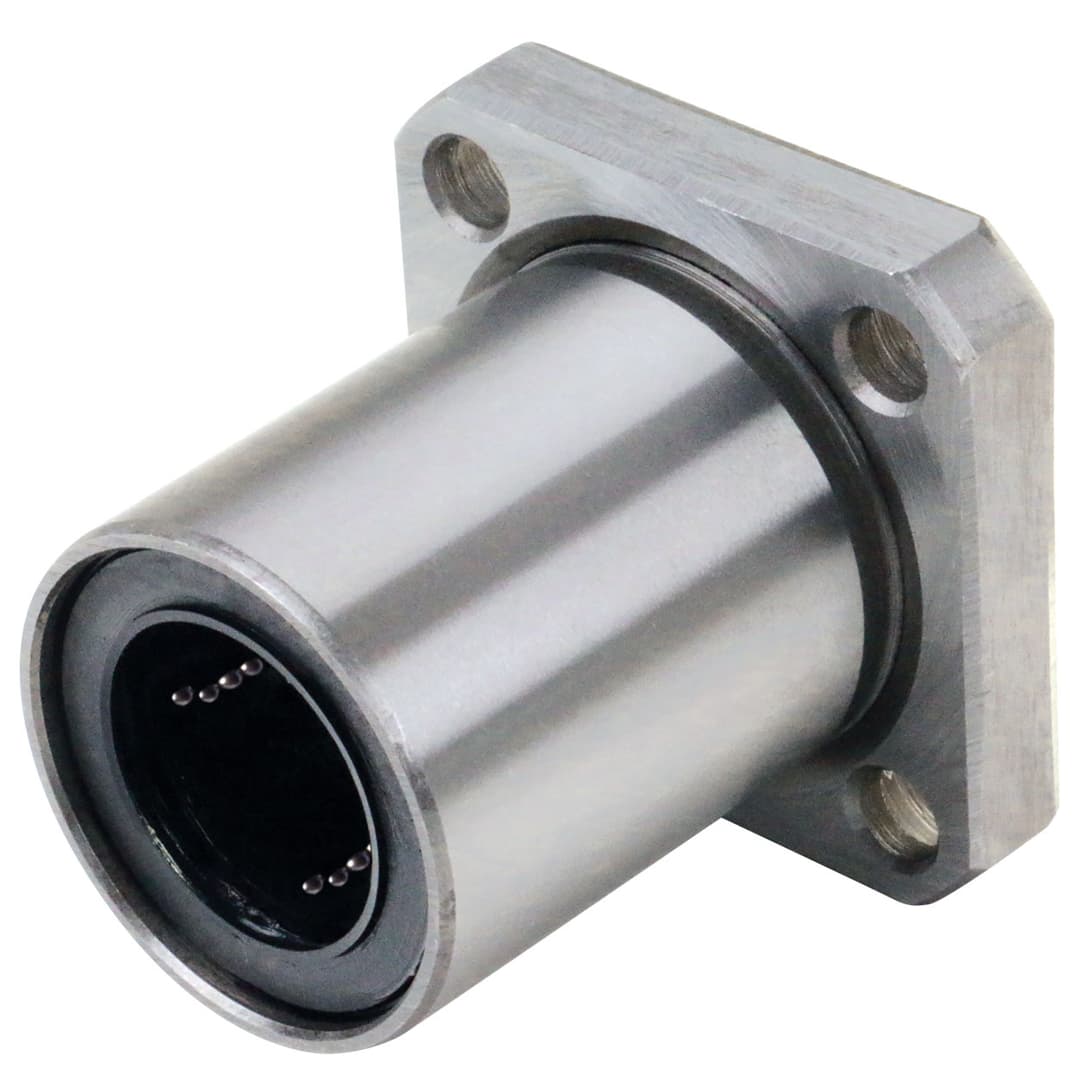

Material: With Steel jacket. Ball cage from plastic. The linear ball bearings are suitable for screwing onto components. Via the four mounting holes, the linear bearings can be mounted directly e. g. in machines.This ensures easy mounting and interchangeability. The bearings are greased at the factory. In order to prevent the ingress of dirt and the leakage of lubricant, the linear ball bearings are sealed on both sides. Recommended shaft tolerance h6, housing tolerance H7.
