MÄDLERMÄDLER· Linear Motion, Linear Bearings, Precision Rail Guides

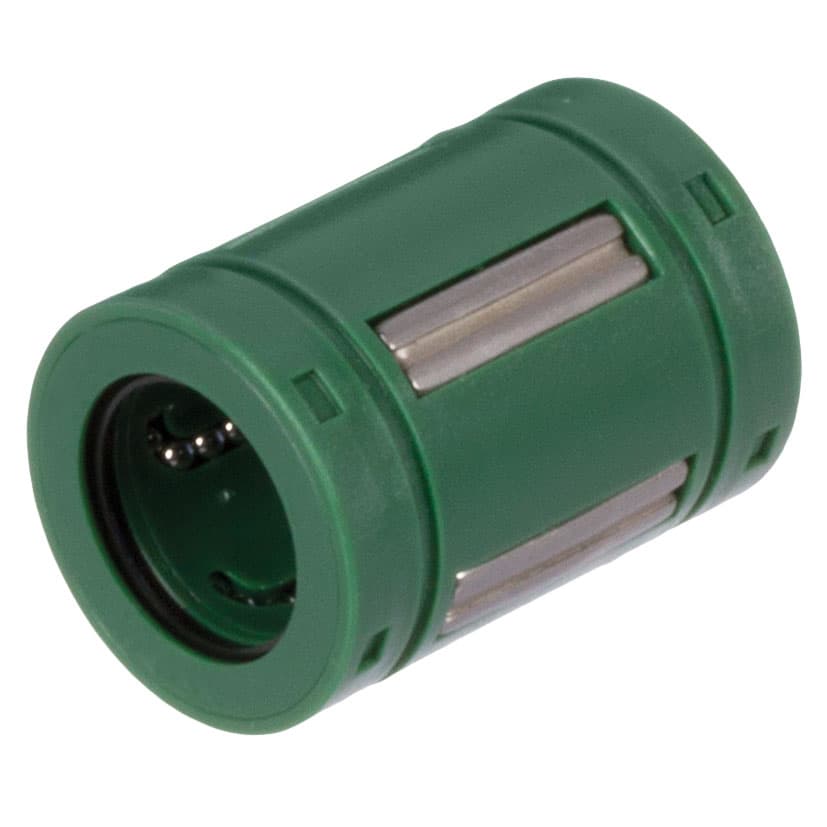

Linear bearing KB-3 ISO series 3 Easy-Line with seals for shaft Ø 40mm
Manufacturer part no. 64614002
$101.08≈ 87.78 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €87.78 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.56 |
| Total delivered | €123.34 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

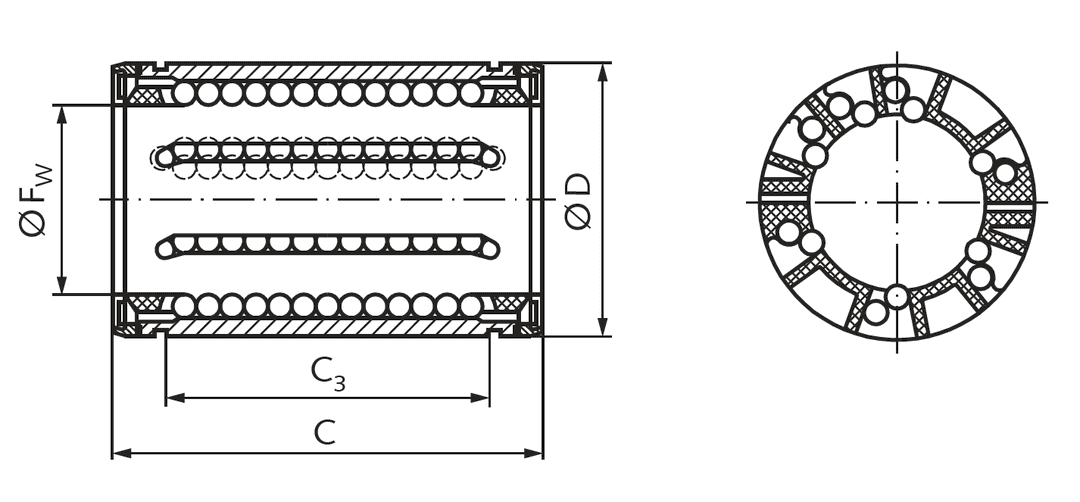

Specifications (automatically extracted)
Mechanical
| Weight | 260 g |
Other characteristics
| For shaft diameter | 40 mm |
| Length | 80 mm |
| Load rating dynamic | 6 590 N |
| Outer diameter | 62 mm |
| Static load rating | 8 230 N |
| Suitable snap ring din471 | 61 746 200 |
| Material | Plastic / Steel |
| Surface | Blank |
Description
Linear bearings from reliable brand in good qquality. Our Easy-Line bushes with swimming seals are very light running. These linear bearings can be fitted inside a customer´s housing or as spare parts for our closed Easy-Line units. With wiping lip seals. These bearings are self-aligning up to +/- 0,5°. All bearings must be lubricated before use. Recommended shaft tolerance h6, housing tolerance H6.
