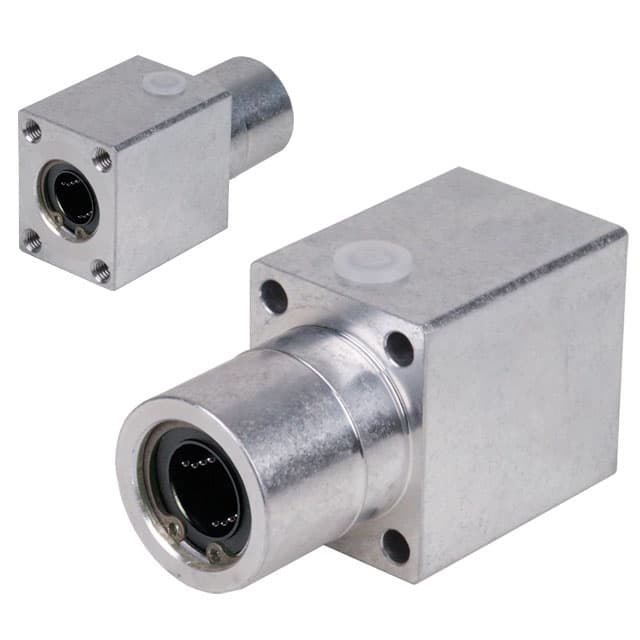

Linear bearing unit KG-3-FTST ISO series 3 with linear ball bearings with steel jacket with seals for shaft Ø 20mm
Manufacturer part no. 64672007S
$136.91≈ 118.50 €
Price summary
Listed by MÄDLER at €118.50. Delivered to France, including shipping, VAT and any customs duty, it comes to about €160.20. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €118.50 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €26.70 |
| Total delivered | €160.20 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 550 g |
Other characteristics
| A | 104 mm |
| A1 | 60 mm |
| A2 | 50 mm |
| Da | 32 mm |
| Df g7 | 42 mm |
| Fw | 20 mm |
| J1 | 45 mm |
| J2 | 35 mm |
| L1 | 60 mm |
| L2 | 50 mm |
| L3 | 27 mm |
| Load rating dyn c | 1 907 N |
| Load rating stat c0 | 2 282 N |
| N | 8.4 mm |
| T | 22 mm |
Description
Material: Housing made from extruded aluminium with two closed linear bearings of the ISO Series 3 with steel jacket and plastic cage. All bearings are sealed on both sides and lubricated ready for installation. Recommended shaft tolerance h6.
