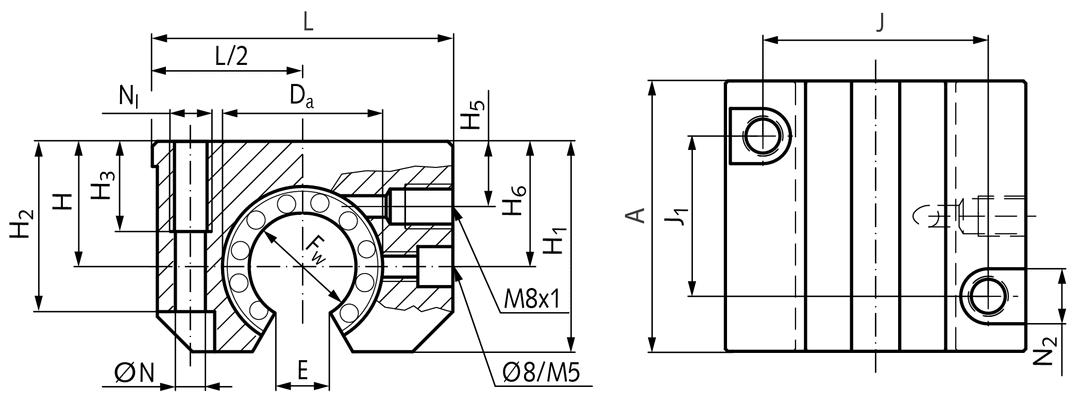

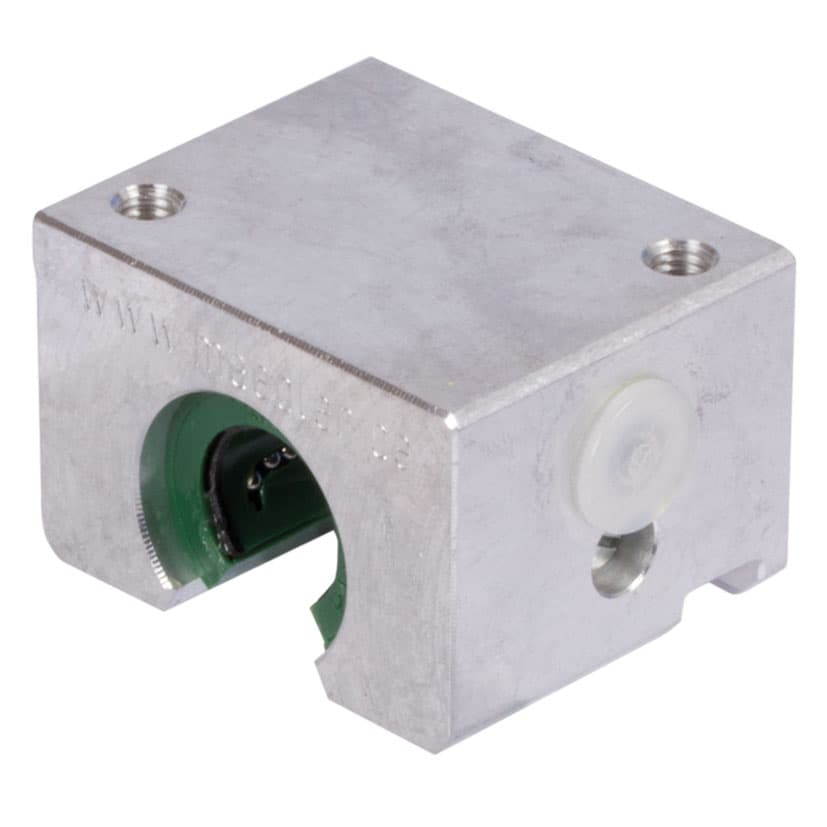

Linear bearing unit KG-3-O ISO series 3 Easy-Line with self-aligning linear ball bearing with seals for shaft Ø 25mm open design
Manufacturer part no. 64672503
$184.08≈ 159.86 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €159.86 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €34.97 |
| Total delivered | €209.83 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 570 g |
Other characteristics
| For shaft diameter | 25 mm |
| Height | 51 mm |
| Length | 67 mm |
| Load rating dynamic | 3 780 N |
| Static load rating | 4 720 N |
| Width | 78 mm |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Material: Housing made from extruded aluminium with an open linear bearing of the ISO Series 3 from reliable brand in good quality. Our Easy-Line bushes with swimming seals are very light running. Self-aligning capability that accommodates tilting. With seals. All bearings are lubricated ready-to-install. Recommended shaft tolerance h6.
