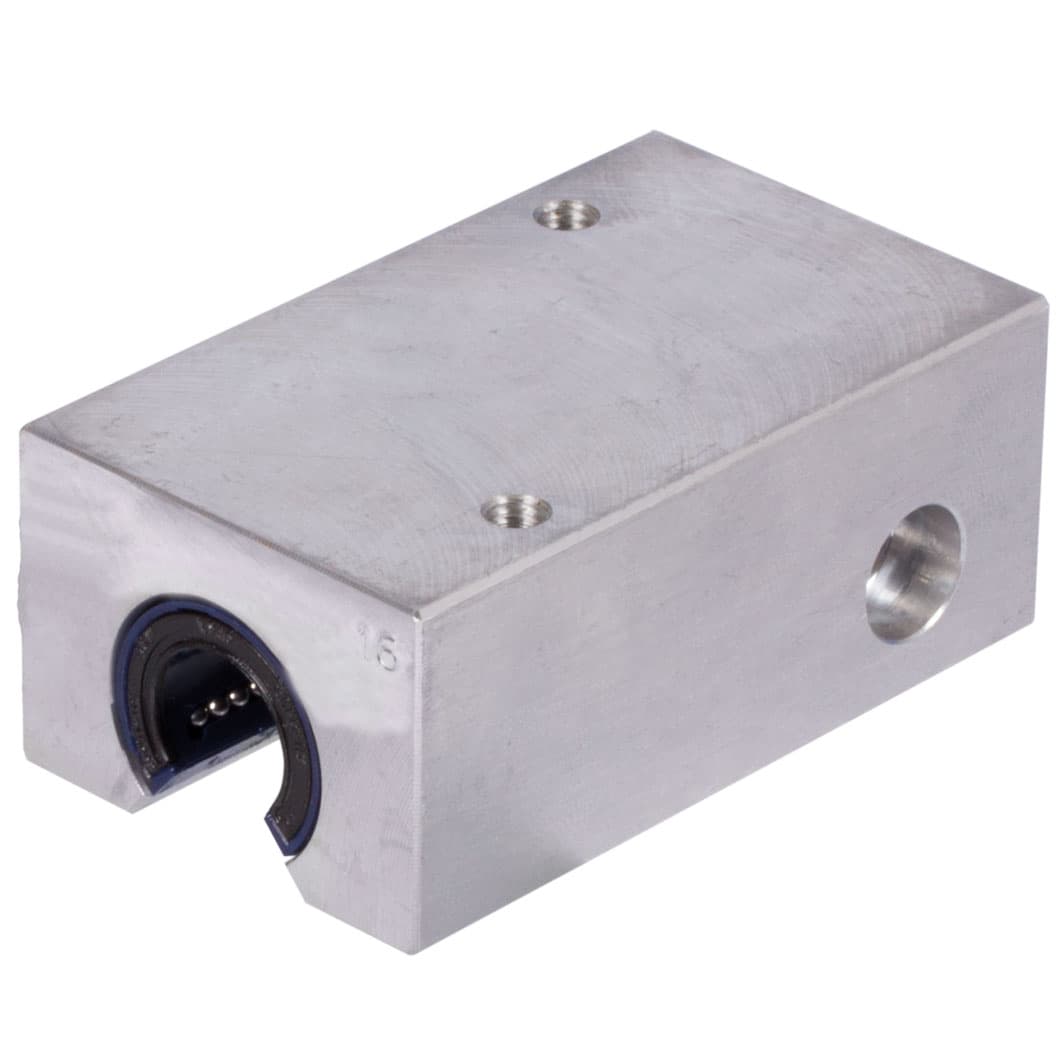

Open Tandem linear-bearing unit KGT-3-O ISO series 3 premium with linear ball bearings with angular compensation with double rubber seal for shaft Ø 40mm
Manufacturer part no. 64684001
$816.39≈ 708.98 €
Price summary
Listed by MÄDLER at €708.98. Delivered to France, including shipping, VAT and any customs duty, it comes to about €868.78. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €708.98 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €144.80 |
| Total delivered | €868.78 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.81 kg |
Other characteristics
| For shaft diameter | 40 mm |
| Height | 77 mm |
| Length | 176 mm |
| Load rating dynamic | 12 700 N |
| Static load rating | 10 400 N |
| Width | 108 mm |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Housing made from extruded aluminium with two open linear bearings of the ISO Series 3 from premium brand in top quality, with self-aligning capability that accommodates tilting and double-lip seals. Lubricated ready-to-install. Recommended shaft tolerance h6. Spare linear bearing (that accommodates tilting) on request. * when mounting from the bottom side choose the next smaller screw size.
