MÄDLERMÄDLER· Mechanics & transmission

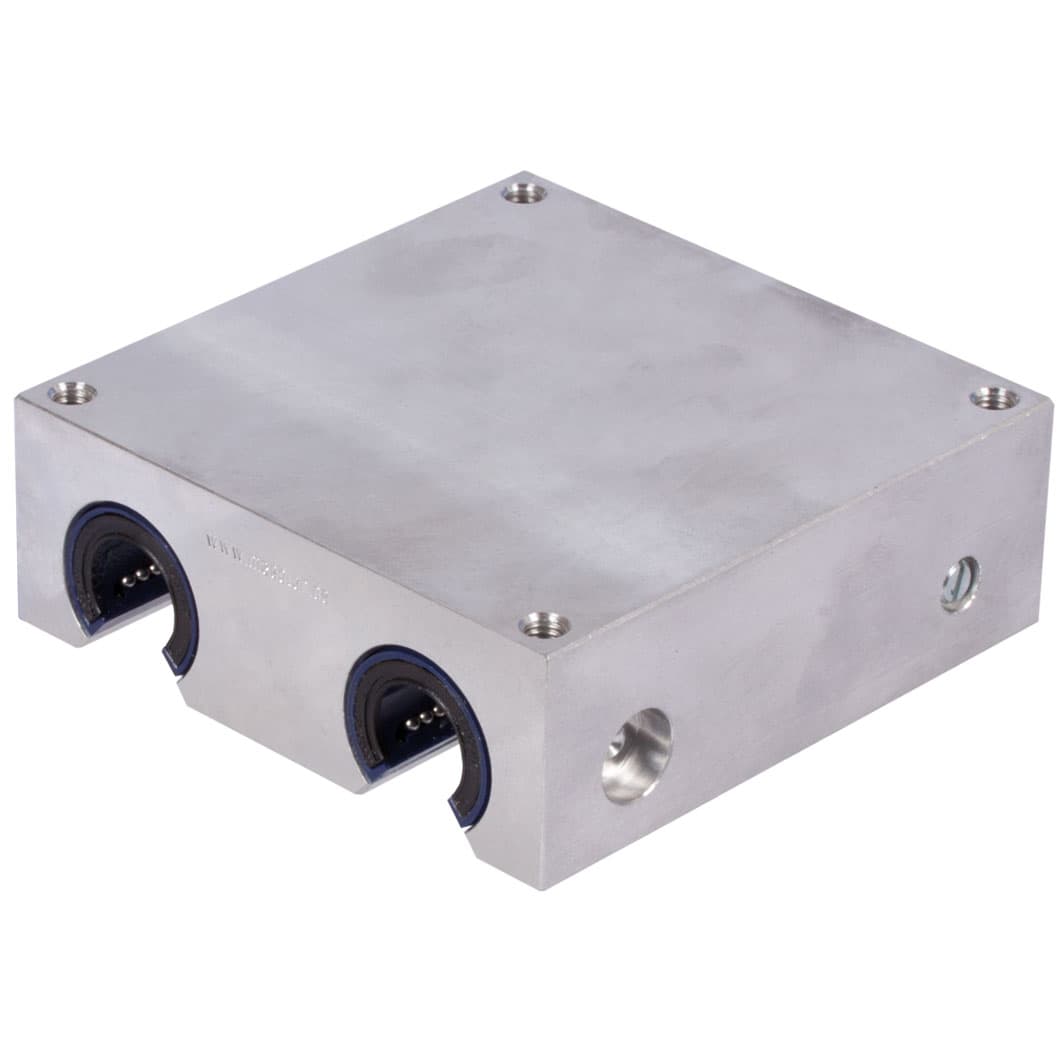

Open quadro linear bearing unit KGQ-3-O ISO series 3 premium with linear ball bearings with angular compensation with double rubber seal for shaft Ø 25mm
Manufacturer part no. 64692501
$1265.70≈ 1099.17 €
Price summary
Listed by MÄDLER at €1099.17. Delivered to France, including shipping, VAT and any customs duty, it comes to about €1337.00. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €1099.17 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €222.83 |
| Total delivered | €1337.00 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.572 kg |
Other characteristics
| For shaft diameter | 25 mm |
| Height | 51 mm |
| Length x width | 160 mm |
| Load rating dynamic | 7 650 N |
| Static load rating | 8 150 N |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Housing made from extruded aluminium with four open linear bearings of the ISO Series 3 from premium brand in top quality, with self-aligning capability that accommodates tilting and double-lip seals. Lubricated ready-to-install. Recommended shaft tolerance h6. Spare linear bearing (that accommodates tilting) on request. * when mounting from the bottom side choose the next smaller screw size.
