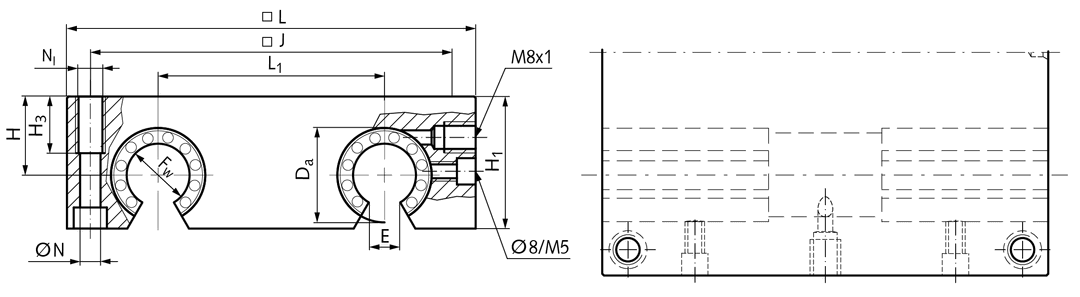

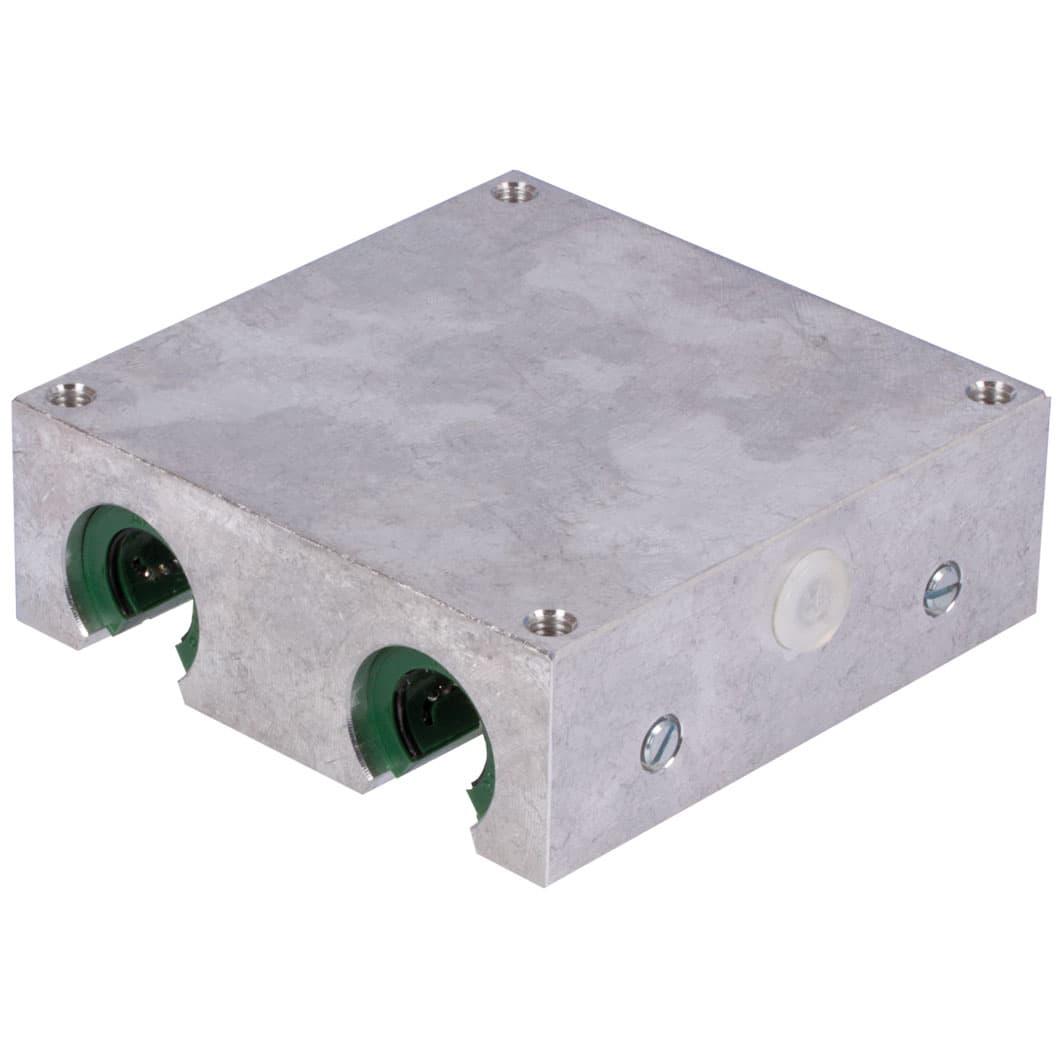

Quadro linear bearing unit KGQ-3-O ISO series 3 Easy-Line with linear ball bearings with angular compensation with seals for shaft Ø 40mm open design
Manufacturer part no. 64694003
$1396.89≈ 1209.01 €
Price summary
Listed by MÄDLER at €1209.01. Delivered to France, including shipping, VAT and any customs duty, it comes to about €1468.81. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €1209.01 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €244.80 |
| Total delivered | €1468.81 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 8.29 kg |
Other characteristics
| For shaft diameter | 40 mm |
| Height | 77 mm |
| Length x width | 230 mm |
| Load rating dynamic | 17 690 N |
| Static load rating | 32 920 N |
| Material | Aluminum / Plastic |
| Surface | Blank |
Description
Material: Material: Housing made from extruded aluminium with four open linear bearings of the ISO Series 3 from reliable brand in good quality. Our Easy-Line bushes with swimming seals are very light running. Self-aligning capability that accommodates tilting. With seals. All bearings are lubricated ready-to-install. Recommended shaft tolerance h6.
