MÄDLERMÄDLER· Mechanics & transmission

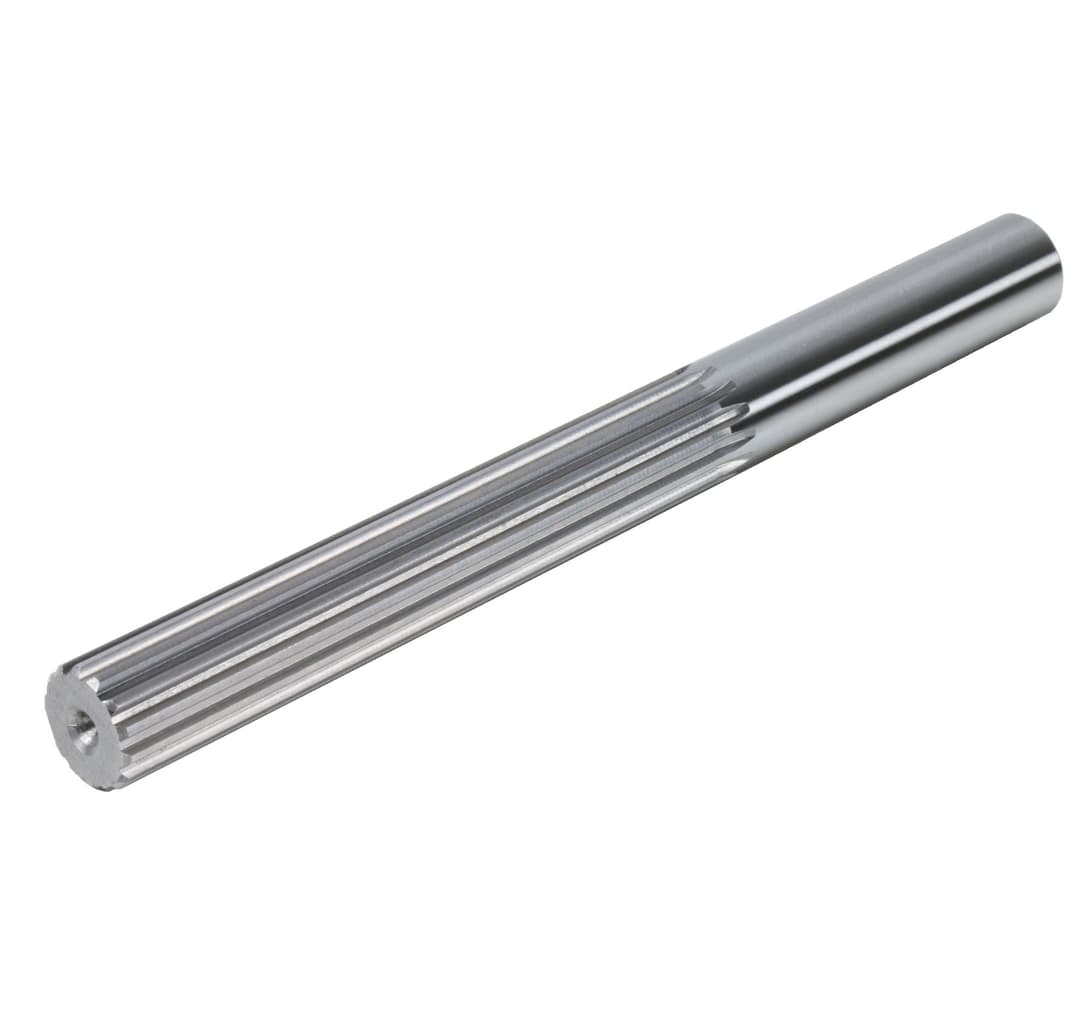

Toothed shaft DIN 5480 15 x 1,25 x 10 profile length 145mm total legth 500mm material C35 milled
Manufacturer part no. 64811511
$127.98≈ 111.14 €
Price summary
Listed by MÄDLER at €111.14. Delivered to France, including shipping, VAT and any customs duty, it comes to about €151.37. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €111.14 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €25.23 |
| Total delivered | €151.37 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 700 g |
Other characteristics
| Foot circle diameter | 12.1 mm |
| Length | 500 mm |
| No of teeth | 10 |
| Outer diameter | 14.75 mm |
| Shaftdiameter | 15 mm |
| Toothed length | 145 mm |
| Material | Steel (1035) |
| Profile | W 15 x 1.25 x 10 mm |
| Surface | Blank |
Description

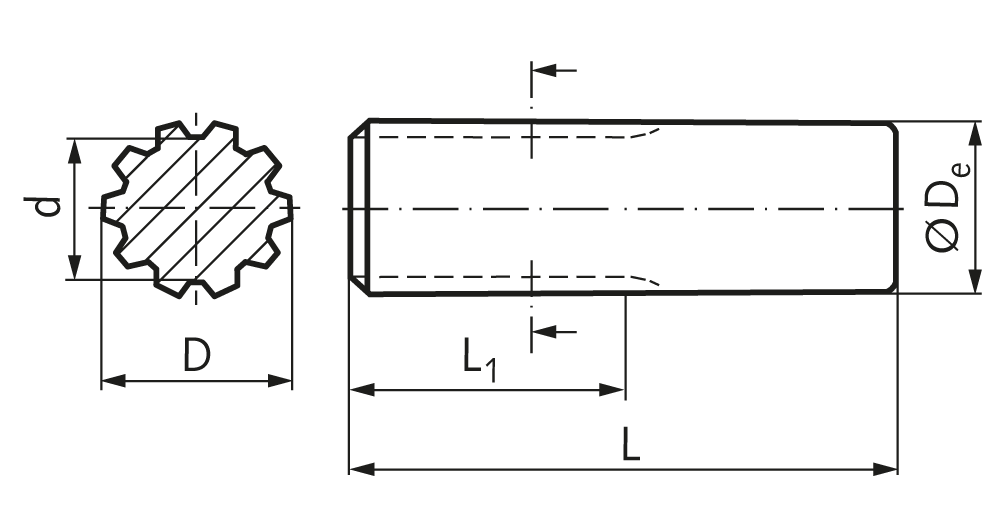

Material: steel C35K, milled. Toothed shafts with profile DIN 5480, toothed on partial length L1, with onesided solid shaft end. For shaft-to-hub connection, for torque transmission and centering. Sliding fit with our corresponding hubs and flanged hubs DIN 5480. The smooth shaft ending with diameter tolerance h6 can be used as bearing seat. Module 1.25. Pressure angle 30°. Tolerance 8f.
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
MÄDLERIn stock
Spur gear made of steel C45 without hub module 1 18 teeth tooth width 15mm outside diameter 20mm
€9.71$11.18
View at seller ↗
MÄDLERIn stock
Spur gear made of steel C45 with hub module 1.25 15 teeth tooth width 10mm outside diameter 21.25mm
€11.61$13.37
View at seller ↗
Similar products
MÄDLERBackorder
Toothed shaft DIN 5480 20 x 1,25 x 14 profile length 145mm total legth 500mm material C35 milled
€119.58$137.70
View at seller ↗MÄDLERBackorder
Toothed shaft DIN 5480 25 x 1,25 x 18 profile length 145mm total legth 500mm material C35 milled
€170.41$196.23
View at seller ↗
MÄDLERBackorder

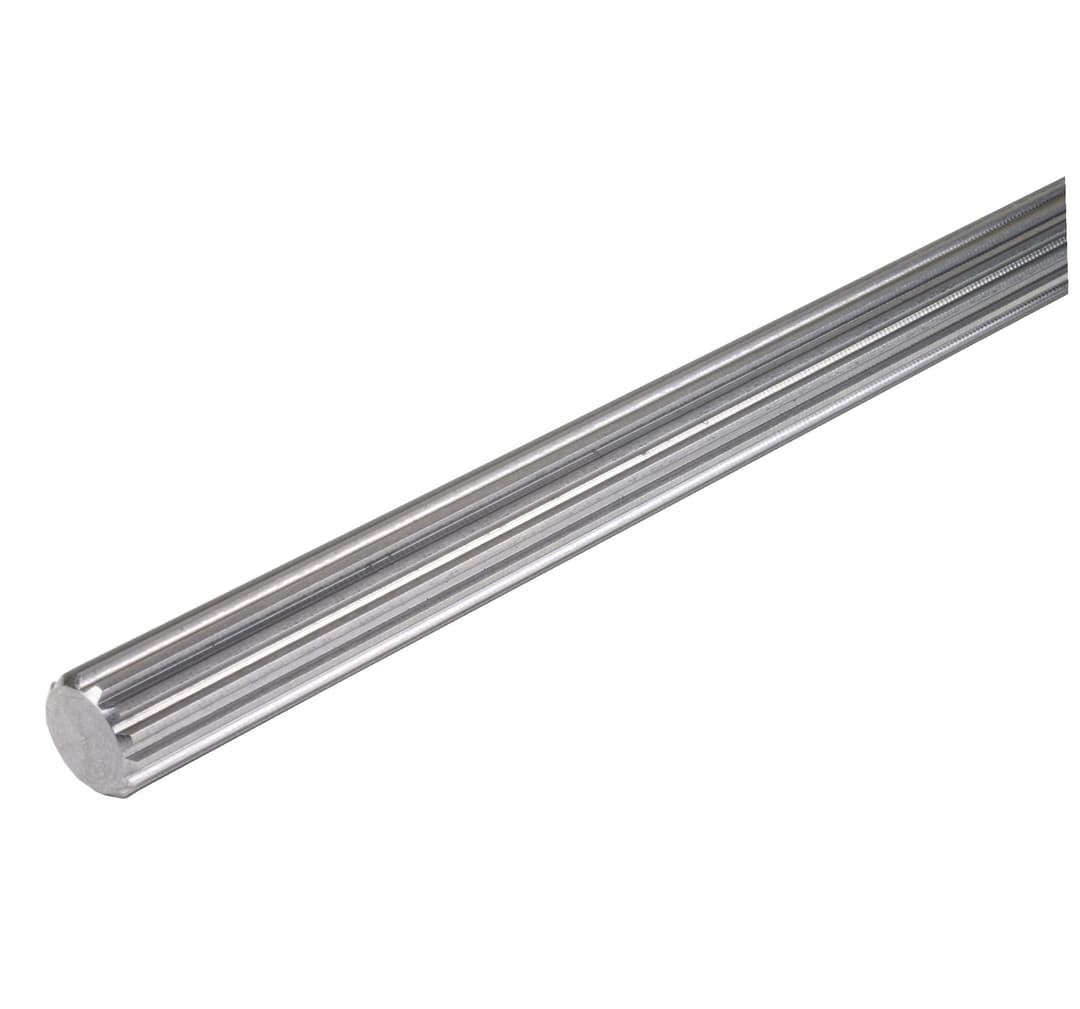

Toothed shaft DIN 5480 15 x 1,25 x 10 length 500mm material C45 milled
