MÄDLERMÄDLER· Mechanics & transmission

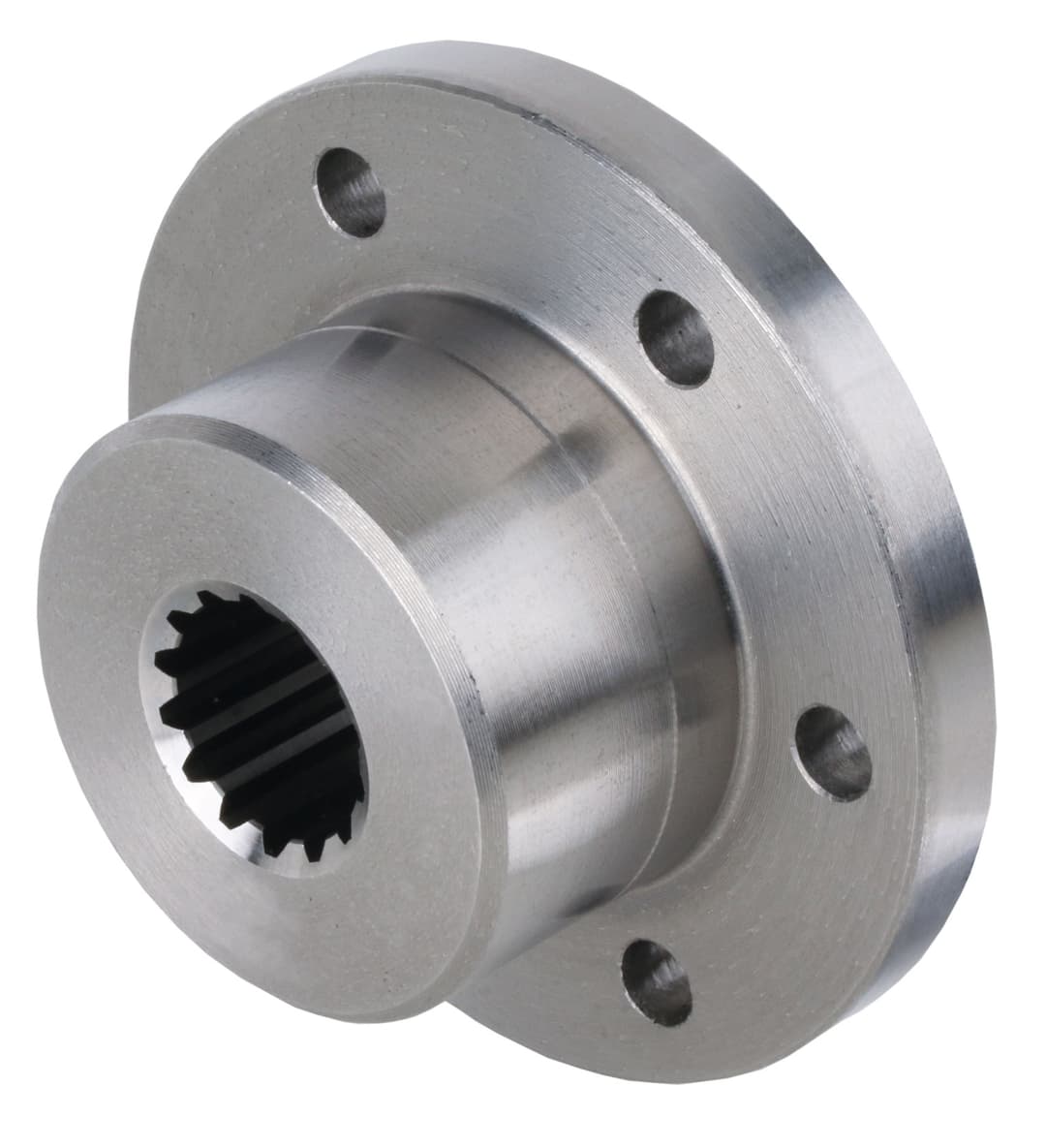

Mounting hub with profile DIN 5480 15 x 1,25 x 10 length 25mm flange diameter 58mm material C45
Manufacturer part no. 64821510
$117.54≈ 101.73 €
Price summary
Listed by MÄDLER at €101.73. Delivered to France, including shipping, VAT and any customs duty, it comes to about €140.08. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €101.73 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €23.35 |
| Total delivered | €140.08 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 200 g |
Other characteristics
| Length | 25 mm |
| No of teeth anzahl zahne | 10 |
| Material | Steel (1045) |
| Profile | N 15 x 1.25 x 10 mm |
| Surface | Blank |
Description

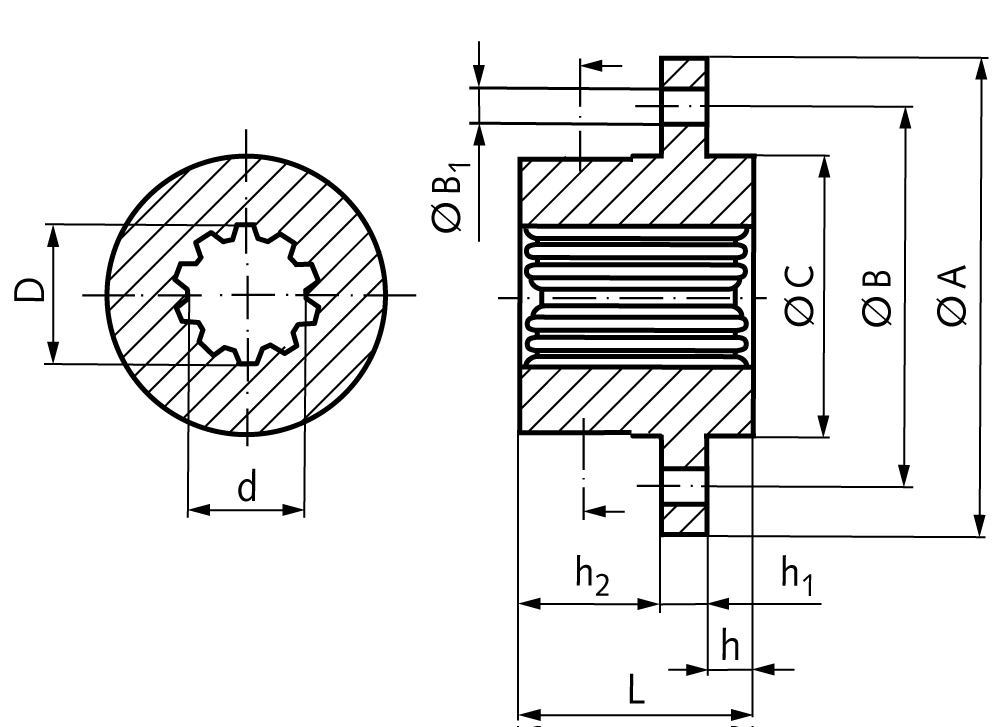

Material: Steel C45. Hub with flange, for toothed shafts profile DIN 5480. As connecting element for torque transmission and centring. Easy sliding fit with our toothed shafts profile DIN 5480. The positon of the bore holes does not refer to the toothing. Module 1.25. Pressure angle 30°. Tolerance field 9H.
